Hikvision DS-2AF7230TI-AW(B) 2MP PTZ with 30x Optical zoom, Wiper & 200m IR (BOX OPEN)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
BOX OPEN STOCK - BRAND NEW CONDITION (PACKAGING NOT IN BRAND NEW CONDITION) CALL/EMAIL FOR DETAILS

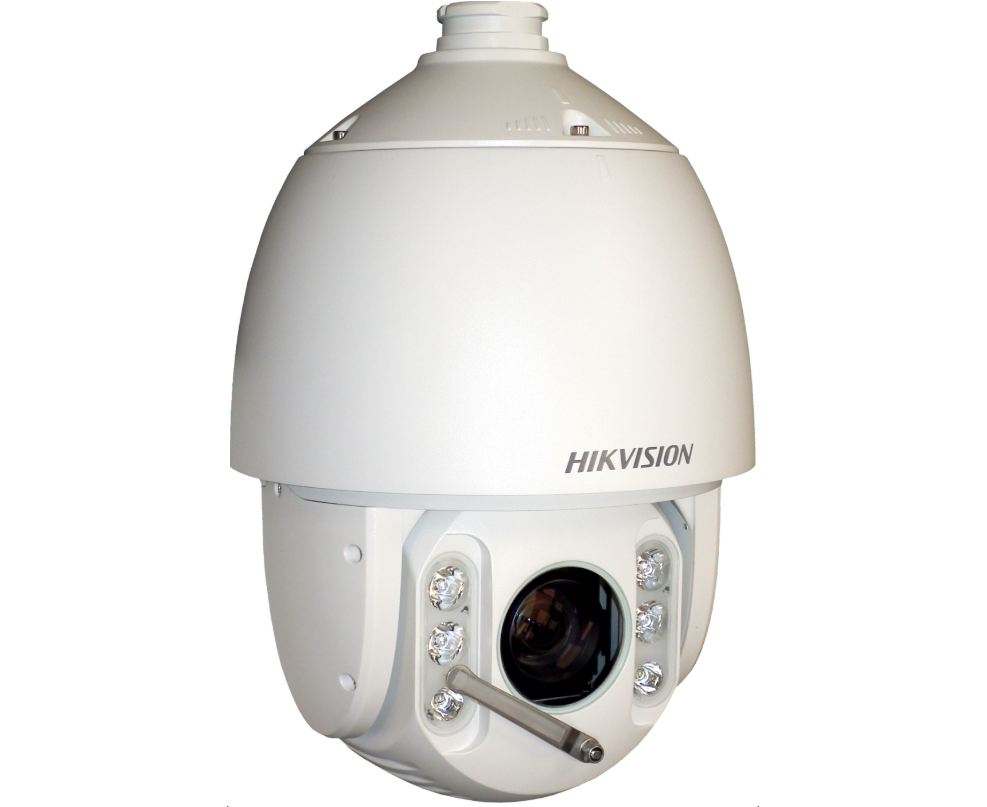

The Hikvision DS-2AF7230TI-AW, 7-Inch IR 1080p analog speed dome, adopts 1/2.8" CMOS sensor. With the 30× optical zoom lens, the camera offers more details over an expansive area. This series of camera can be widely applied to places like streets, stations, large venues, outside of residential areas, etc,.
- Full HD 1080P video output
- 2MP CMOS image sensor
- 30X optical zoom
- 4.5 - 135mm
- Up to 200m IR distance
- Wiper
- Support up the coax function on Hikvision protocol
- Supports HD-TVI & CVBS BNC output
- Privacy masking, 3D DNR
- True WDR
- Auto tracking
- 3D intelligent positioning
- True day/night
- 7 alarms in (input 7 reserved for wiper control) / 2 alarm out
- 24V AC operation
For full product specifications see the datasheet under 'PDF Downloads'.
