Hikvision DS-9664NI-M16 64 Channel 8K Ultra M-series NVR (16x HDD slots)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

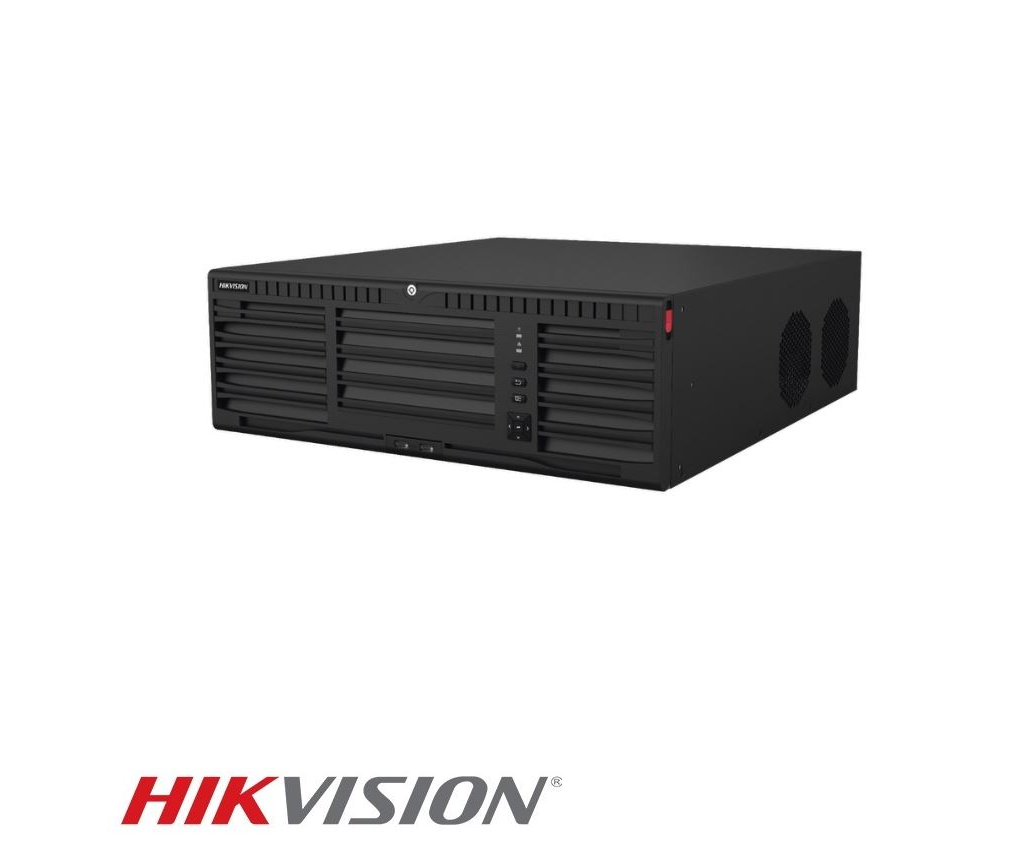

The DS-9664NI-M16 is a 64-channel Network Video Recorder (NVR), from Hikvision, with a 3U chassis design, equipped with a wide selection of interfaces (for HDD connection and Ethernet), smart functions and impressive performance specs.
As a part of the M-Series of NVRs, the DS-9664NI-M16 is designed to offer users a reliable and effective network video recorder, making its a perfect addition to any Hikvision security setup.
- 3U Chassis Design
- Up to 64-channels (IP Camera Inputs) with 16-ch synchronous playback
- Up to 32-ch@1080p Decoding Capacity
- HDMI Video Output, at up to 8K or Dual 4K Resolution
- Supports Advanced Streaming Technology - for smooth live view, even in poor network conditions
- H.265+ / H.265 / H.264+ / H.264 Video Formats
- Up to 400Mbps Incoming and Outgoing Bandwith
- 16 SATA / 1 eSATA Interfaces for HDD connection, and 2 self-adaptive 10/100/1000 Mbps Ethernet Interfaces
- Support for a range of VCA (video content analysis) Event
- Power Consumption - < 50W (without HDD)
- Supports RAID 0, 1, 5, 6, 10, and N+M hot spare - for reliable data storage, avoiding data loss risks
- Working Temperature - -10°c ~ 55°c
- Power Supply - 100 to 240V AC
