Hikvision DS-PWA96-KIT-WE 96 Zone AX PRO Wireless Alarm Starter Kit
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

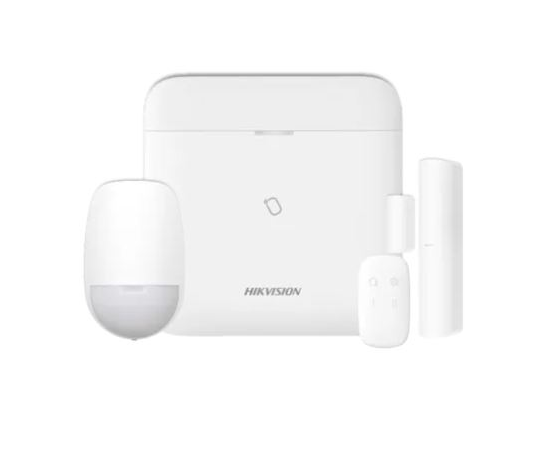

The Hikvision DS-PWA96-Kit-WE is a wireless alarm starter kit that provides everything you need to protect your home from intrusion. Part of Hikvisions new AX PRO wireless alarm series, the DS-PWA96-Kit-WE comprises of...
- 1 x DS-PWA96-M-WE wireless control panel
- 1 x DS-PKF1-WE keyfob
- 1 x DS-PDP15P-EG2-WE wireless PIR detector
- 1 x DS-PDMC-EG2-WE magnetic window/door contact
DS-PWA96-M-WE Wireless Control Panel
The DS-PWA96-M-WE Wireless Control Panel features Wi-Fi, TCP/IP and 3G/4G communication methods, can connect up to 96 wireless zones, 48 wireless keyfobs, 4 wireless repeaters, 6 wireless sounders, 8 tag readers & keypads and a Hikvision PIR Cam, and can store up to 5000 event logs.
DS-PKF1-WE Keyfob
The Hikvision DS-PKF1-WE is a wireless keyfob designed to arm and disarm the AX PRO alarm system. Featuring stay/away arming and disarming, tamper proof and a PCB protected battery, the DS-PKF1-WE is easy to configure and benefits from frequency hopping which rapidly changes the frequency used which greatly improves the reliability of the signal and prevents jamming.
DS-PDP15P-EG2-WE Wireless PIR Detector
The Hikvision DS-PDP15P-EG2-WE is a fully supervised, 2 way wireless PIR detector that features motion detection and tamper protection. It is capable of monitoring a 15 metre radius, ignoring animals and recognising human forms and features frequency hopping which rapidly changes the frequency used. This greatly improves the reliability of the signal and prevents jamming.
DS-PDMC-EG2-WE Magnetic Window/door Contact
The Hikvision DS-PDMCS-EG2-WE is a wireless opening detector that can be fitted to a door or window and will notify in the event of a room intrusion. The unobtrusive design is easily fitted to any window or door frame and once the 2 parts are separated the alarm system will sound.
Hikvision AX PRO
The Hikvision AX PRO is a new high quality wireless alarm and video system for both residential and commercial applications that is configured and controlled through the Hik-Connect smart app.
The AX PRO series has a wireless range of up to 2km and can be adapted and configured to any installation scenario with a range of PIR detectors, wireless keyfobs, panic buttons and sirens. The AX PRO series is also compatible with Hikvision CCTV cameras and the whole system can be viewed and controlled remotely through the smartphone app.
Features:
- Wireless alarm kit comprising of a wireless control panel, a PIR Detector, a Keyfob and a window/door contact
- Wi-Fi, TCP/IP and 3G/4G communication methods
- can connect up to 96 wireless zones, 48 wireless keyfobs, 4 wireless repeaters, 6 wireless sounders, 8 tag readers & keypads and PIR CAM
- Stores up to 5000 event logs
- New generation wireless protocol: Tri-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views life videos from Hik-Connect
- Alarm video clips via emails and APP
- Uploads alarm reports to ARC
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
