Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

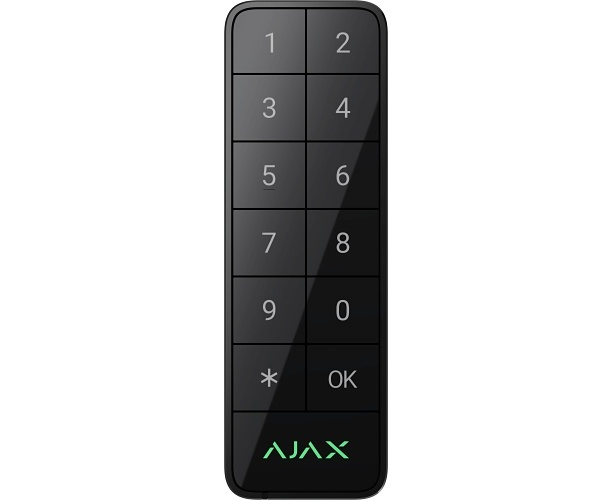

Superior KeyPad Outdoor Fibra
Wired keypad supporting authentication via Pass, Tag, smartphones, and codes. For outdoor and indoor use.
Control your space, rain or shine
Meet the all-weather key to security and automation. Control security modes, activate Night Mode, manage specific groups, and run scenarios with one keypad. Use classic passcodes or go contactless. The ultra-narrow enclosure fits anywhere and still has big, glove-friendly mechanical buttons with sleek feedback. The durable enclosure is built to withstand any operating conditions and maintain full functionality even after being hit or physically damaged. Uncompromisingly secure keypad that gives intruders a hard time to hack it open.
Easily manage the security of an entire site, separate groups, or activate Night Mode using just one device. It additionally features a Function button, which can be configured as a panic button or to mute fire alarms. KeyPad Outdoor can also operate in bypass mode: it starts an entry delay for users to confirm the security mode change via the main keypad, for example, with another Ajax keypad installed inside the facility.
- Security management of an entire site or separate groups
- Night Mode activation
- Bypass mode to start an entry delay to confirm a security mode change
Fast and secure authentication
There are three easy ways to control the keypad, giving users the flexibility to choose what suits them best. Ajax apps display all events, including user activity and authentication details.
Contactless access devices
Pass and Tag are equipped with original DESFire® chips and share the same functionality but in a different shape of enclosures. One Tag or Pass can control up to 13 security systems. Access devices are sold separately in batches of 3, 10, or 100 pieces.
Remote access control
Change access rights and codes in real time via the Ajax apps. Lost access devices and compromised codes can be remotely altered within minutes. An installer doesn’t need to visit the facility.
Access for unregistered users
With a simple assignment in the hub settings, a PRO can create a temporary access code for office employees, cleaning company staff, or other verified visitors.
Unique wired technology
Fibra is Ajax’s proprietary technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.
