MAXHUB MT61N (i5+8G+128G) Windows PC module for Classic/ViewPro/ Transcend series
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

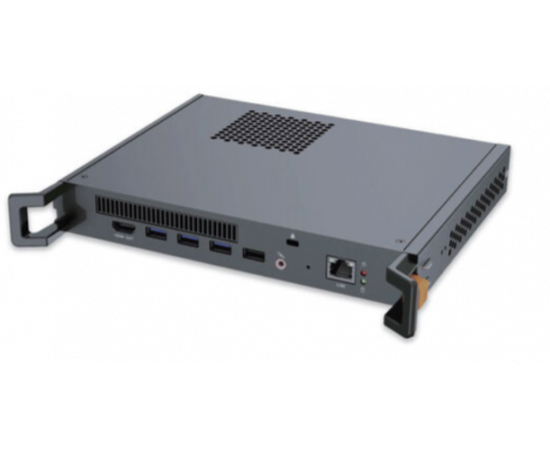

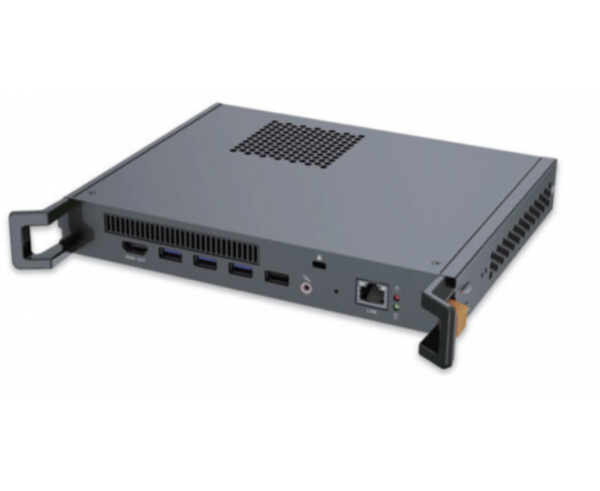

MAXHUB MT61N (I5+8G+128G) Windows PC module for Classic/ViewPro/ Transcend series
The MAXHUB MT61-i5 Windows PC Modules are the 'brains' and a powerful addition to your MAXHUB V6 Classic, ViewPro or Transcend Series of Interactive Flat Panels. To ensure your MAXHUB IFP is performing in line with the specifications promoted to market, a Windows PC or Android Module must be purchased and installed into each panel in the V6 Corporate range (Classic/ViewPro/Transcend). The Windows PC Module is also essential to drive your chosen Video Conferencing Platform such as Microsoft Teams, ZOOM, Skype, Cisco Webex, etc.
As this is a Windows PC based Module it can also be used through the Panel in usual Windows Interface that most people would use to navigate their current PC or Laptop, making it even easier to use. The 10th Generation Intel Core i5 processors provides a fast and responsive experience, whether you're working on a demanding project, streaming HD video, or presenting in a meeting. Along with 8Gb of RAM/128Gb SSD Hard Drive on i5 Module, you can choose the correct module in line with the level of resource hungry applications your business will be using on or through the Panel. The relevant Hard Drives also provide plenty of storage space for your files, photos, videos, and more.
Plus, it's faster than a traditional hard drive, so you can access your files quickly and easily. Both variants are pre-installed with Win 10 IOT (64bit) and the Core UHD Graphics provides great visuals for your presentations. Both of these Windows PC Modules also features 3 x USB 3.0 and 1 x USB 2.0 USB Ports, 1 x RJ45 Gigabit LAN port, 1 x HDMI out port, 1 x Mic in and a Kensington Security Lock Slot.
