Nice HykeKit1 24v double leaf articulated kit for gates up to 3.5m per leaf
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
ADDITIONAL INFORMATION
Quality and durability thanks to the housing in aluminium with polyester paint finish, resistant to atmospheric agents.
Ultra-powerful and delicate: thanks to the torque of 500 Nm and encoder technology, for millimetric precision and reliability. Safety in movement with dual technology obstacle detection.
On opening and closing: with built-in control unit (HK7024) and without control unit (HK7224)

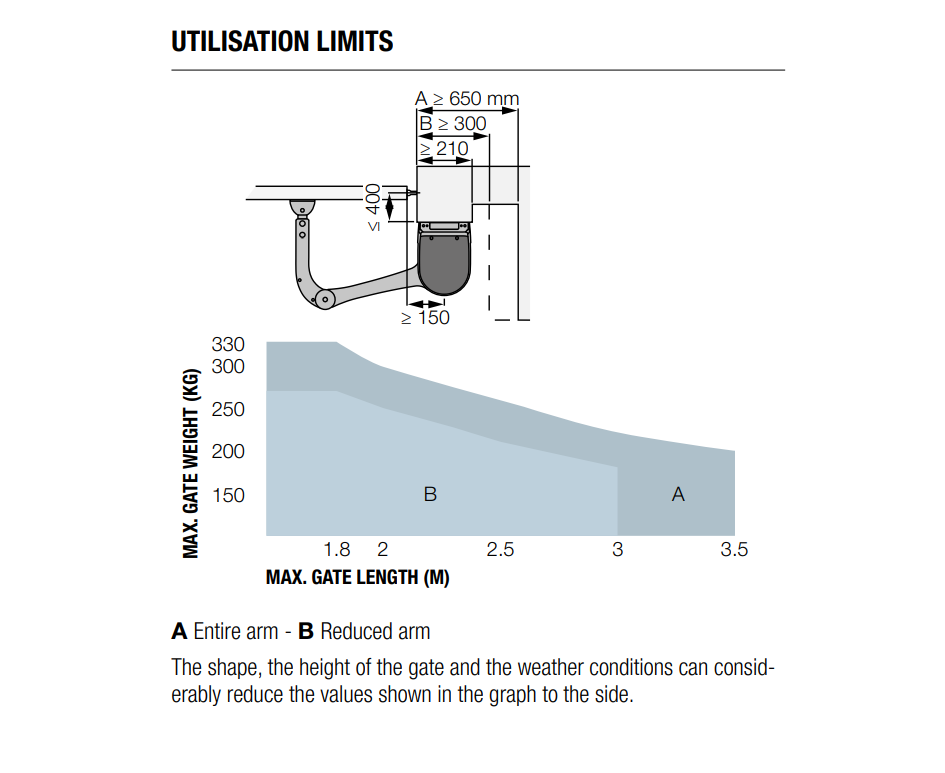

Practical and quick installation: the articulated arm is adjustable in length for maximum flexibility.
Simple and precise limit switch adjustment: mechanical stops and micrometric adjustment screws.
Easy to operate release lever, with metal lock and personalised Nice key. With provision for cable control.
Savings, respect for the environment, and autonomy: when connected to the buffer battery or Solemyo kit, consumption on standby is just 0.1 W.
No black out: with the optional batteries (PS124) housed inside the gear motor.
Built-in control unit (HK7024):
• simple programming via a single key;
• self-learning of opening and closing limit positions;
• automatic fault diagnostics;
• pause time programming;
• pass door;
• deceleration on opening and closing;
• obstacle detection with dual technology;
• provision for connection of latest generation sensitive edges.

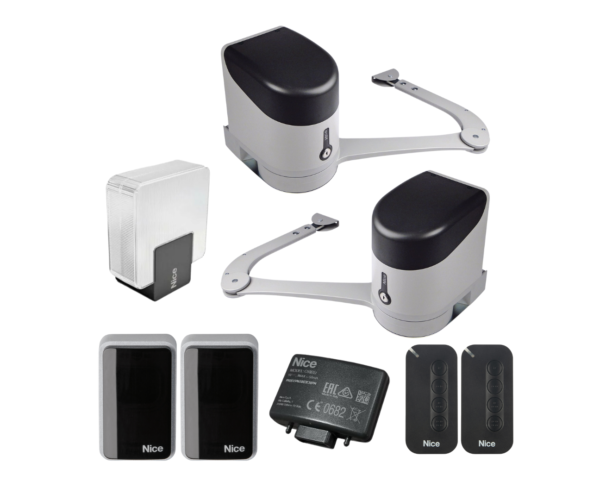

This kit contains:
- 1 x HK7024
Irreversible Articulated Arm Electromechanical Gear Motors With Inbuilt Control Panel
- 1 x HK7224
Irreversible Articulated Arm Electromechanical Gear Motors
- 2 x MYGO4
4 Channel Transmitters
- 1 x MC824H
Control Panel
- 1 x Pair
EPMB Photocells
- 1 x OXIBD
Receiver
- 1 x ELDC
24v flashing light
