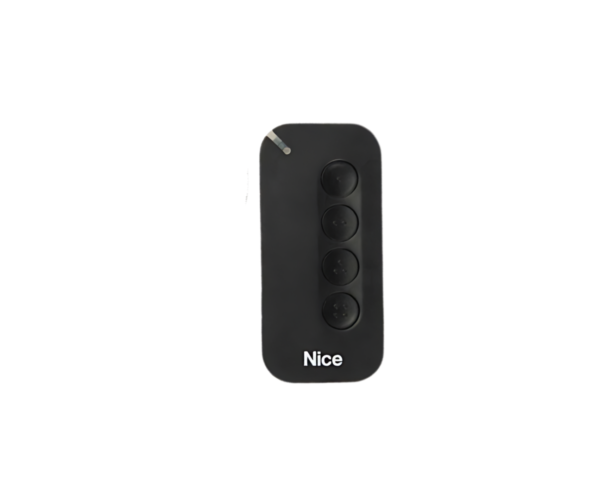

Nice Logo Nice MYGO4 4 Channel transmitter
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
The MYGO transmitter has a secret code, the so-called “ENABLING CODE”. By transferring the programmed code from a memorised transmitter to a new transmitter, the new transmitter is recognised (and memorised) automatically by the receiver.
MYGO transmitters operate by default with the Unidirectional “O-Code” radio encoding system. To satisfy backward-compatibility requirements, MYGO transmitters can operate with the ET Blue, Piccinin and Linear encoding systems.
Low battery warning via red flashes of the info LED during transmission. Available in bi-directional version as well: 2, 4 and 8 buttons depending on customer needs.
By programming in Mode 1 according to the manual, this allows you to memorise all the transmitter keys, at once, in the receiver. The 1 to 4 keys are automatically associated to each control managed by the Control Unit according to a factory-set sequence
By programming each button individually more options are available for controlling the gate:
SBS (Step by Step) function - Press button 1 once to open the gate, press button 1 again to stop the gate, Press button 1 again to close the gate
Partial - Press button 2 which partially opens the gate for a pedestrian rather than fully opening the gate
Open & Block function - Press button 3 to open and latch the gate in an open position so it will not automatically close, ideal for opening during business hours, allow visitors at certain times and free access.
Unlock function - Press button 4 to unlatch the gate and close
