Double Electric Gate Automation Kit
Features Steel cut gears for long life, maintenance free motors.
Electro-mechanical reduction gear for swing gates up to 400kg. The sturdy diecast aluminium housing has been structurally designed to withstand the high forces involved. When installed it is totally concealed inside the foundation box.
The kit uses a hot dipped, galvanised foundation box with internal opening and closing limit switches.
Underground Electic Gate Kit - BR21/353/HS
Electric Gate Motor Included - BR21/351/HS
Foundation Box Included - FU100 Cold Galvanised Box

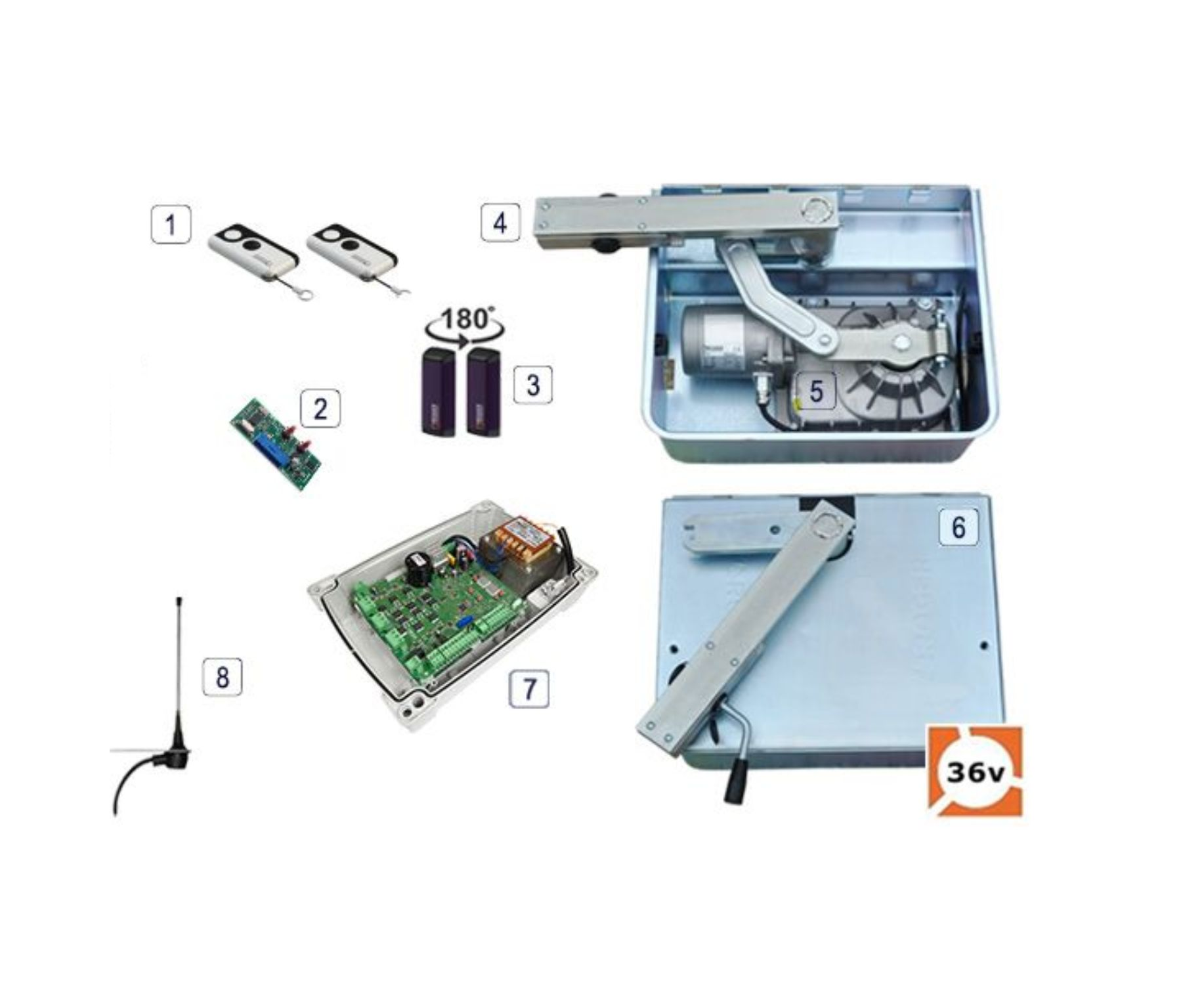

Electric Gate Kit Contents

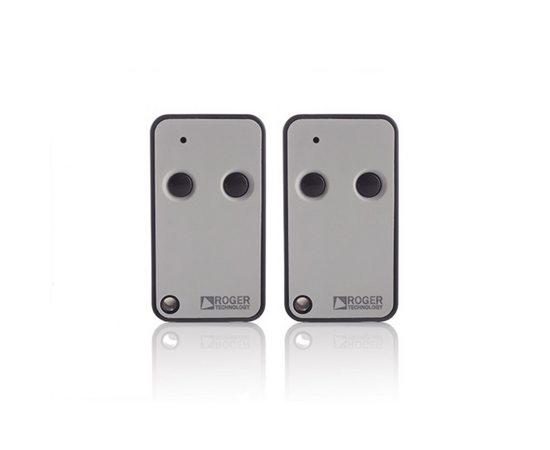

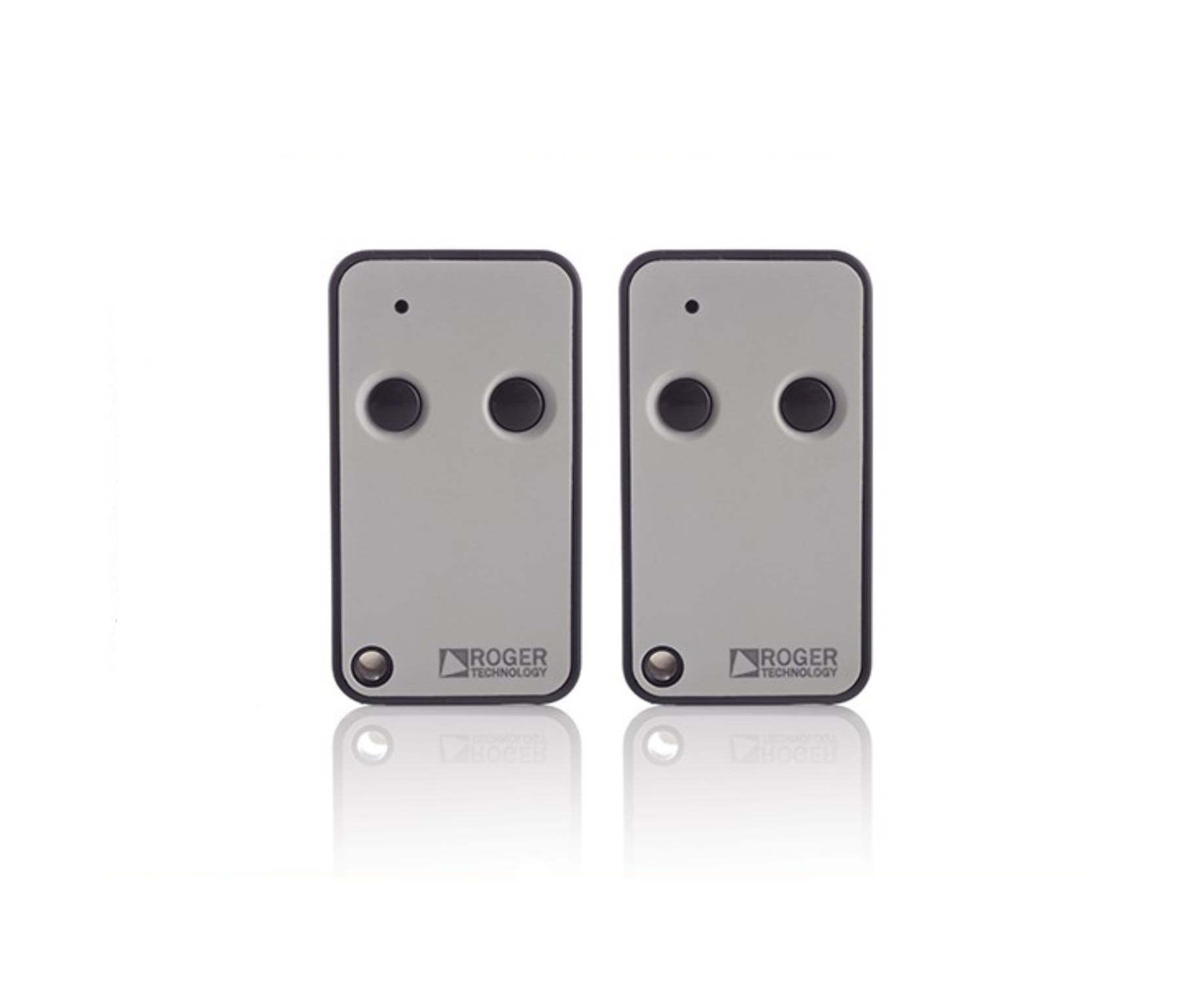

[1] SYNUS Remote Controls (x2)

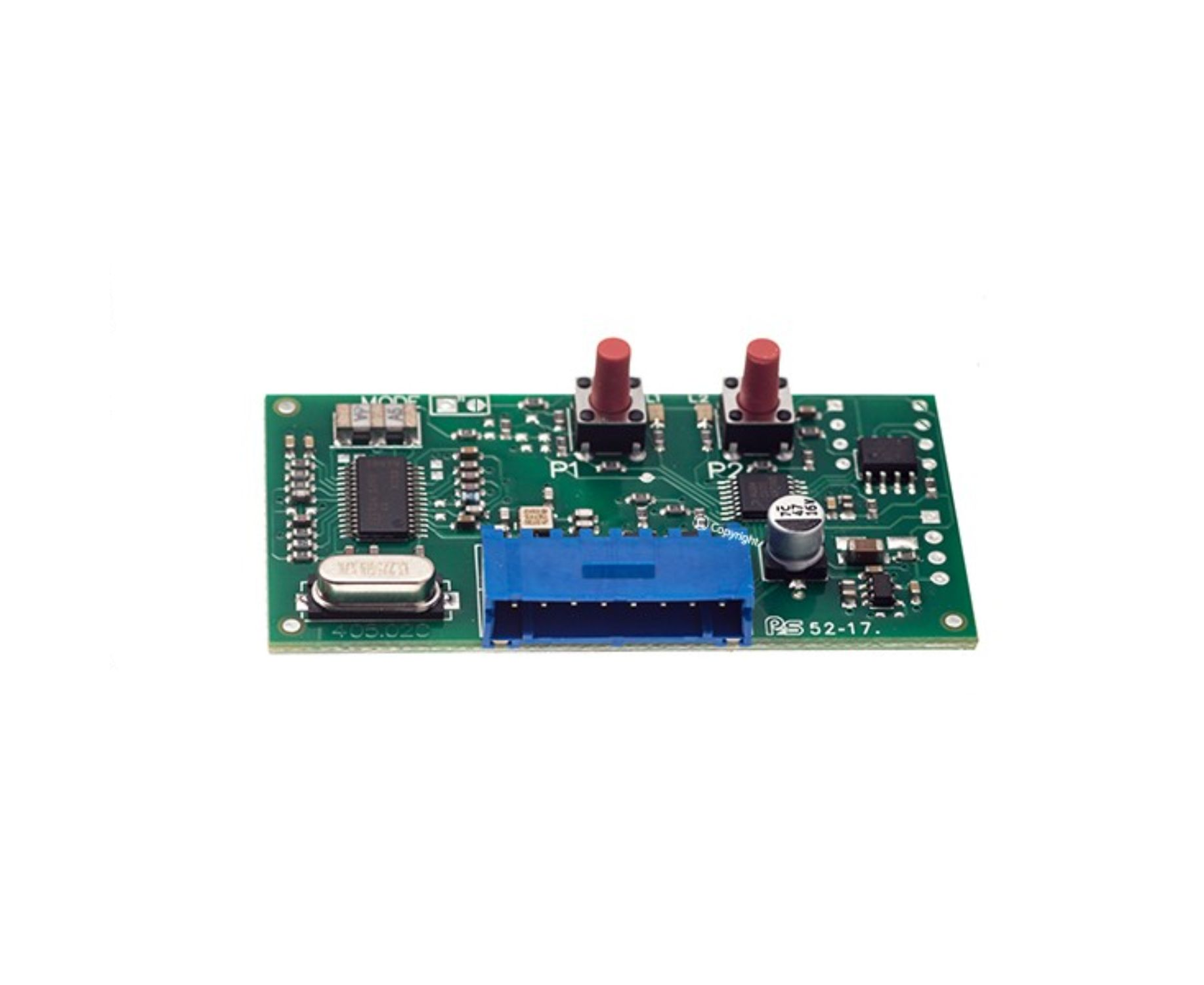

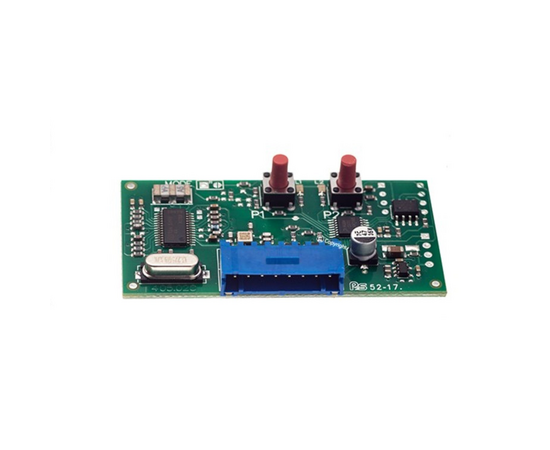

[2] H93 Receiver

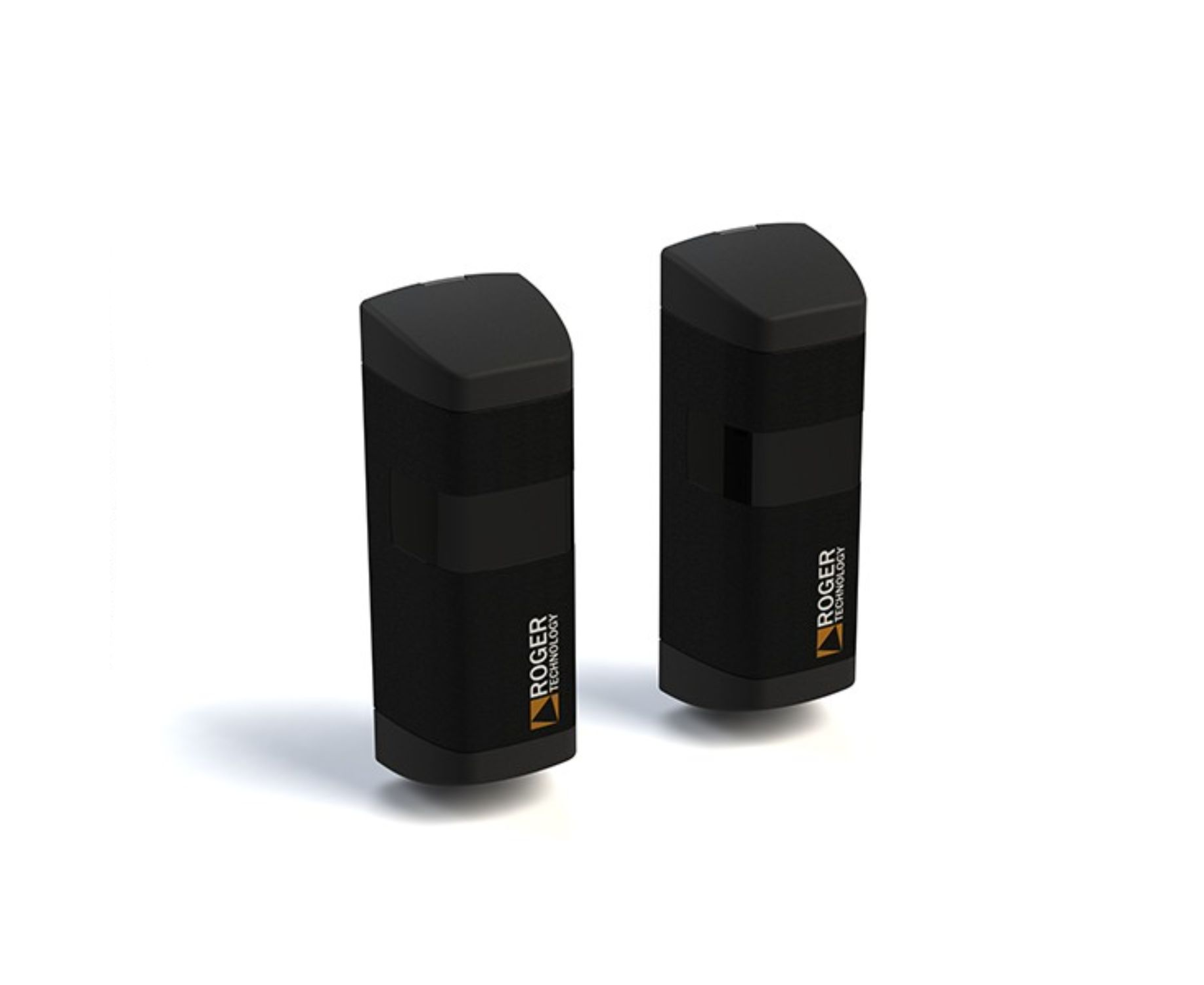

[3] Pair of M90 Safety Photocells
[4] RL650 Release Mechanism

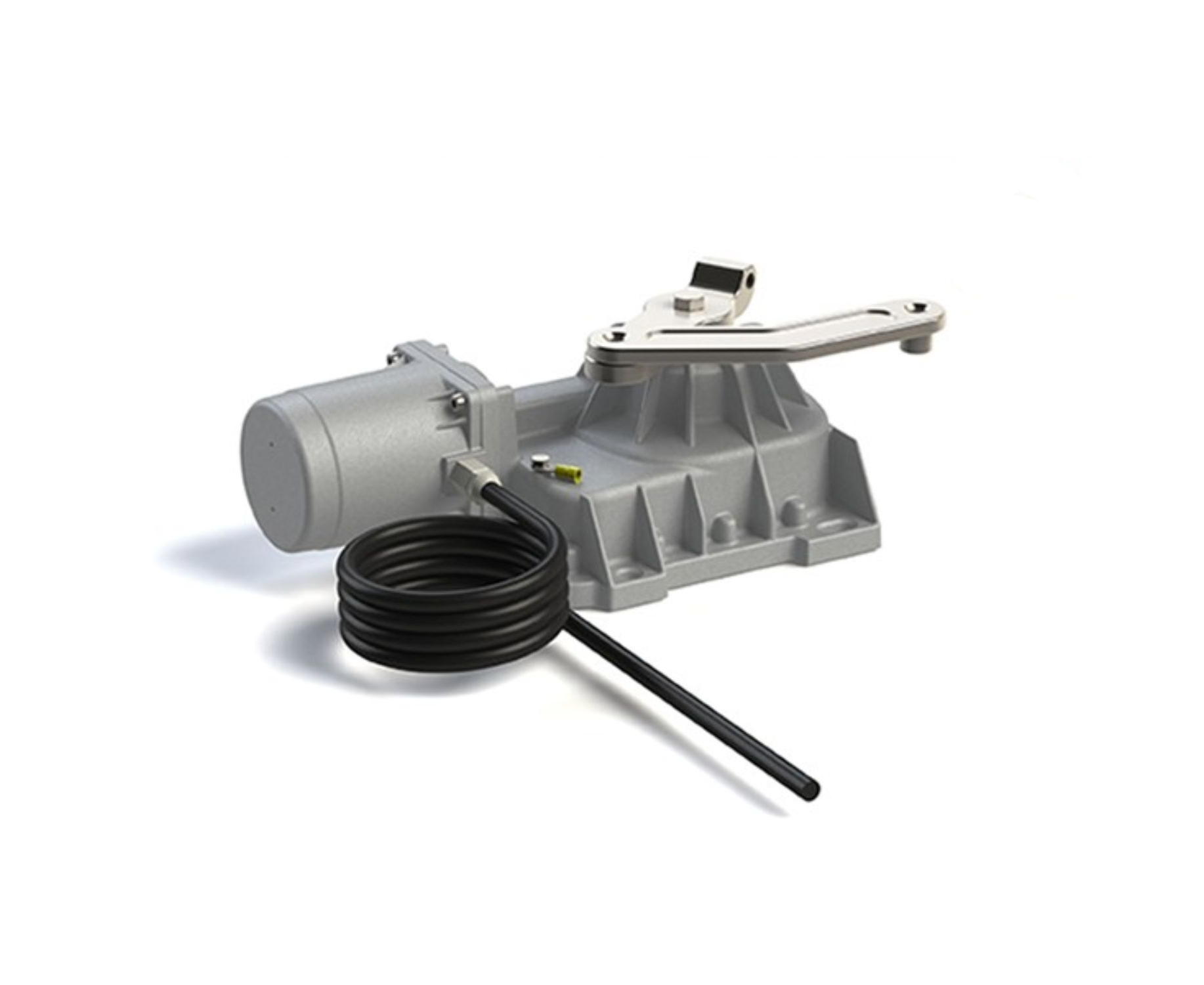

[5] BR21/351/HS 36v Motor (x2)
[6] FU100 heavy duty foundation box

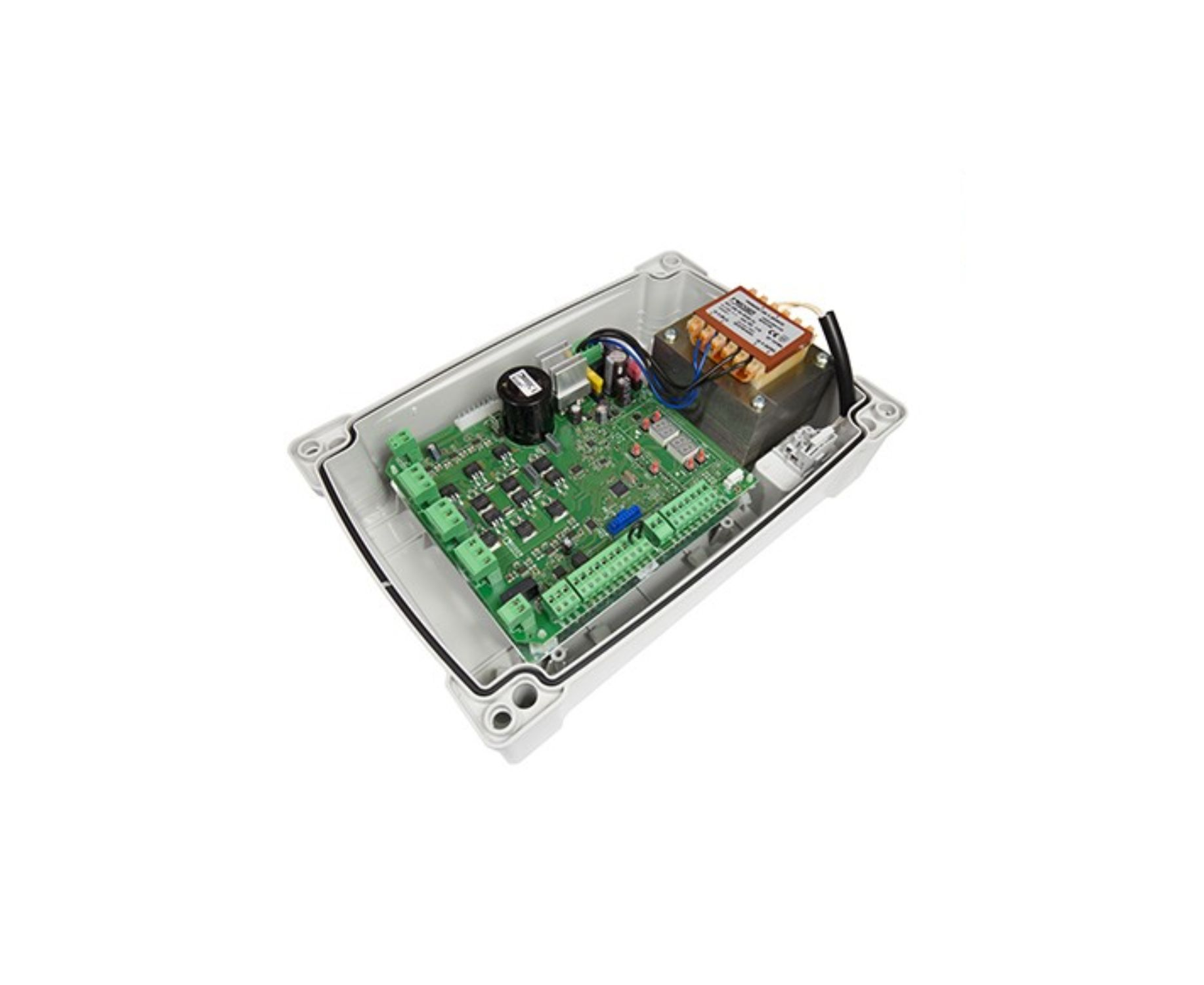

[7] EDGE 1 Brushless 36V Controller
[8] Aerial/Antenna
Important
A mains filter should be fitted on the supply to the control panel.
It reduces mains interference and prolongs the life of the PCB.
