Double Electric Gate Automation Kit
BE20/410 Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 3.25m length, with mechanical stopper in opening and closing.

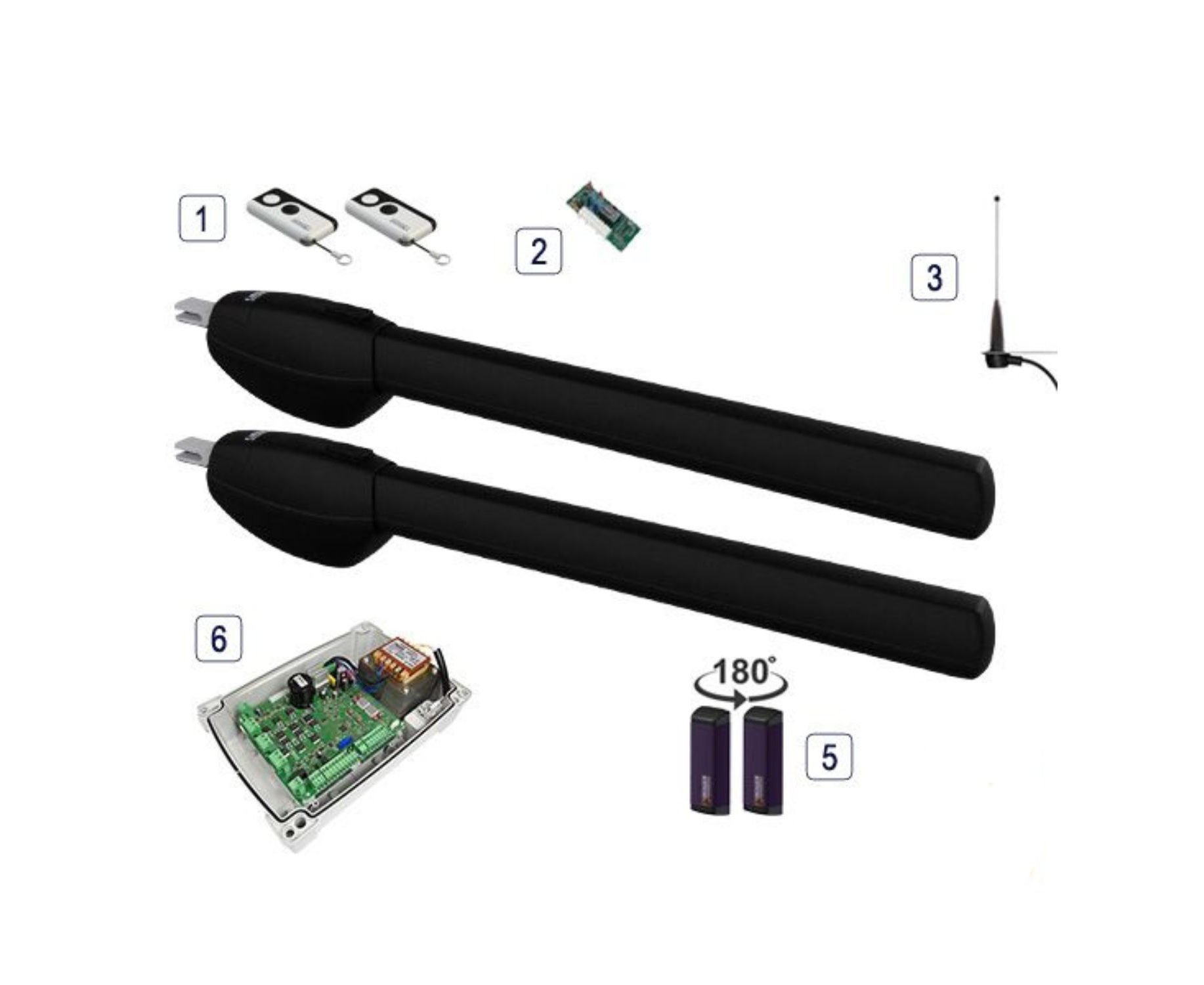

Electric Gate Kit Contents
[1] SYNUS Remote Control (x2)
[2] H93 Receiver Module
[3] Aerial/Antenna
[4] BE20/400 36v Super Intensive Motor (Black Edition) (x2)
[5] 180° Roger Technology M90 Photocells
[6] Edge 1 36v Brushless Controller

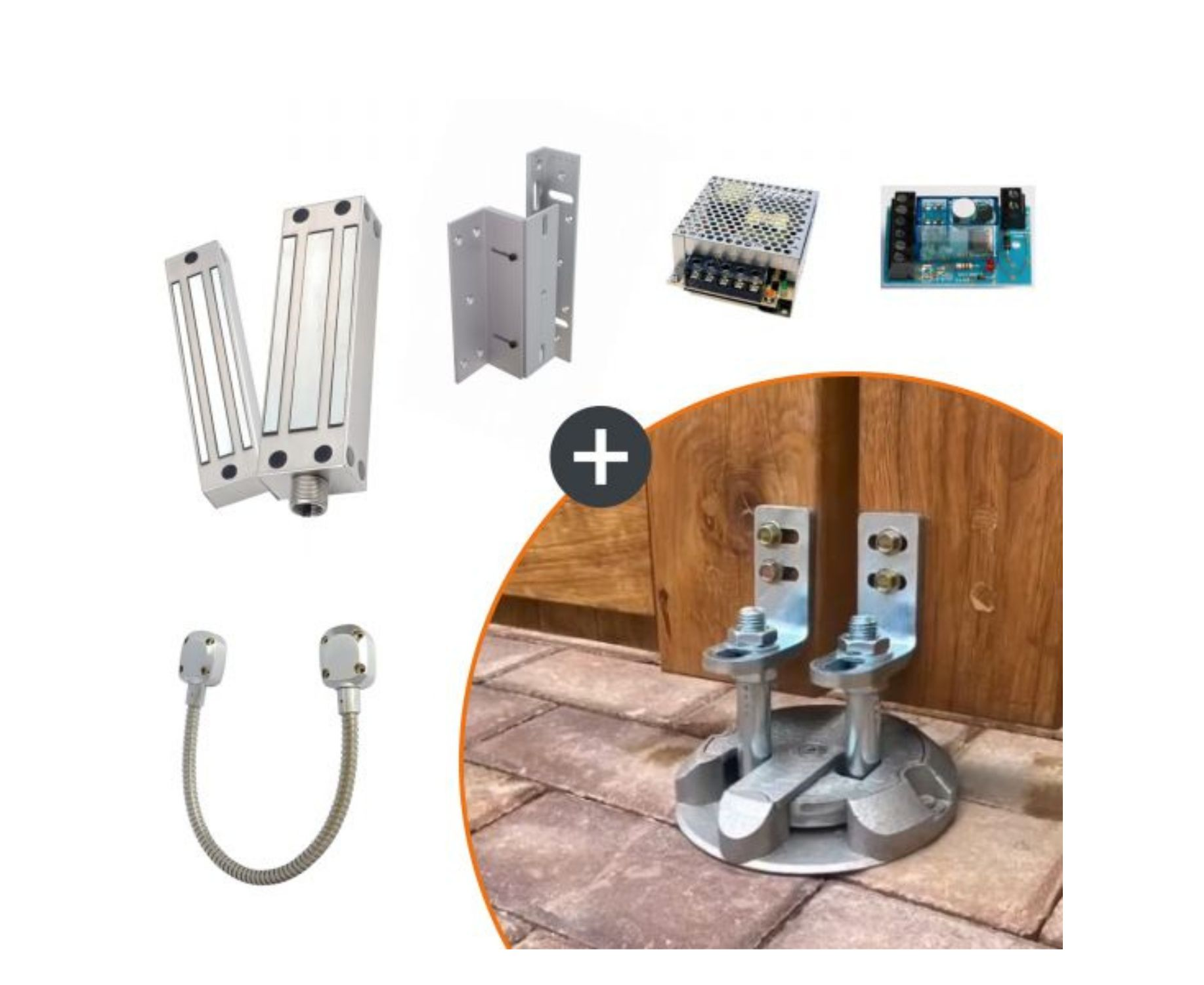

Optional Extras:
Double Gate Magnetic Lock Kit [A]
Interlocking floor device (left or right)
Adjustable pin and bracket kit (8mm Bracket)
Door Loop
250kg Maglock
Z & L Bracket
VHLR - Relay
2.5amp Lock Power Supply
Electric Motor Features
Super Intensive Use: Capable of running non-stop.

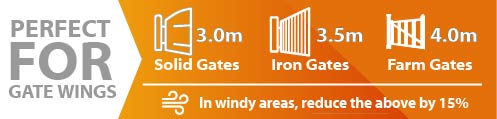

Ideal: For swing gates up to 3.75m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.
Technical Specifications:
Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 200W
Frequency of use: Intensive use
Thrust: 100 - 2800N
Operating temperature: -20 C° +55 C°
Protection level: IP43
Reductor Type: Irreversible
Manoeuvre speed: 1,66 cm/s
Opening time at 90°: 17-26 s
Stroke: 550 mm
Limit switch: Mechanical stopper in opening and closing
Encoder: Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours no stop): 1000
Maximum dimension product in mm (L x W x H): 1019 x 105 x 155
Product weight packed (Kg): 21
Number items per pallet: 18
