Single Electric Gate Automation Kit
BE20/400 Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaves up to 4.0 mt length, with mechanical stopper in opening and closing.

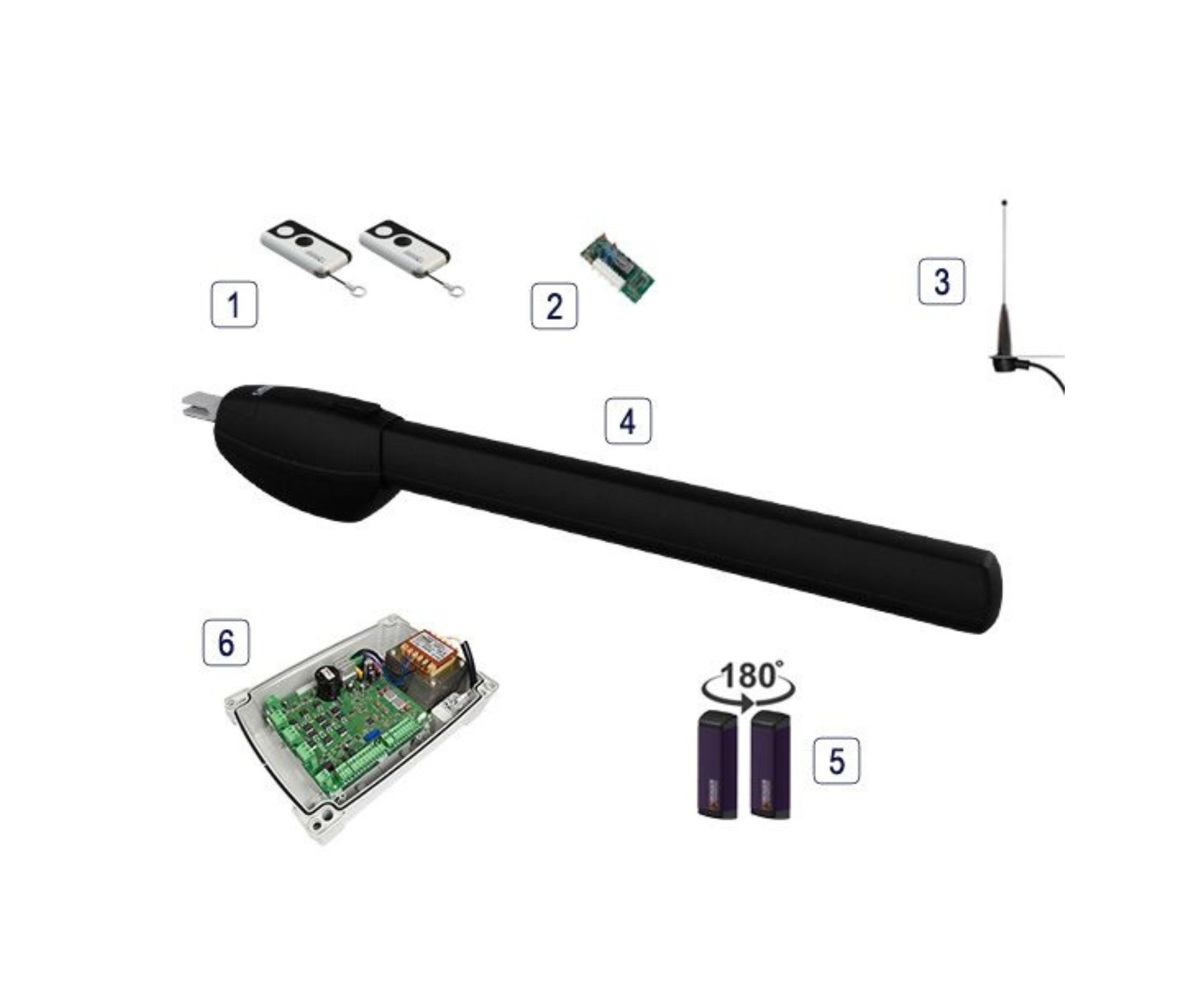

Electric Gate Kit Contents:
[1] SYNUS Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial/Antenna
[4] BE20/400 Super Intensive Motor (Black Edition)
[5] 180° Roger Technology M90 Photocells
[6] Edge 1 'Digital' Brushless Controller

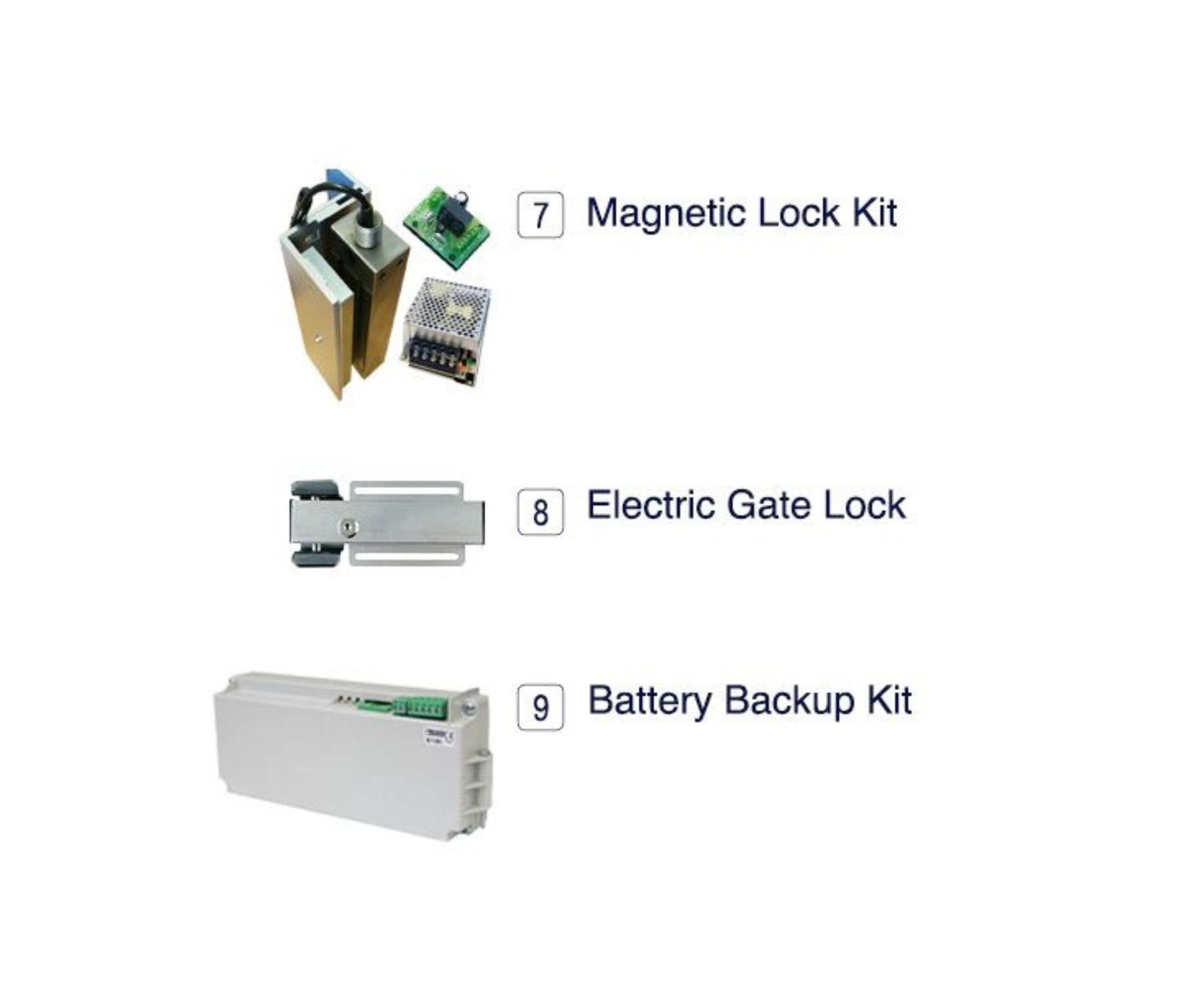

Optional Extras:
[7] Magnetic Lock Kit
[8] Single Electric Gate Lock
[9] B71/BC/INT Battery Backup
Electric Motor Features
Super Intensive Use: Capable of running non-stop.
Ideal: For swing gates up to 4.0m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and start up due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.
A mains filter should be fitted on the supply to the control panel.
It reduces mains interference and prolongs the life of the PCB.
If you have wooden gates then we strongly recommend the use of our adjustable bracket set as these commercial grade motors come with standard weld-on brackets.
Technical Specifications:
Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 200W
Frequency of use: Intensive use
Thrust: 100 - 2800N
Operating temperature: -20 C° +55 C°
Protection level: IP43
Reductor Type: Irreversible
Manoeuvre speed: 1,66 cm/s
Opening time at 90°: 17-26 s
Stroke: 550 mm
Limit switch: Mechanical stopper in opening and closing
Encoder: Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours no stop): 1000
Maximum dimension product in mm (L x W x H): 1019 x 105 x 155
Product weight packed (Kg): 21
Number items per pallet: 18
Electric Gate Kit Contents
[1] 2 x E80/TX52R/R Remote Control
[2] H93 Receiver Card
[3] Roger Technology FIFTY Beacon / Antenna
[4] BE20/400 36v Super Intensive Brushless Motor
[5] Roger Technology M90 180° Photocells
[6] EDGE1 Digital Brushless Controller
[7] Magnetic Lock Kit
[8] Viro V06 Lock
Electric Motor Features
Super Intensive Use: Capable of running non-stop.
Ideal: For swing gates up to 4.0m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and start up due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.
