Roger Technology BG30/1804 HS BRUSHLESS HIGH SPEED motor kit, low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 1800 Kg. with built-in digital controller B70 series, magnetic limit switch

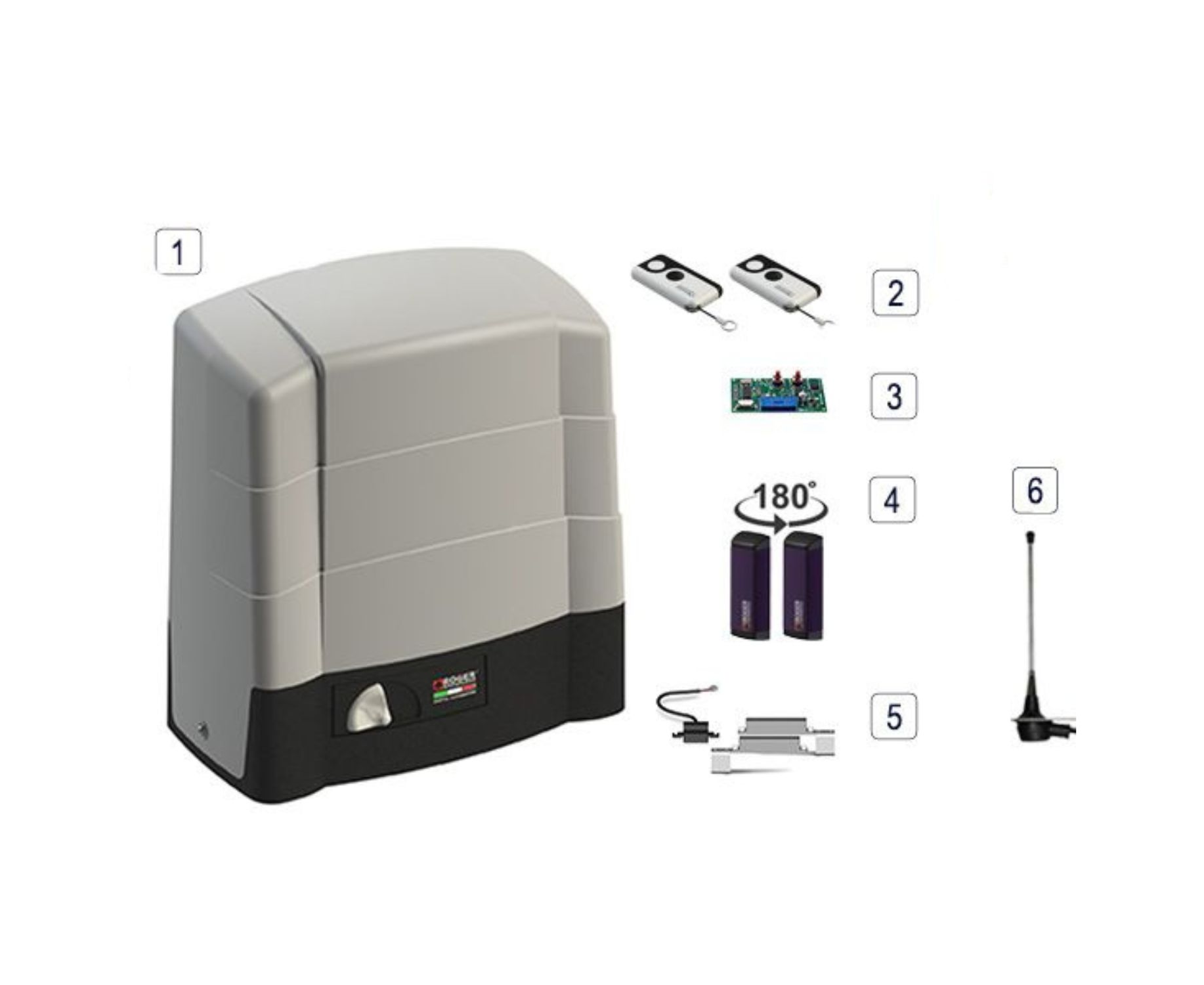

Kit Contains:
[1] BG30/1804/HS High Speed Super Intensive Brushless Motor
[2] SYNUS Remote (x2)
[3] H93 Receiver Card
[4] 180° Roger Technology M90 Photocells
[5] MC775 Magnetic Limit Switch
[6] Aerial/Antenna
Kit Features Include:
Ideal: For sliding gates up to max. 1800 kg.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation and start up due to its simple functions and its height and depth adjustments.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate lock.
Convenient: Battery back up available.
A mains filter should be fitted on the supply to the control panel.
It reduces mains interference and prolongs the life of the PCB.
Kit Contains:
[1] BG30/1804/HS High Speed Super Intensive Brushless Motor
[2] 2 x E80/TX52R/R Remote Control
[3] H93 Receiver Card
[4] Aerial / Beacon (Design may vary)
[5] Roger Technology M90 180° Photocells
[6] Magnetic Limit Switch kit for BG30/1804/HS motor
Optional Extras:
[7] 4m Steel or Nylon Rack
