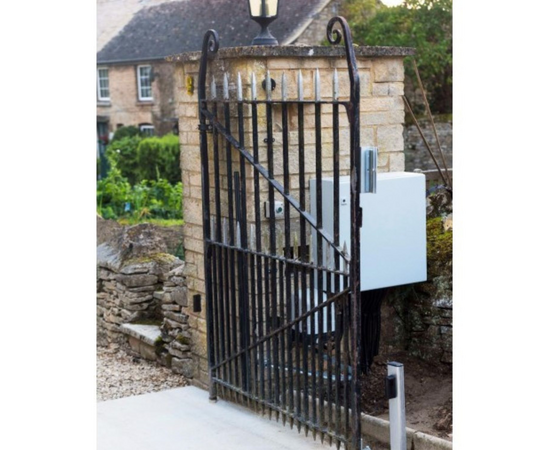

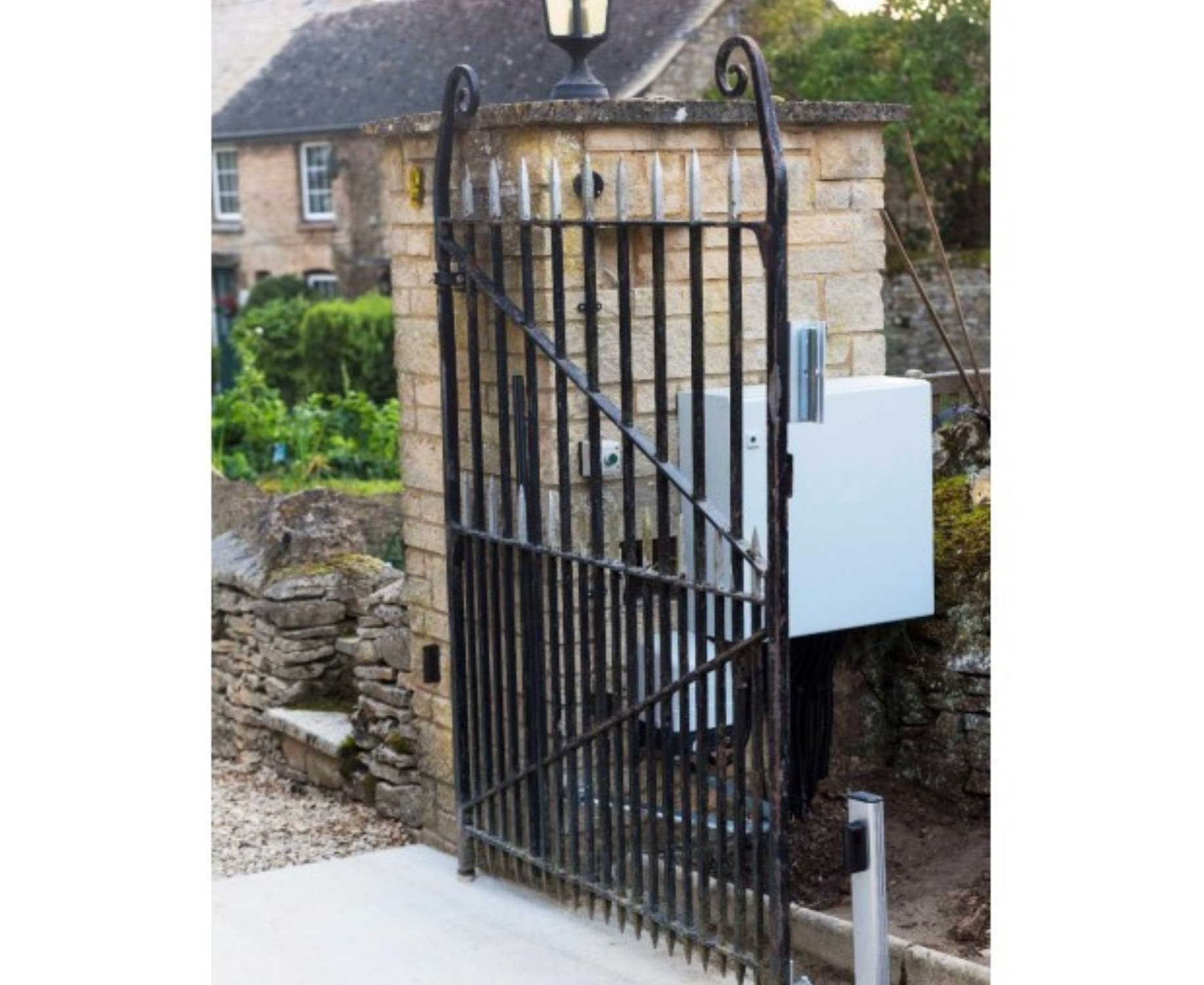

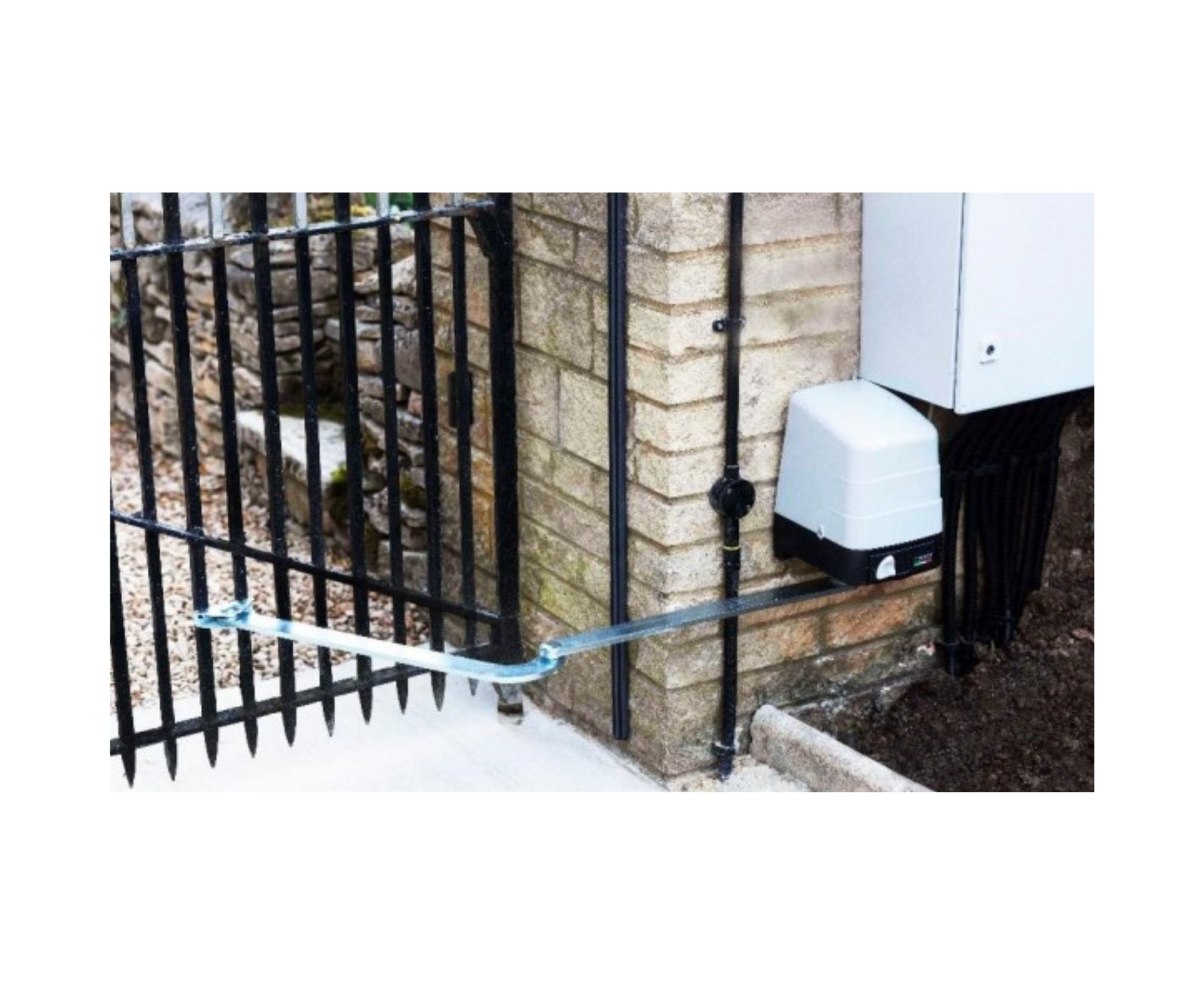

The BH23/282 are electromechanical articulated actuators that eliminate the immediate restriction a large pillar can create. The onboard super intensive use 24v BRUSHLESS motor with native encoder onboard is ideal for swing gates with leaf up to 3.0 m in length, with mechanical stopper in the opening and closing positions.

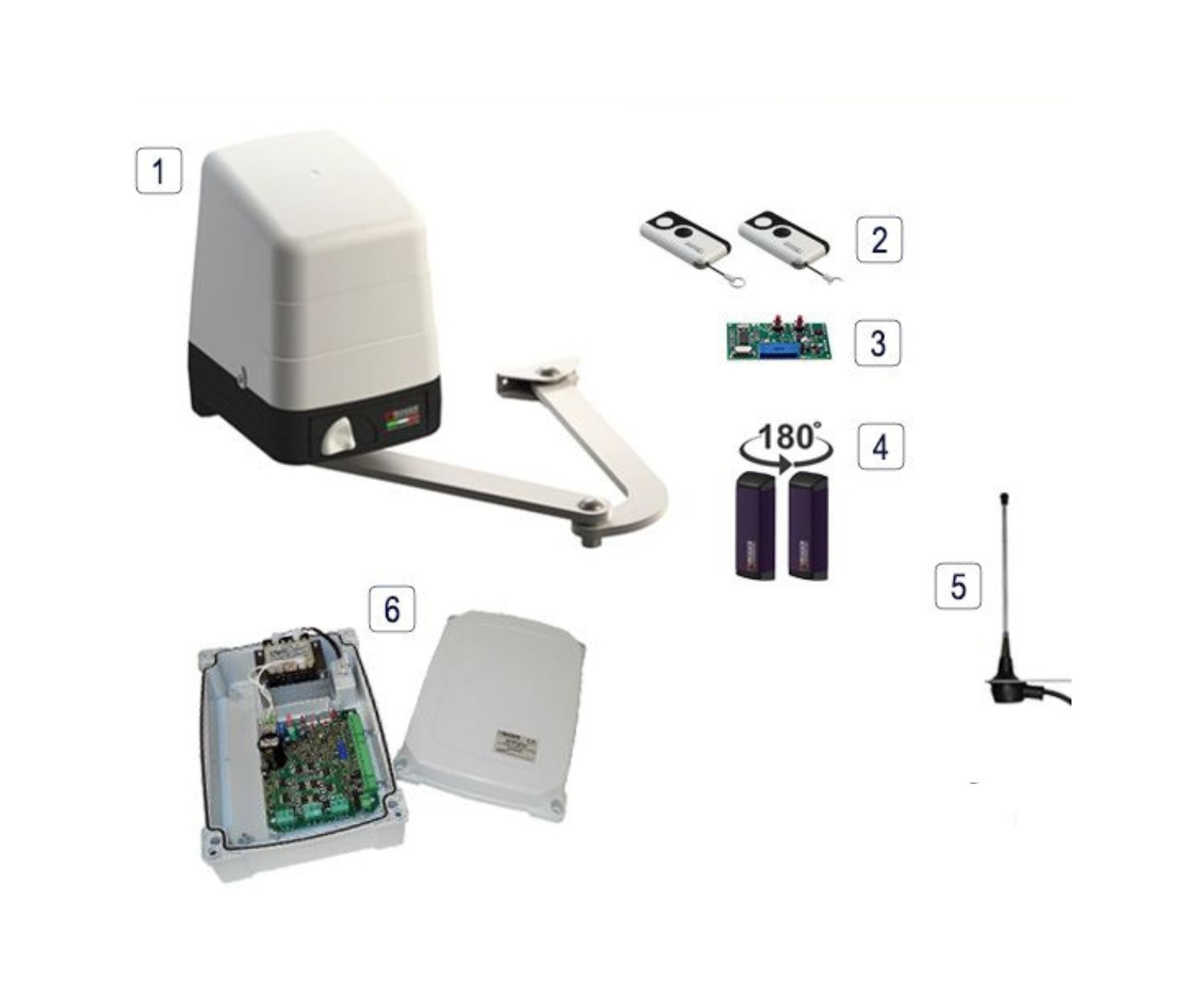

Kit Contents:
[1] BH23/282 Super Intensive & Steel Articulated arms (LT302)
[2] SYNUS Remote Control (x2)
[3] H93 Receiver Card
[4] Roger Technology M90 180° Photocells
[5] Aerial/Antenna
[6] B70/2DC Digital Brushless Controller
[7] Magnetic Lock Kit
[8] Single Electric Gate Lock
[9] B71/BC/INT Battery Backup
Features include:
Super Intensive Use: Capable of running non-stop.
Ideal: For swing gates up to 2.8m. 300Kg max weight per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.
