Sliding Electric Gate Automation Kit
The Roger Technology BH30/606 (SH) short kit, is a conveniently packaged adaption of the BH30 606 Brushless full kit that includes the motor, control panel, reciever & x2 remotes.
The BH30 606 motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 600Kg with built-in digital controller B70 series, mechanical limit switch.

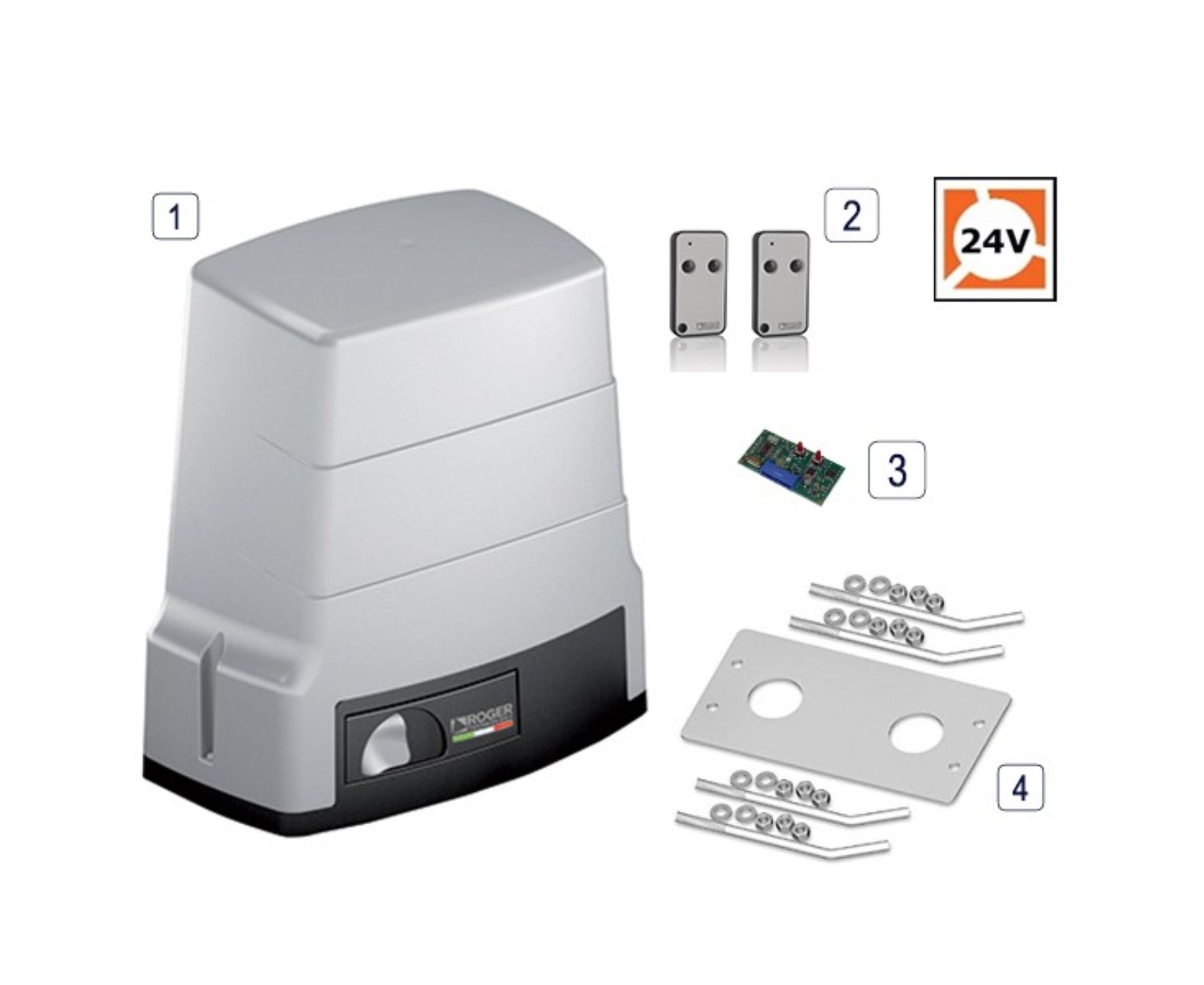

Electric Gate Short Kit Contents
[1] Roger BH30/604 Super Intensive Motor & PCB Controller
[2] E80/TX52R/R Remote Control (x2)
[3] H93 Receiver Card
[4] KT214 Fixing Plate
Electric Motor Features
Ideal: For sliding gates up to max. 600 kg.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation and start up due to its simple functions and its height and depth adjustments.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.
