Roger Technology BH30/806 24v BRUSHLESS Electric Sliding Gate Kit - 800kg
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Electric Sliding Gate Automation Kit

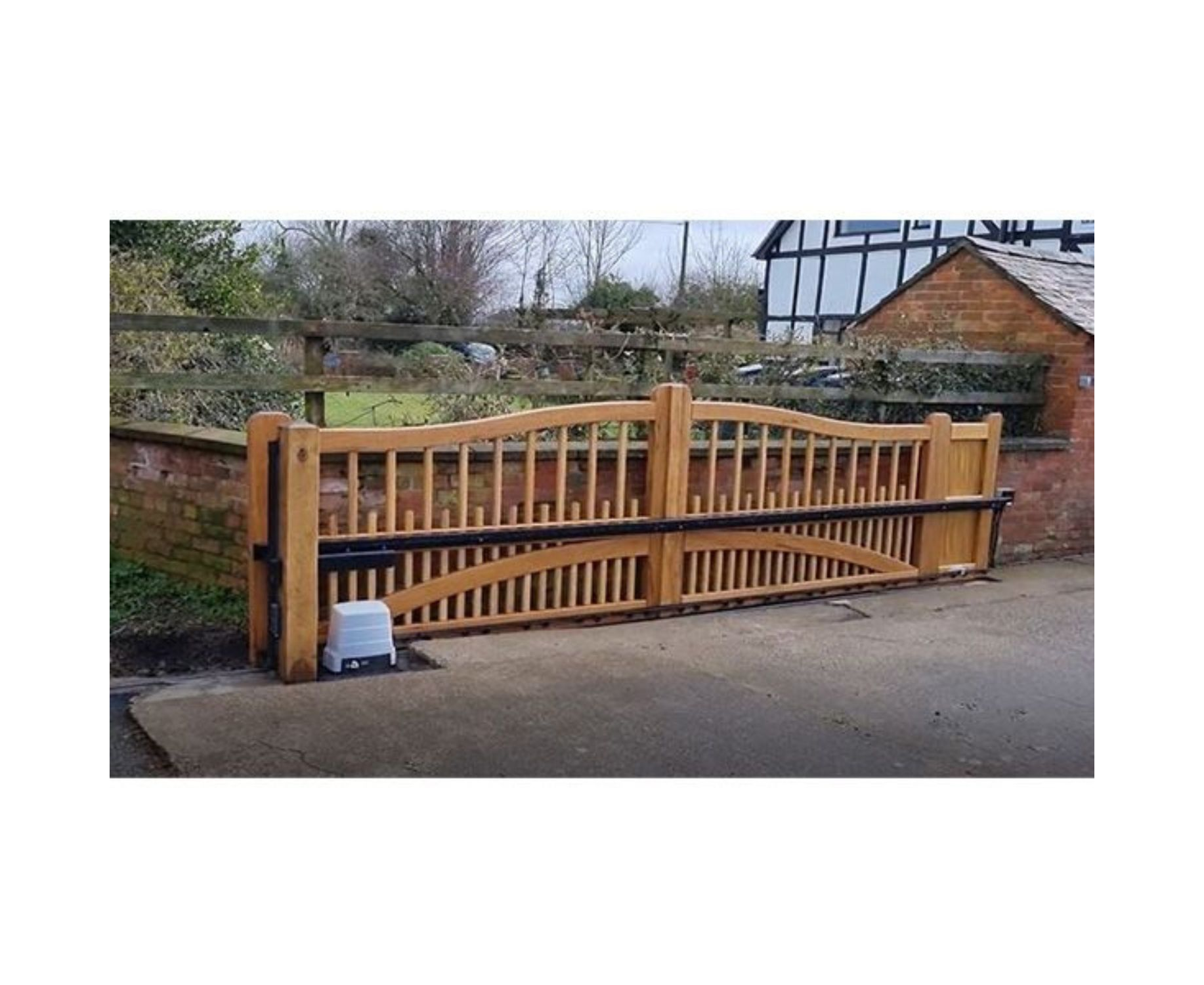

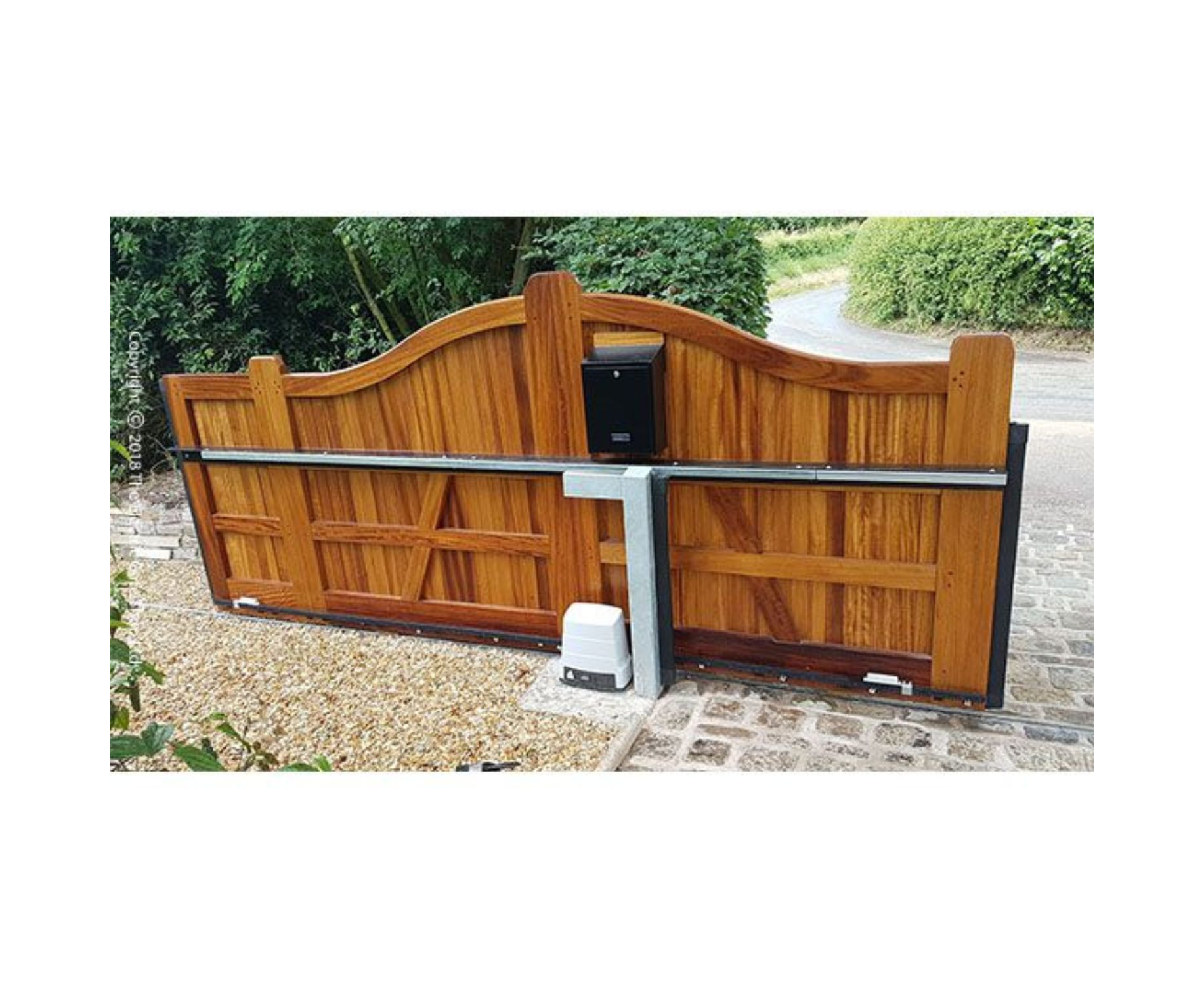

The Roger Technology BH30/806 is a 800kg sliding electric gate kit which includes mechanical limit switch making it the safest sliding gate motor on the market which is perfect for domestic dwellings.
The BH30/806 BRUSHLESS motor kit, low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 800Kg. with built-in digital controller B70 series, mechanical limit switch.

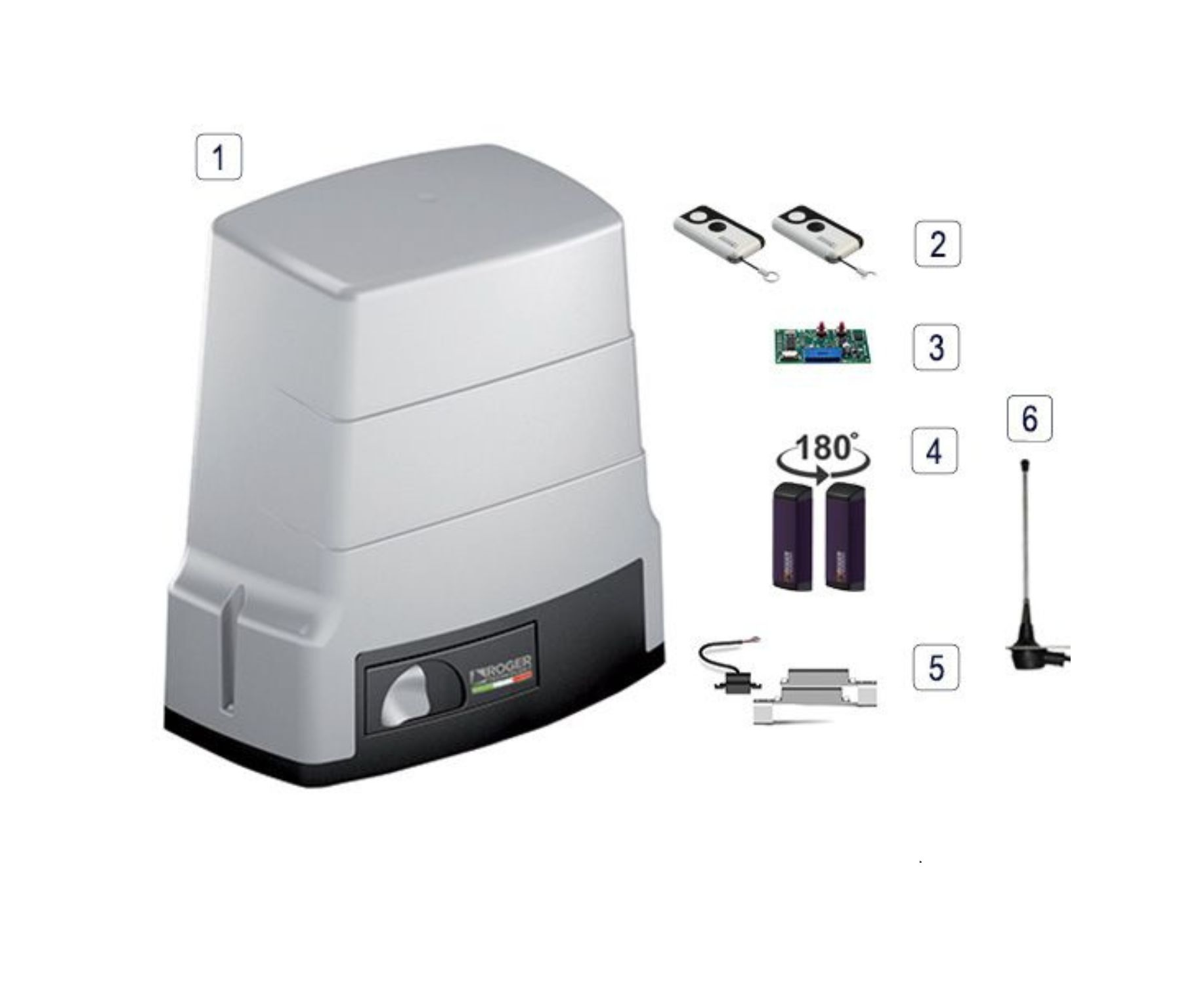

Electric Gate Kit Contents:
[1] Roger BH30/804 Super Intensive Motor & PCB Controller
[2] SYNUS Remote (x2)
[3] H93 Receiver Card
[4] 180° Roger Technology M90 Photocells
[5] MC775 Magnetic Limit Switch
[6] Aerial/Antenna
Electric Motor Features
Ideal: For sliding gates up to max. 800-1000 kg.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation and start up due to its simple functions and its height and depth adjustments.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.
Technical Specifications:
Max Gate Weight: 800-1000kg
Power: 24V
Power rating: 200W
Max thrust: 50 - 1000N
The frequency of use: Intensive use
Operating temperature: -20 C° +55 C°
Protection level: IP 43 Stroke:
Manoeuvre speed: 12 m/min (0.20 m/s)
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Operating cycles per day (opening/closing - 24hrs nonstop): 1300 cycles
Limit switch: Mechanical
Reductor Type: Irreversible
Electric Gate Kit Contents:
[1] Roger BH30/804 Super Intensive Motor & PCB Controller.
[2] E80/TX52R/R Remote Control (x2)
[3] H93 Receiver Card
[4] Aerial / Beacon (Design may vary)
[5] 180° Roger Technology M90 Photocells (Pair)
[6] MC775 Magnetic Limit Switch
Optional Extras:
[7] 4m Steel or Nylon Rack
