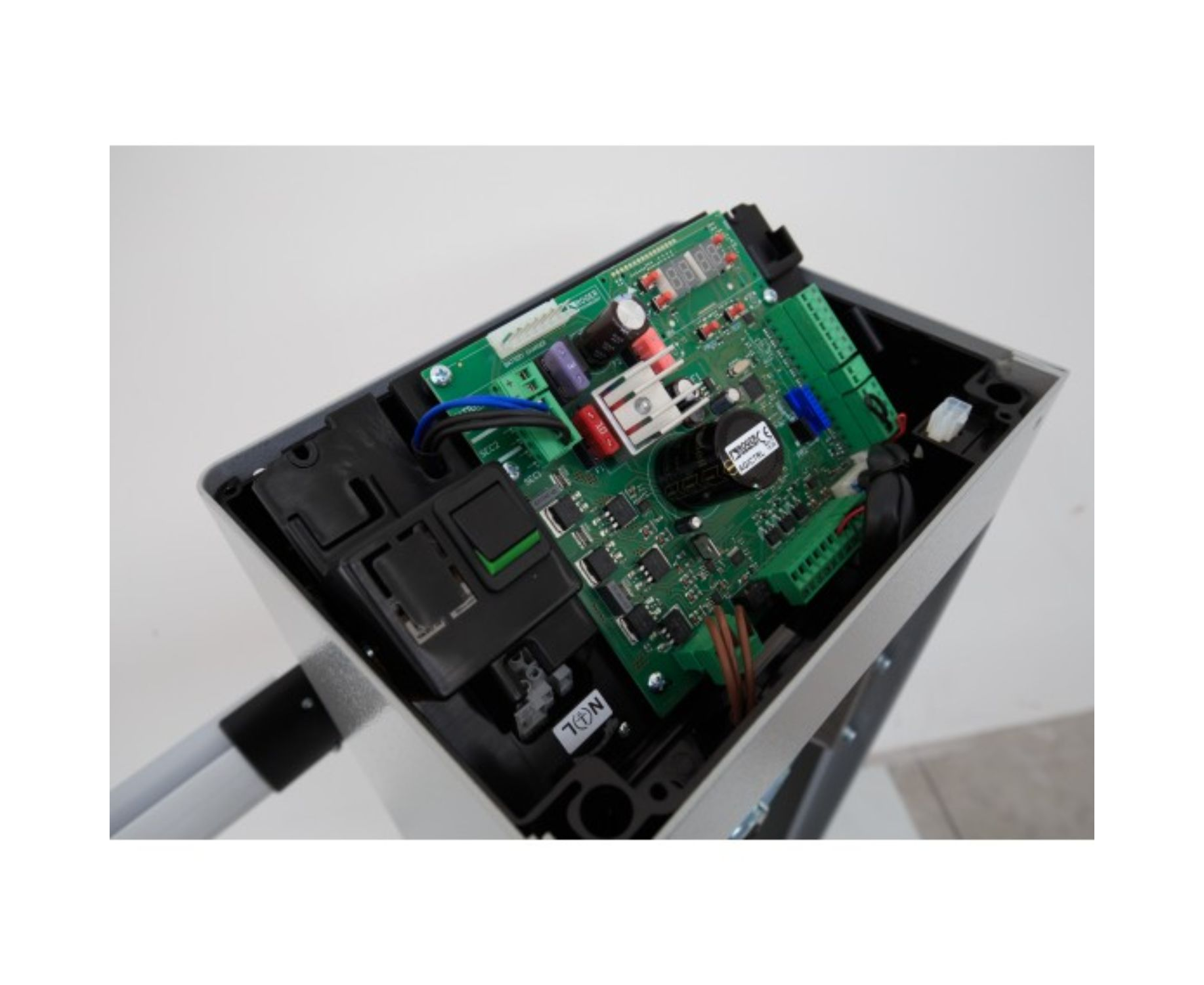

The Brushless Bionik 36V DC super intensive barrier has a boom of up to 6 metres and a built-in digital control panel with onboard encoder. We use Brushless because it’s robust and elegant, for the access to condominiums, commercial premises, industrial sites and residential areas.

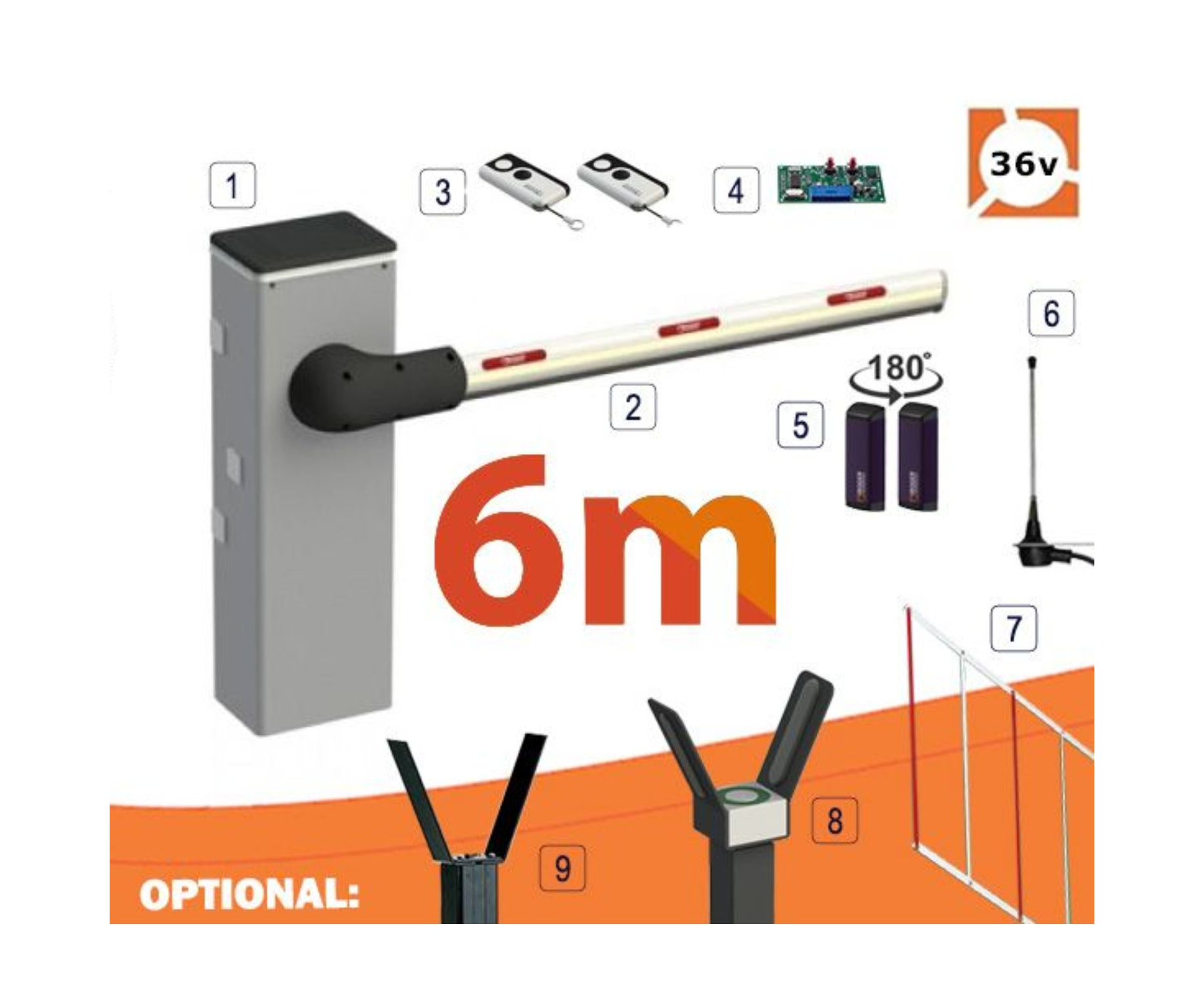

Roger Technology 6m Barrier Kit Contains:
1) Roger Technology 6m Bionik BI/006 Barrier
2) BA/91/3 3m Ellipitcal-Boom (x2)
3) SYNUS Remote Control (x2)
4) H93 Receiver for above
5) Roger Technology M90 180° Photocells
6) 433Mhz Aerial
Optional:
7) Skirt for Barrier Boom
8) Fixed End Rest With Magnetic Suction Cup
9) Fixed End Rest
AG/SP48 Spring - Include when fitting booms up to 2.8m
AG/SP72 Spring - Include when fitting boom end rest or skirt

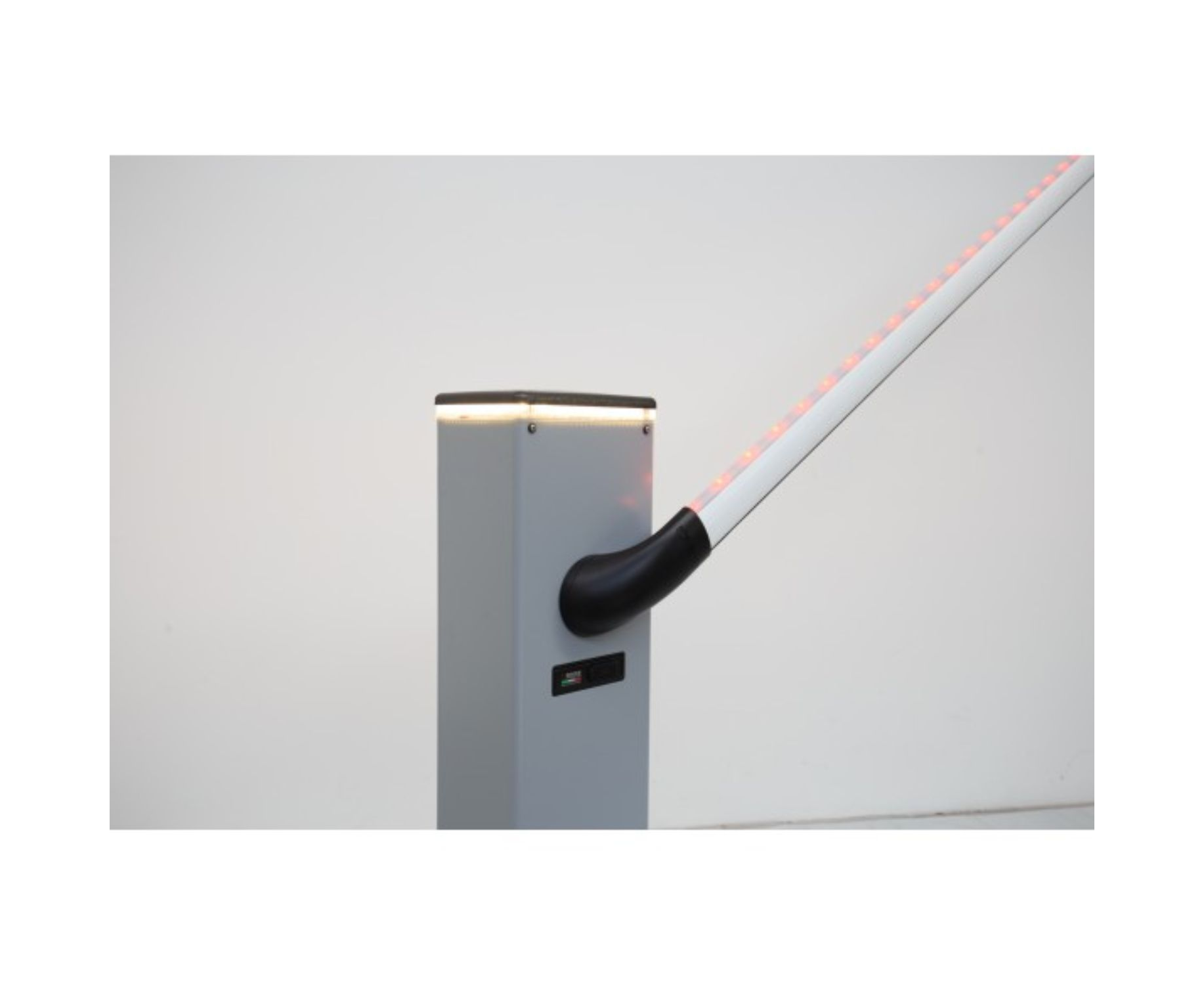

The Bionik is the entry barrier model from Roger Technology with digital processing due to its Brushless motor 36V with permanent magnetic field.
The Bionik support and protection arm is made from die-cast aluminium, directly connected to the reducer via a special system for pre-reducing the mechanical stress of the mechanical boom movement and is continually monitored in all positions with its absolute encoder.
The revolutionary three-phase Brushless motor allows unlimited use of the barrier and has ultra-low power consumption. The gear motor is a mechanical jewel made entirely of aluminium, steel and bronze. All the helical gears are cut with a 15° tilt, assembled on top quality bearings and inserted in perfectly machined seats to guarantee the absolute precision of the gear axes.

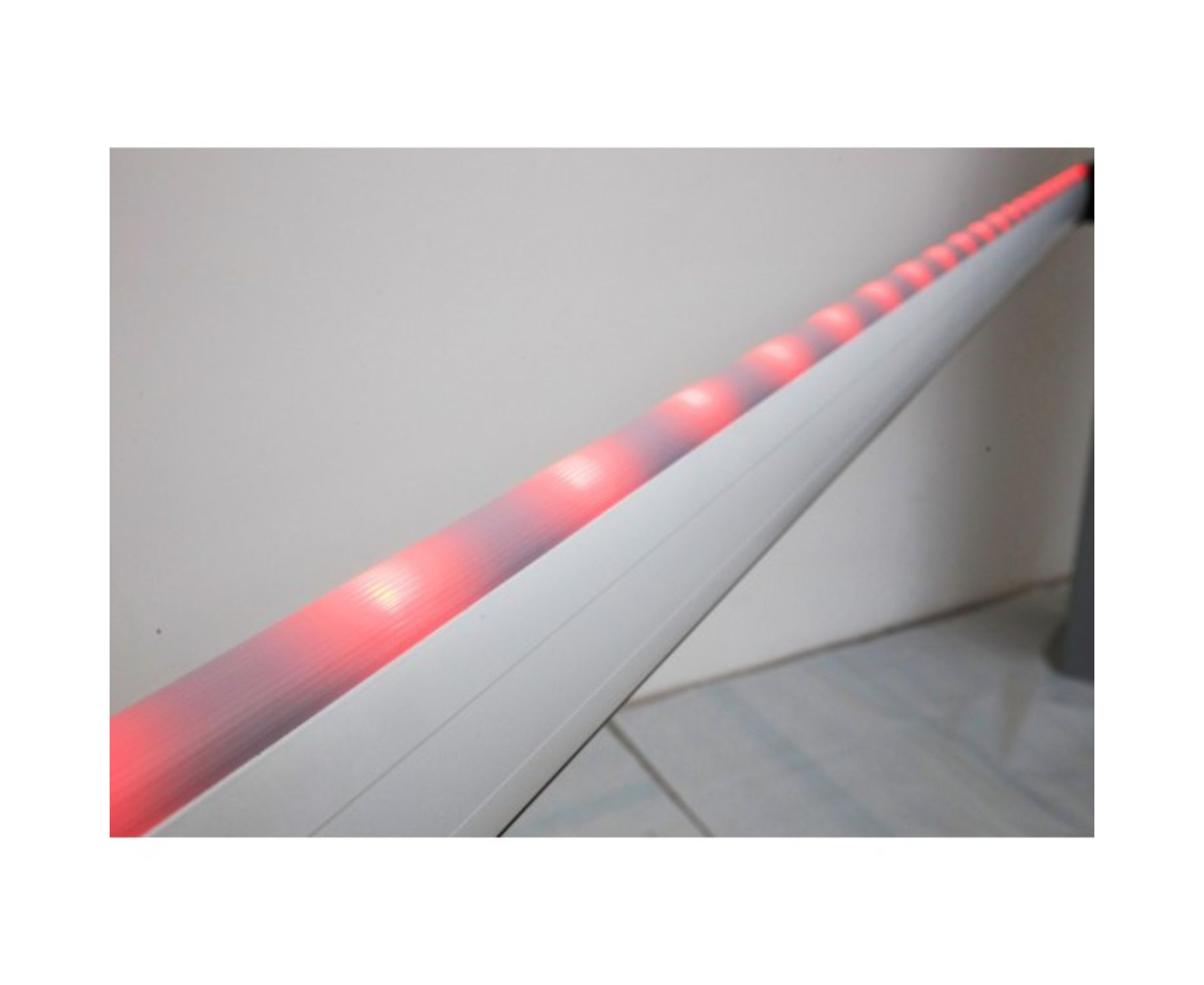

The barrier kit contains the barrier box/motor, spring, receiver, two remotes and a set of photocells, the boom/arm comes separate. As always an arsenal of accessories from lighting kits, skirts and supports.
