Roger Technology Bionik BI/006 Brushless Automatic Barrier Series 6m with skirt
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
The Brushless Bionik 36V DC super intensive barrier has a boom of up to 6 metres and a built-in digital control panel with onboard encoder. We use Brushless because it’s robust and elegant, for the access to condominiums, commercial premises, industrial sites and residential areas.

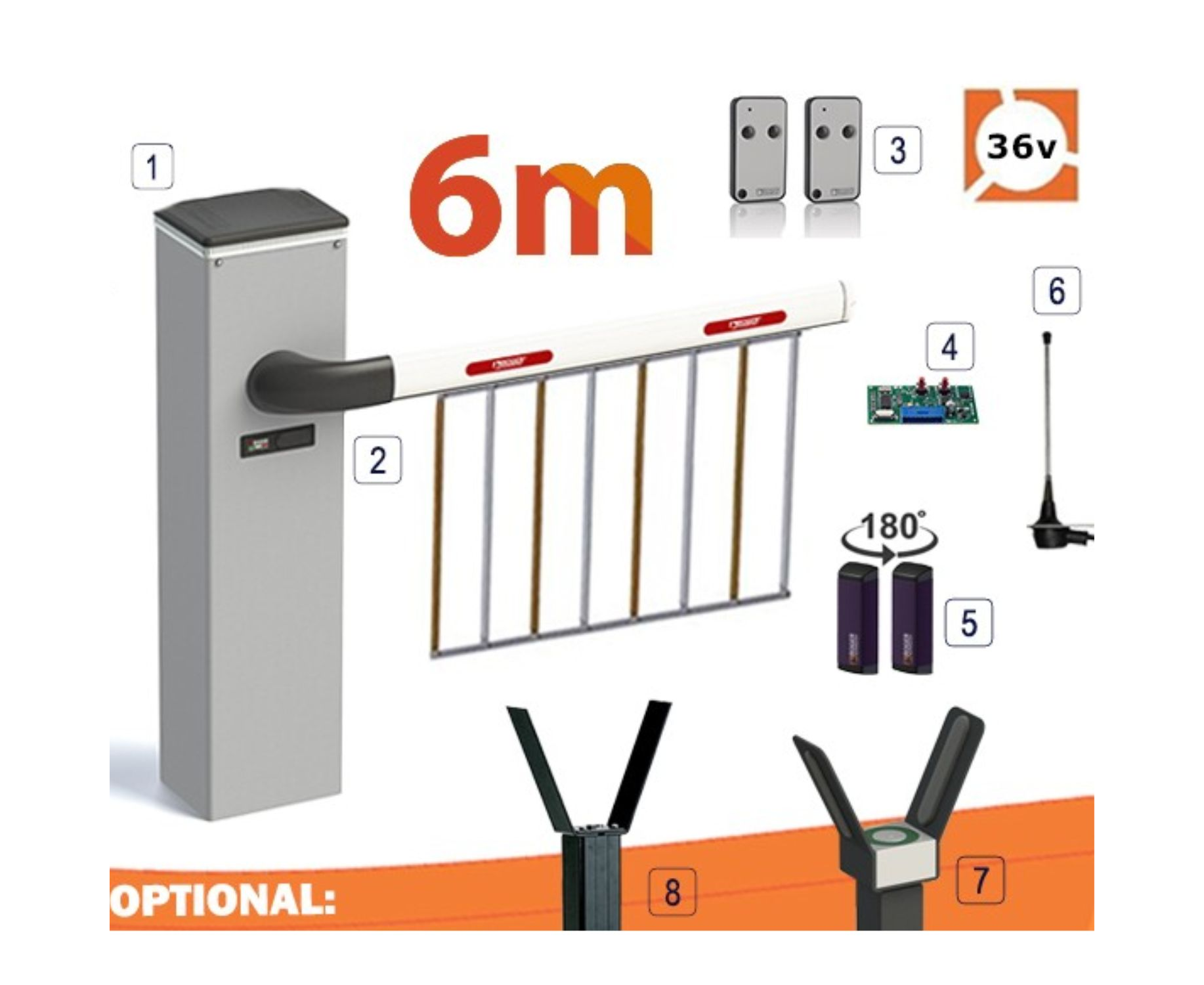

Kit Contains
1) Roger Technology 6m Bionik BI/006 Barrier
3) E80/TX52R/R Remote Control (x2)
4) H93 Receiver for above
5) Roger Technology M90 180° Photocells
6) 433Mhz Aerial
7) 2 x BARK/02 Roger Technology Skirt
8) BAFS/01 Compulsory Fixed End Rest
9) SP85/01 Spring
Optional:
10) Fixed End Rest With Magnetic Suction Cup
The Bionik is the entry barrier model from Roger Technology with digital processing due to its Brushless motor 36V with permanent magnetic field.
The Bionik support and protection arm is made from die-cast aluminium, directly connected to the reducer via a special system for pre-reducing the mechanical stress of the mechanical boom movement and is continually monitored in all positions with its absolute encoder.
The revolutionary three-phase Brushless motor allows unlimited use of the barrier and has ultra-low power consumption. The gear motor is a mechanical jewel made entirely of aluminium, steel and bronze. All the helical gears are cut with a 15° tilt, assembled on top quality bearings and inserted in perfectly machined seats to guarantee the absolute precision of the gear axes.
The barrier kit contains the barrier box/motor, spring, receiver, two remotes and a set of photocells, the boom/arm comes separate. As always an arsenal of accessories from lighting kits, skirts and supports.
