Roger Technology BR21/364 BRUSHLESS 36v Electric Gate Kit - Double (10m Cables)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Double Electric Gate Automation Kit
The Roger Technology BR21/364 Brushless underground electric gate kit is our best seller thanks to its twin bearing 1000kg load capabilities. This below ground gate kit can automate leafs up to 5.0mt length dependant on gate construction - see above).
Underground Electic Gate Kit - BR21/364
Electric Gate Motor Included - BR21/362
Foundation Box - FU100 Cold Galv Foundation Box

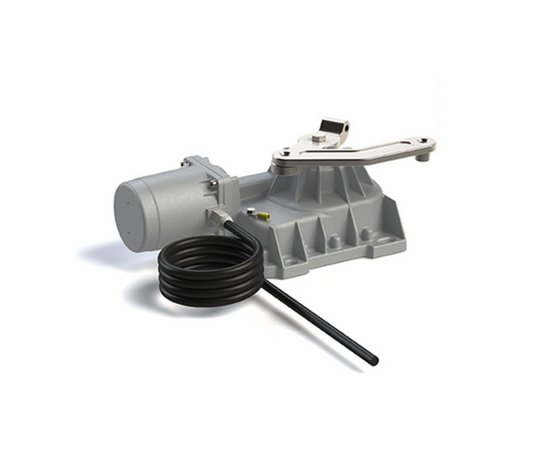

BR21/362 Electromechanical actuator BRUSHLESS, low voltage, super intensive use, twin bearing, 10m cable.

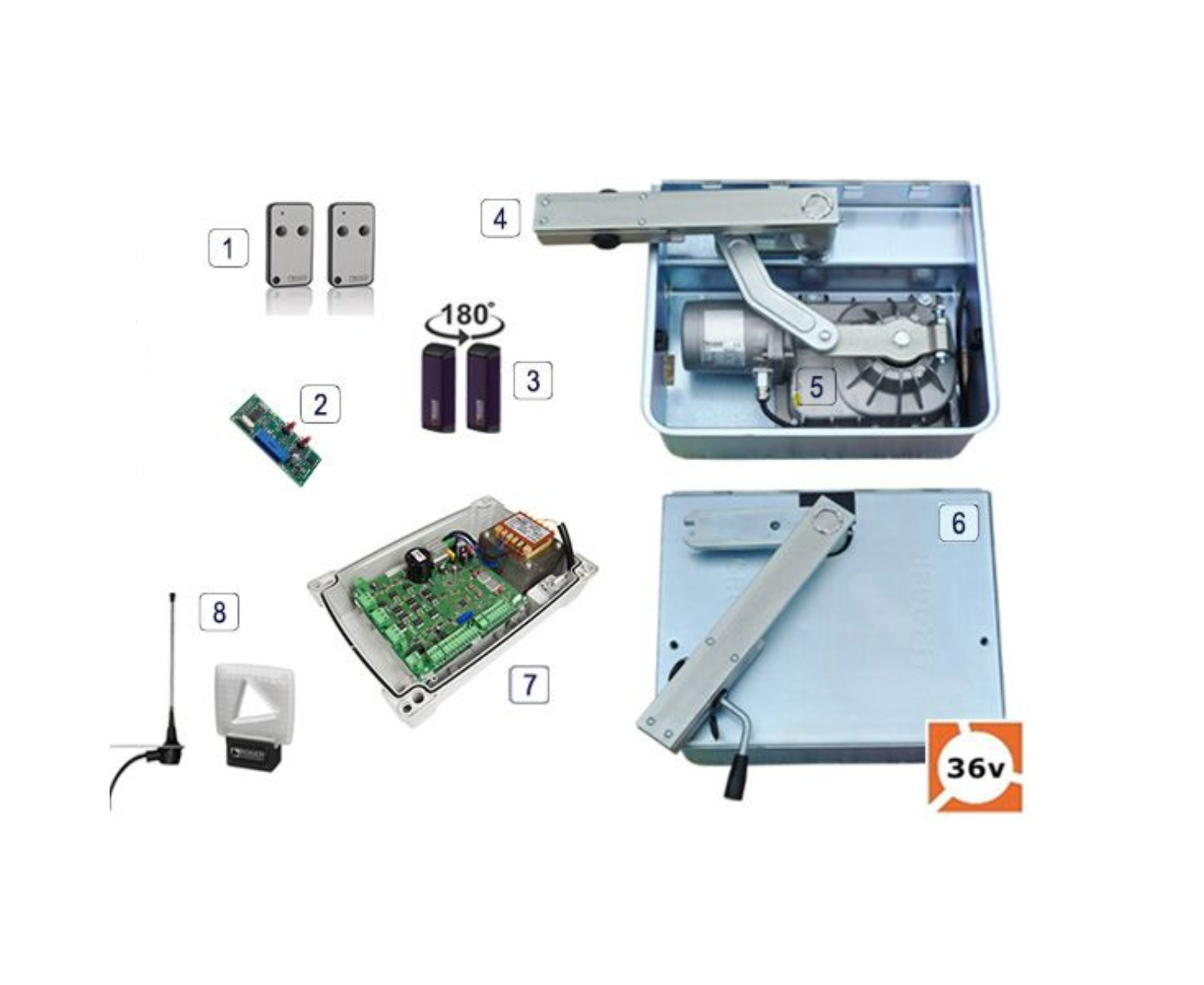

Electric Gate Kit Contents
[1] E80/TX52R/R Remote Control (x2)
[2] H93 Receiver Card
[3] 180° Roger Technology M90 Photocells
[4] RL650 Release Lever
[5] Roger Technology BR21/362 Super Intensive Twin Bearing Motor (x2)
[6] FU100 Foundation Box (x2)
[7] EDGE 1 36v Digital Control Panel
[8] Aerial / Beacon (Design may vary)
Electric Motor Features
Super Intensive Use: Capable of running non-stop.
Twin Bearings: Can carry up to 1000kg.
Long Cable: 10m of cable (No joining required)
Ideal: For swing gates up to 5.0mt length dependant on gate construction - see above).
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock
Convenient: Battery back up available.
Technical Specification
Power Line Supply: 230V AC - 50Hz
Motor Power Supply: 24V - 36V -
Power Rating: 200W -
Frequency of use: Intensive use
Torque 50: 300 N m -
Operating Temperature: 20+55°C -
Protection Level: IP67
Reductor Type: Irreversible
Manoeuvre Speed: 1,2 Rpm -
Opening Time at 90°: 19-29 s
Limit Switch: Mechanical Stoppers
Encoder Digital native encoder: SENSORLESS 48 PPR -
Maximun Opening: 105°(optional 125° - 360°)
Power Supply Cable length: 10m
Bearing on main shaft: Double bearings
Operating cycles per day: (opening/closing - 24 hours no stop) 1300
