Double Electric Gate Automation Kit With No Boxes
The Roger Technology BR21/362 Brushless underground electric gate kit is our best seller thanks to its twin bearing 1000kg load capabilities. This below ground gate kit can automate leafs up to 5m.

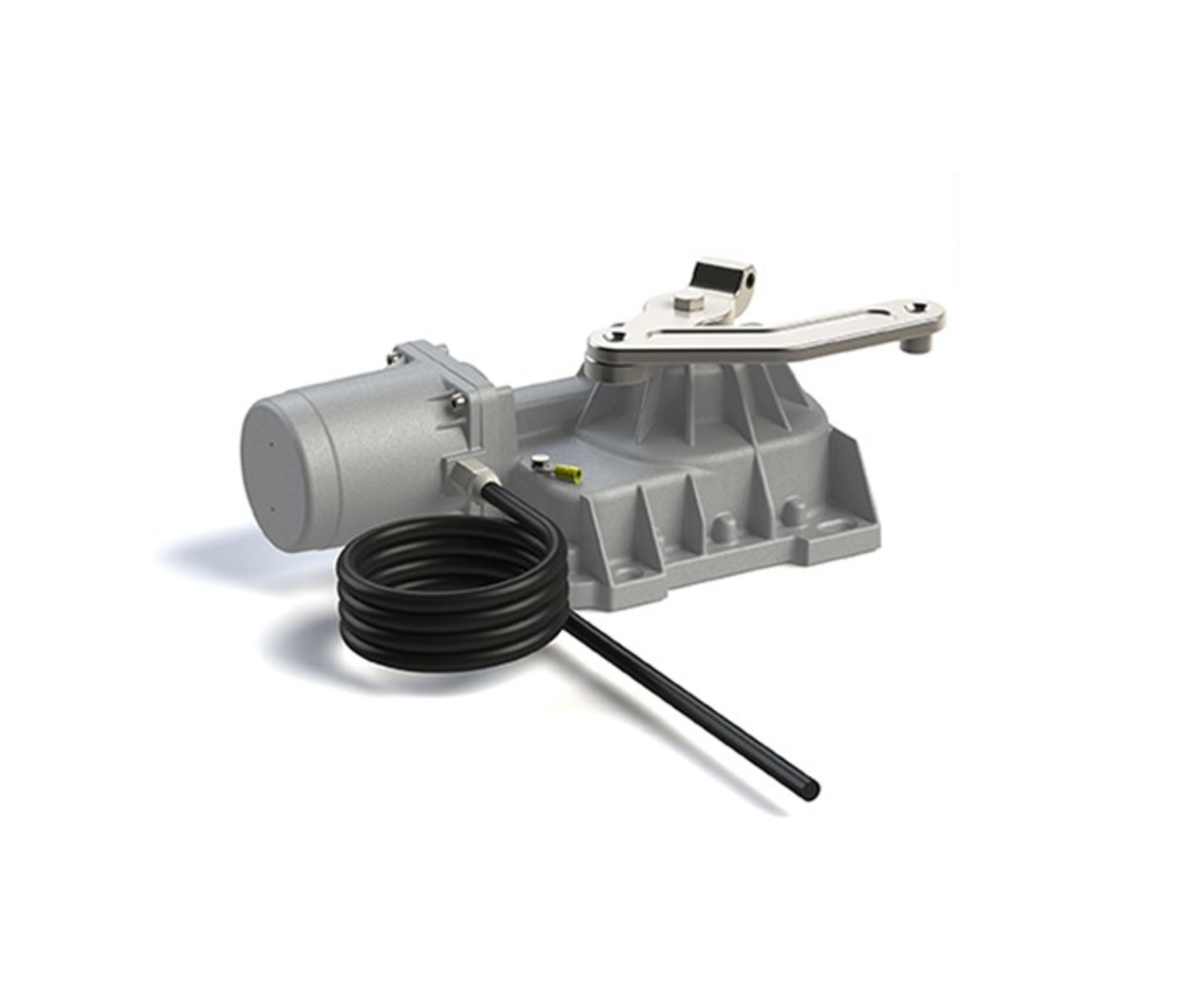

BR21/362 Electromechanical actuator BRUSHLESS, low voltage, super intensive use, twin bearing, 10m cable, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 5m lengths, with mechanical stopper in opening and closing. Twin bearing version.
This version of the BR21/362 comes with no foundation boxes for replacement kit purposes. This kit has been designed to replace exisiting underground kits without the need to replace the foundation boxes.
Compatible With:
.jpg)

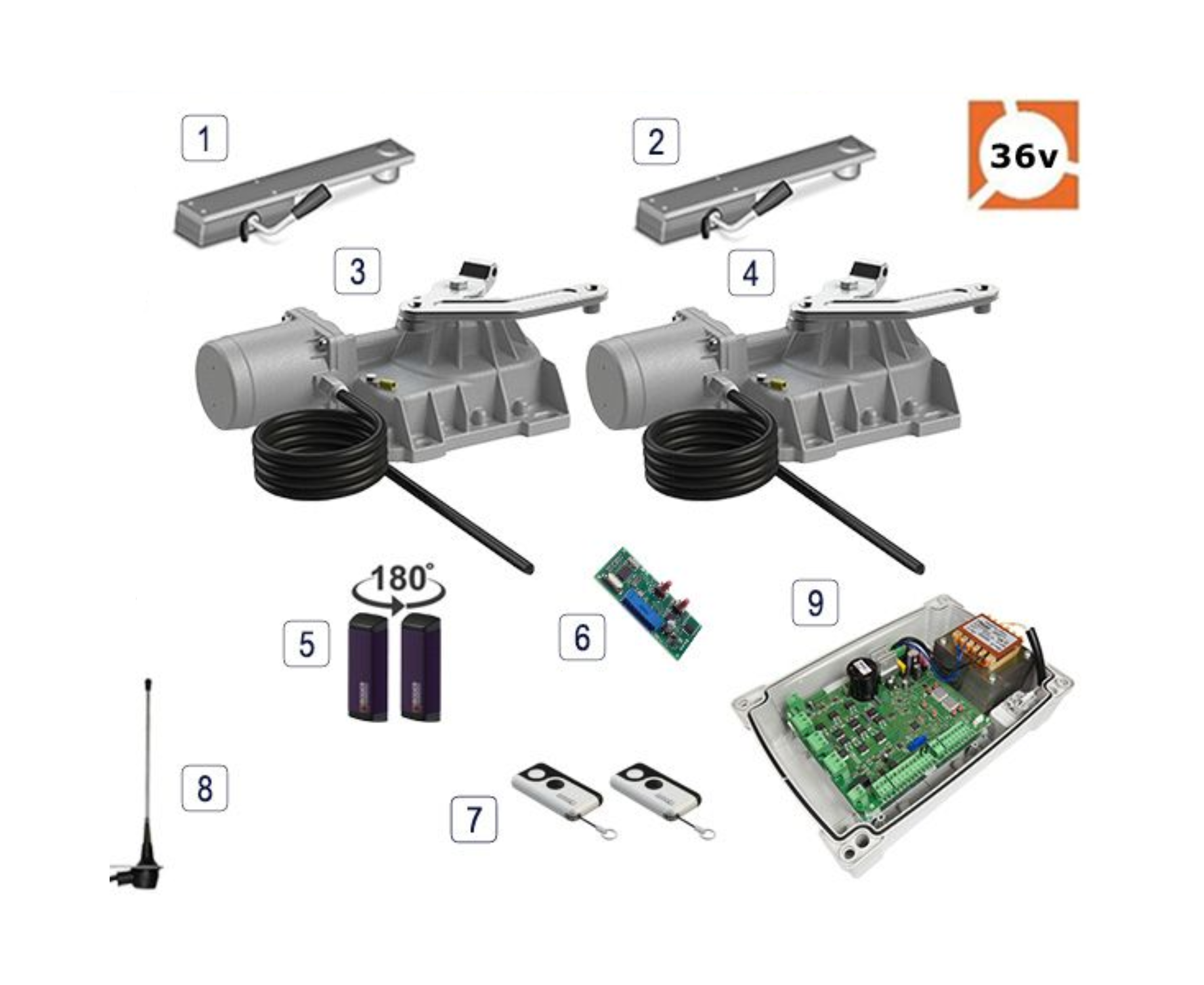

Electric Gate Kit Contents
[1] RL650 Release Lever
[2] RL650 Release Lever
[3] Roger BR21/362 Super Intensive Twin Bearing Motor
[4] Roger BR21/362 Super Intensive Twin Bearing Motor
[5] Roger Technology M90 Photocells
[6] H93 Receiver
[7] SYNUS Remote Controls (x2)
[8] Aerial/Antenna
[9] EDGE1 Control Panel
Electric Motor Features
Super Intensive Use: Capable of running non-stop.
Twin Bearings: Can carry up to 1000kg.
Long Cable: 10m of cable (No joining required)
Ideal: For swing gates up to 5m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock
Convenient: Battery back up available.
Technical Specification
Power Line Supply: 230V AC - 50Hz
Motor Power Supply: 24V - 36V -
Power Rating: 200W -
Frequency of use: Intensive use
Torque 50: 300 N m -
Operating Temperature: 20+55°C -
Protection Level: IP67
Reductor Type: Irreversible
Manoeuvre Speed: 1,2 Rpm -
Opening Time at 90°: 19-29 s
Limit Switch: Mechanical Stoppers
Encoder Digital native encoder: SENSORLESS 48 PPR -
Maximun Opening: 105°(optional 125° - 360°)
Power Supply Cable length: 10m
Bearing on main shaft: Double bearings
Operating cycles per day: (opening/closing - 24 hours no stop) 1300
