Double Electric Gate Automation Kit
The Roger Technology BR21/365 Brushless underground electric gate kit is our best seller thanks to its twin bearing 1000kg load capabilities. This below ground gate kit can automate leafs up to 5.0mt length dependant on gate construction - see above).
Underground Electic Gate Kit - BR21/365
Electric Gate Motor Included - BR21/361
Foundation Box - FU101 Cold Galv Foundation Box

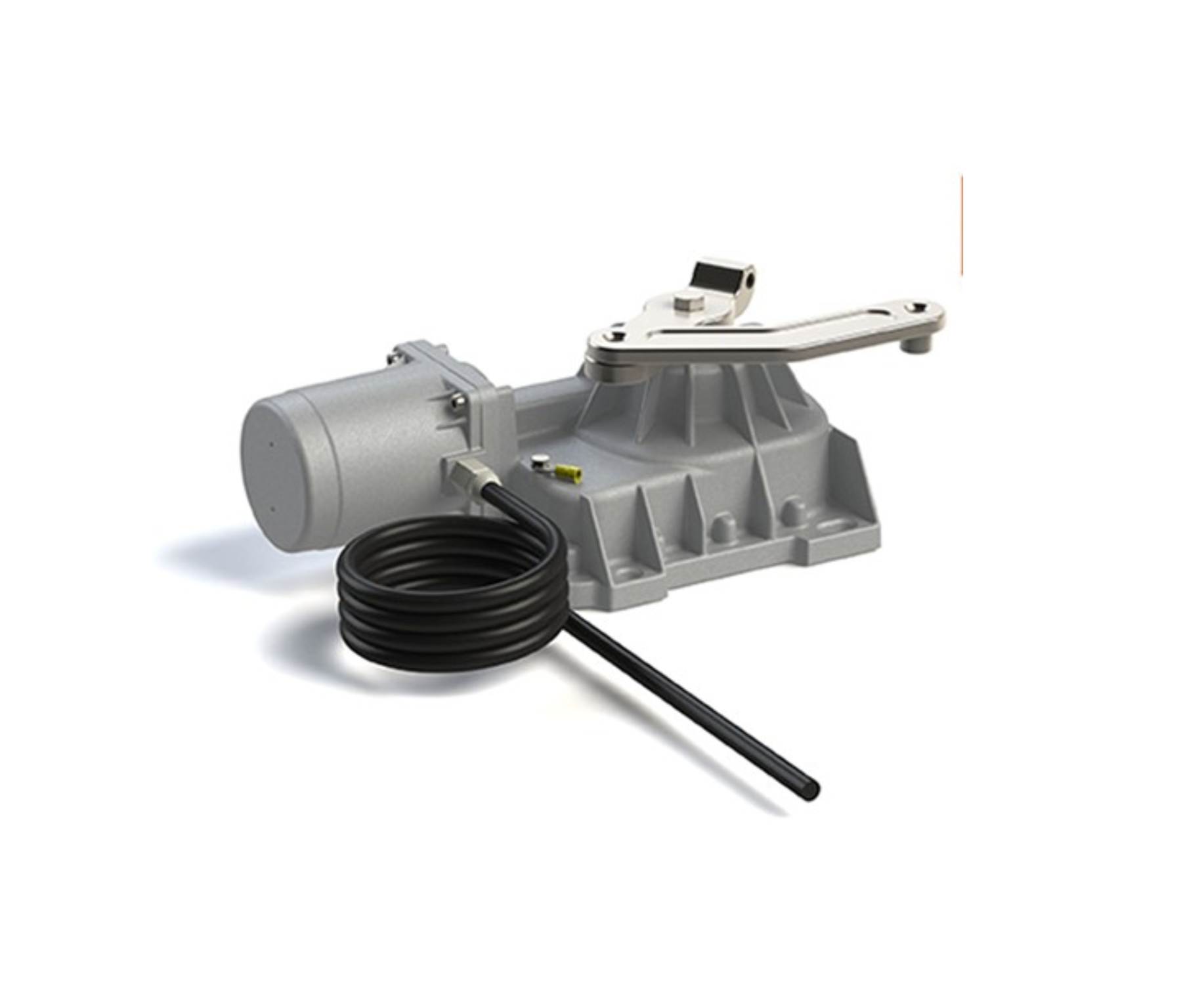

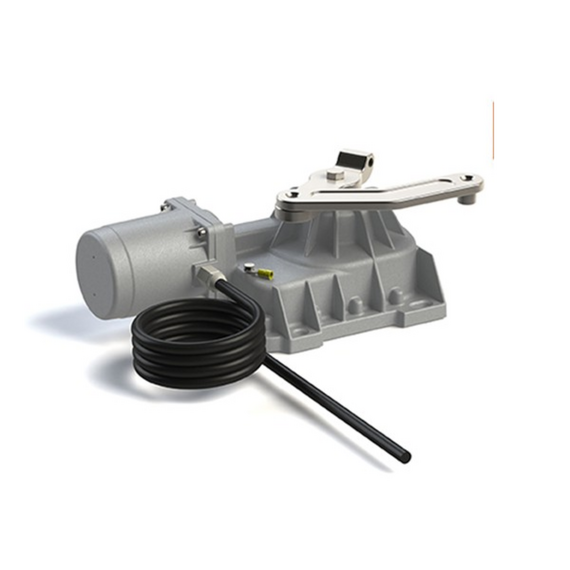

BR21/361 Electromechanical actuator BRUSHLESS, low voltage, super intensive use, twin bearing, 10m cable.

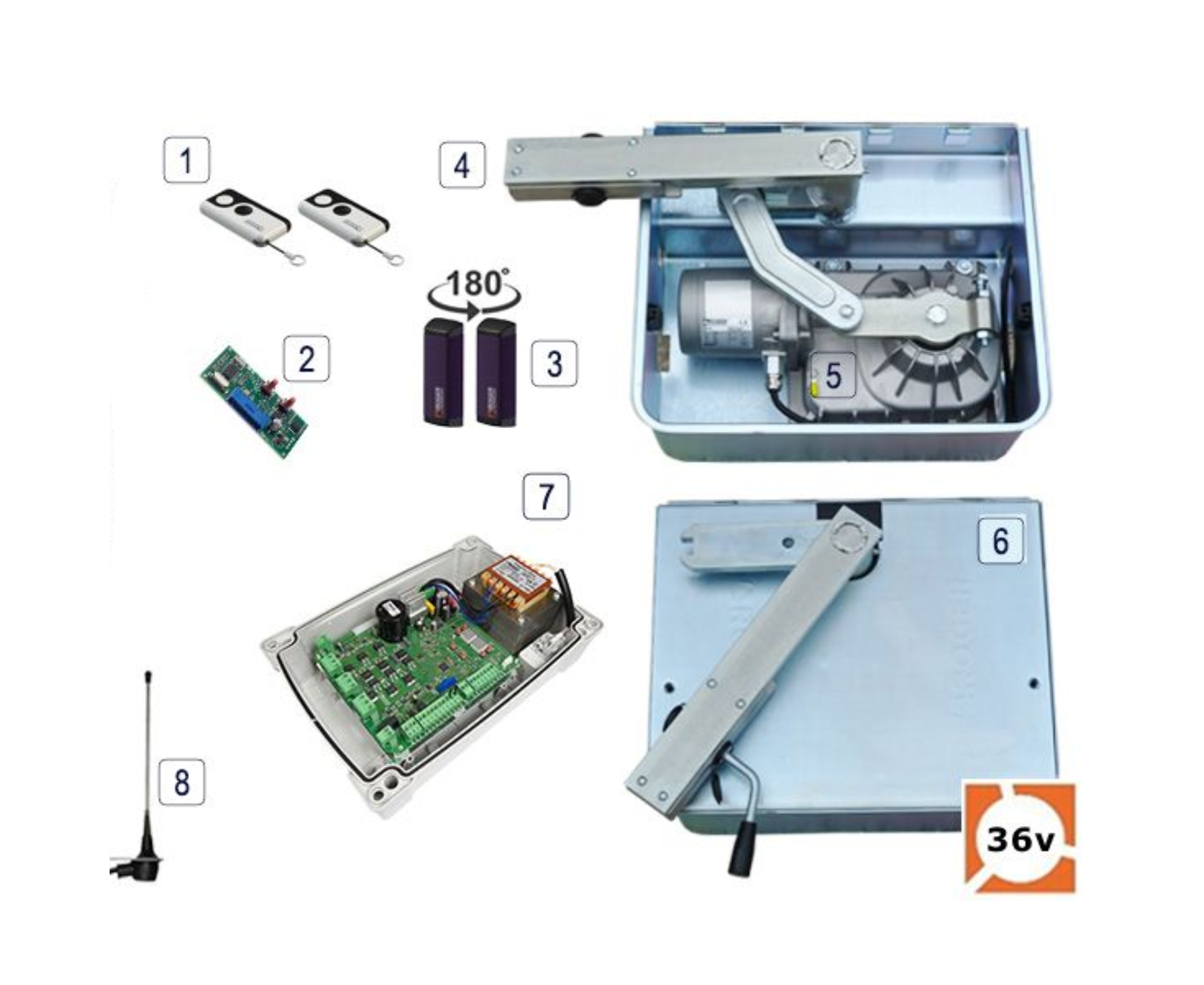

Electric Gate Kit Contents
[1] E80/TX52R/R Remote Control (x2)
[2] H93 Receiver Card
[3] 180° Roger Technology M90 Photocells
[4] RL650 Release Lever
[5] Roger Technology BR21/361 Super Intensive Twin Bearing Motor (x2)
[6] FU101 Foundation Box (x2)
[7] EDGE 1 36v Digital Control Panel
[8] Aerial / Beacon (Design may vary)
Electric Motor Features
Super Intensive Use: Capable of running non-stop.
Twin Bearings: Can carry up to 1000kg.
Long Cable: 10m of cable (No joining required)
Ideal: For swing gates up to 5.0mt length dependant on gate construction - see above).
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock
Convenient: Battery back up available.
Technical Specification
Power line supply: 230V AC - 50Hz
Motor power supply: 24V - 36V
Power rating: 200W
Frequency of use: Intensive use
Torque: 50 - 300 N m
Operating temperature: -20+55°C
Protection level: IP67
Reductor Type: Irreversible
Manoeuvre speed: 1,2 Rpm
Opening time: 19-29 s
Limit switch: Mechanical stoppers
Recommended digital controllers: 230V: EDGE1/BOX - 115V: EDGE1/BOX/115
Encoder: Digital native encoder SENSORLESS 48 PPR
Maximun opening: 105°(optional 125° - 360°)
Power supply cable length: 10m
Bearing on main shaft: Standard
