Single Electric Gate Automation Kit
Features steel cut gears for long life, maintenance-free motors.
Electro-mechanical reduction gear for swing gates up to 3.5m in width. the sturdy die-cast aluminium housing has been structurally designed to withstand the high forces involved. When installed it is totally concealed inside the foundation box.
The kit uses a hot-dipped, galvanised foundation box with an internal opening and closing limit switches.

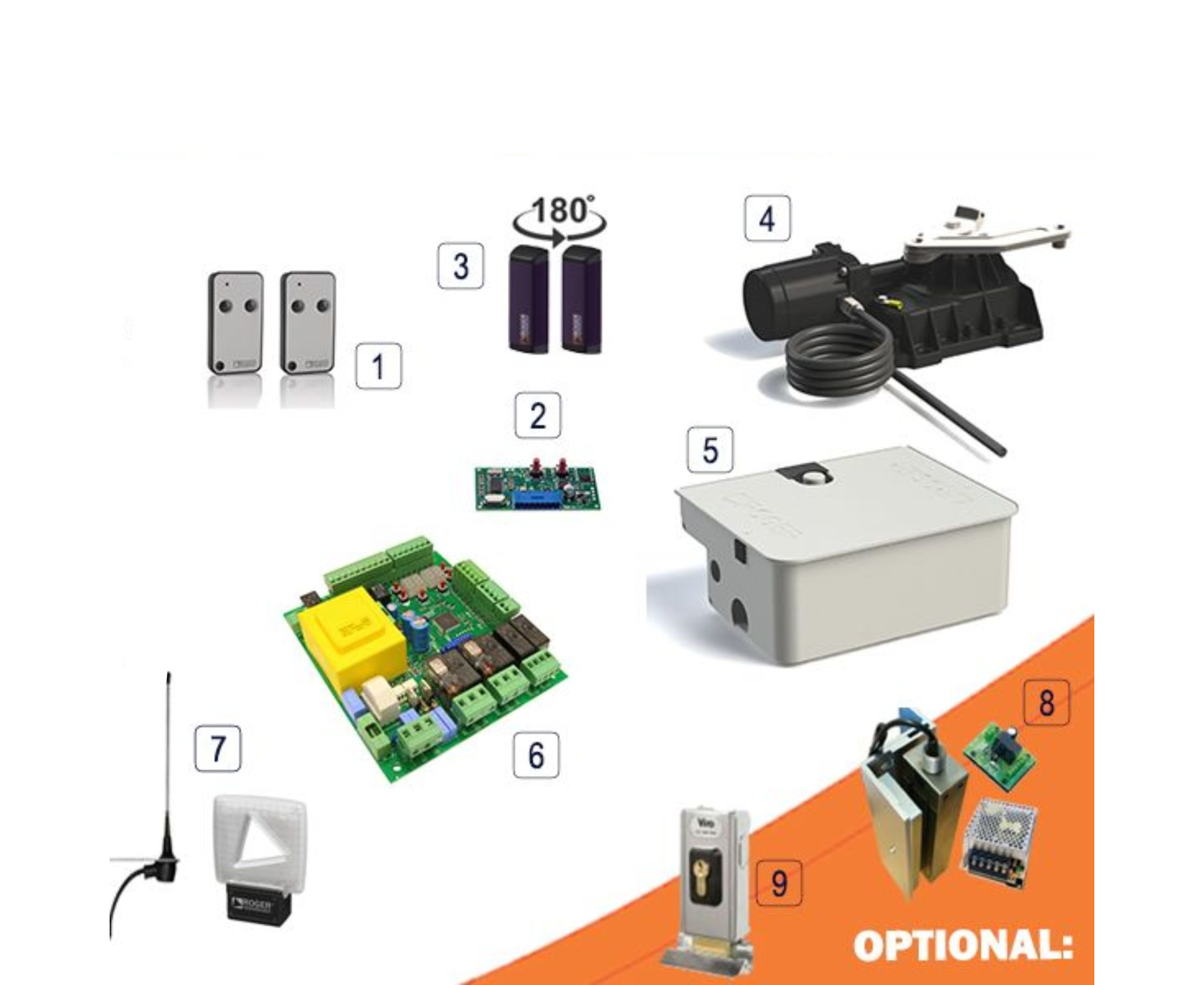

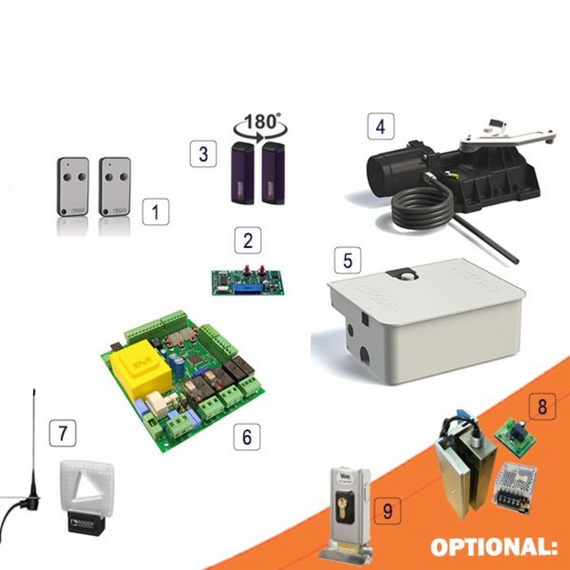

Electric Gate Kit Includes:
[1] E80/TX52R/R Remote Control (x2)
[2] H93 Receiver Card
[3] 180° Roger Technology M90 Photocells
[4] RL650 Shoe
[5] R21/351/SUB 230v Underground Motor
[6] Heavy Duty Foundation Box
[7] H70/200AC 230v Control Board
[8] Aerial / Beacon (Design may vary)
A mains filter should be fitted on the supply to the control panel.
It reduces mains interference and prolongs the life of the PCB.
If you have wooden gates then we strongly recommend the use of our adjustable bracket set as these commercial grade motors come with standard weld-on brackets.
