Radius Electric Sliding Gate Automation Kit

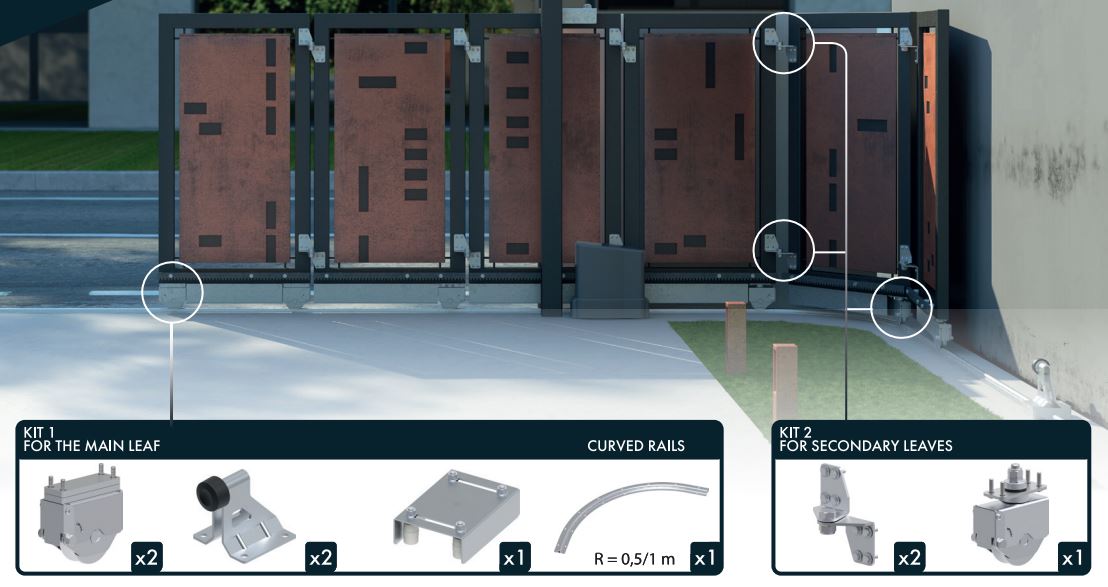

Radius sliding gates are made up of panels (typically four or five) that are hinged together and have pivoting wheels allowing the entire gate to travel around a 90 degree floor track. They are excellent for tight driveways that don't allow a gate lead to swing or slide into.
This product is a 3 part product.
The main radius sliding hardware kit are supplied with either a 500mm or 1000mm radius track. The remaining leads are then made up of a secondary leaf kits. To calculate the number of leaf's required we suggest lead widths of 1.0m wide.
Part 1) Sliding Electric Gate Kit (Roger Technology BH30/806 800kg) incuding 4m of rack. If your gate has more than 4 leafs please add the additional pieces of rack.

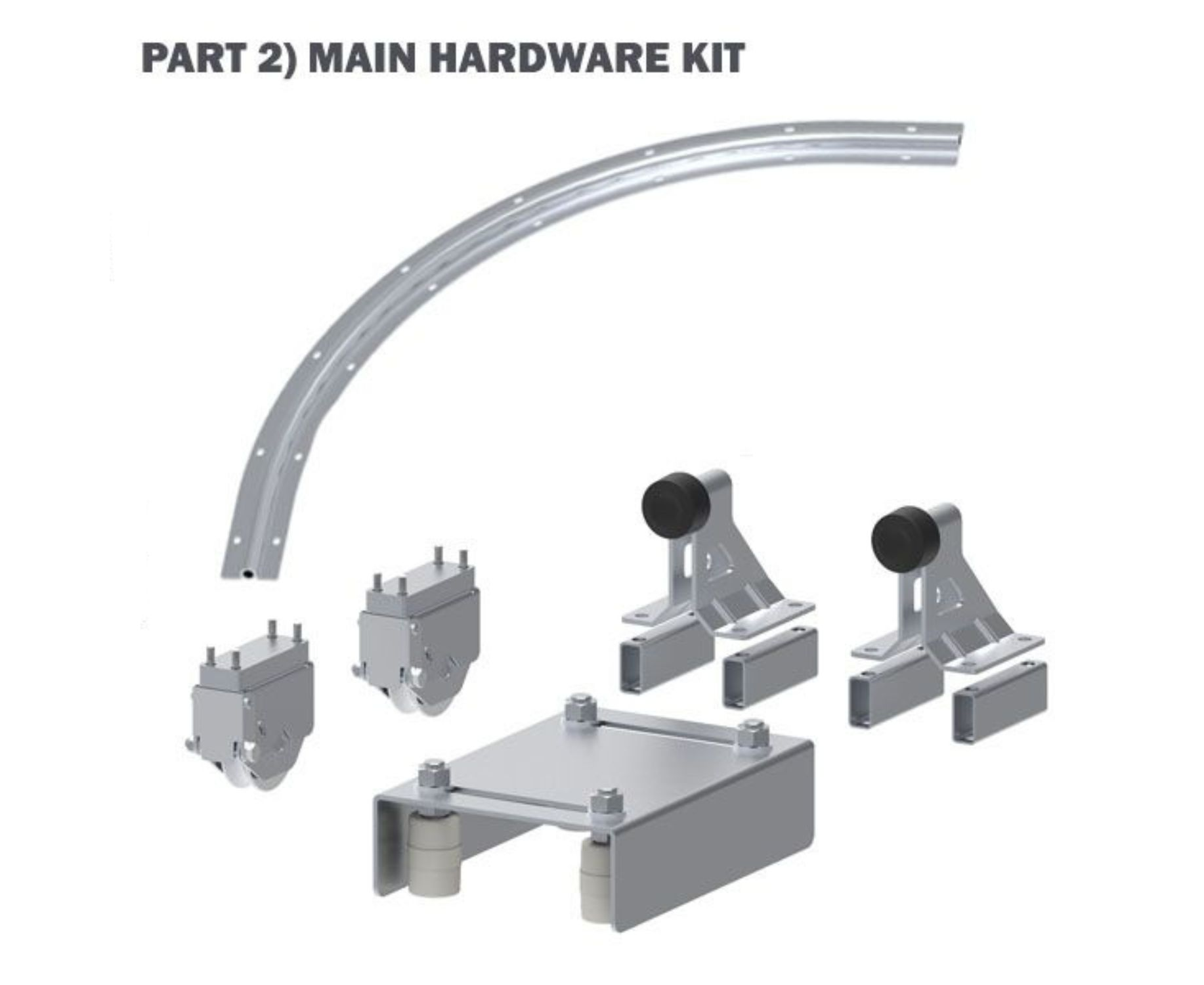

Part 2) Main Radius Sliding Hardware Kit

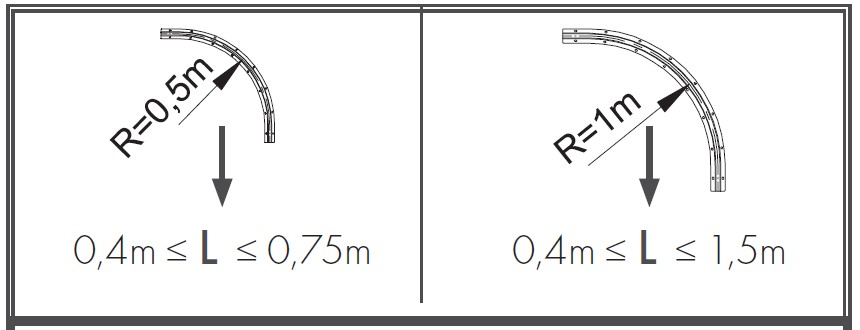

[A] 500mm Corner Kit (Leafs from 0.4m to 0.75m)
or
[B]1000mm Corner Kit (Leafs from 0.4m to 1.5m)

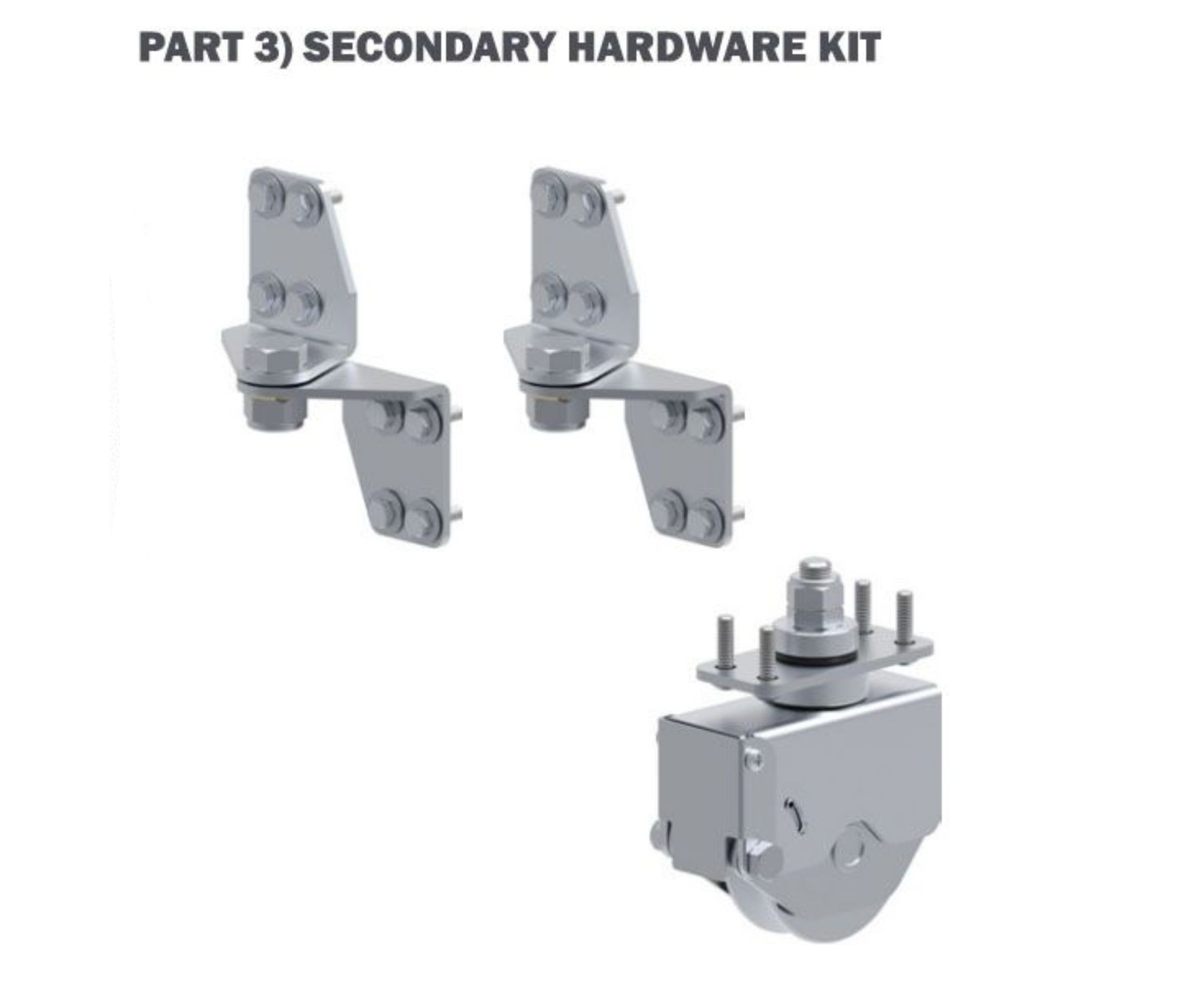

Part 3) Secondary Leaf Kits (One per partition leaf)
To calculate the number of leaf's required we suggest leaf width of 1.0m wide.
The Sliding Gate Automation Kit
The Roger Technology BH30/806 is a 800kg sliding electric gate kit which includes mechanical limit switch making it the safest sliding gate motor on the market which is perfect for domestic dwellings.
The BH30/806 BRUSHLESS motor kit, low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 800Kg. with built-in digital controller B70 series, mechanical limit switch.

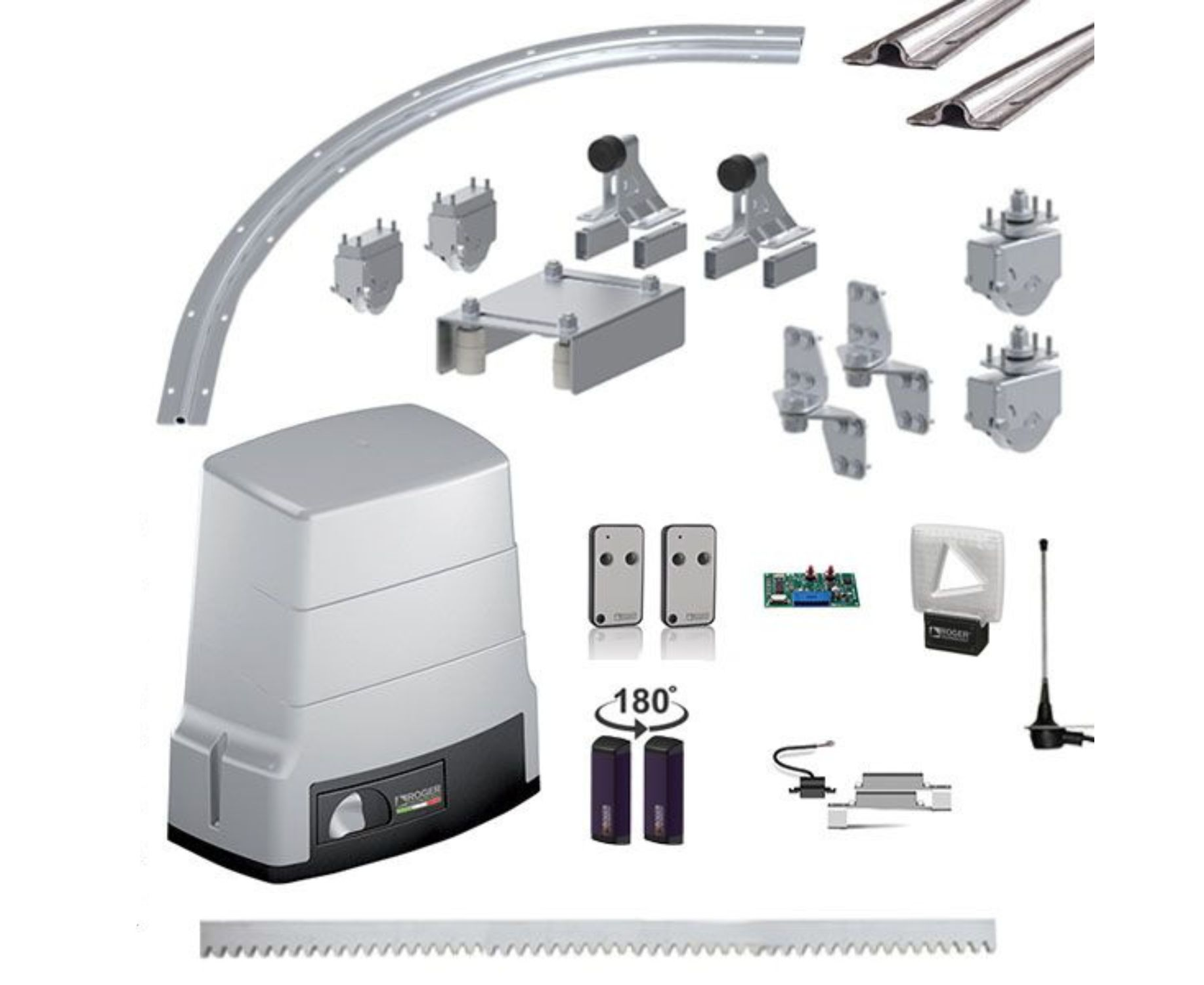

Electric Gate Kit Contents:
[1] Roger BH30/804 Super Intensive Motor & PCB Controller.
[2] E80/TX52R/R Remote Control (x2)
[3] H93 Receiver Card
[4] Aerial / Beacon (Design may vary)
[5] 180° Roger Technology M90 Photocells (Pair)
[6] MC775 Magnetic Limit Switch
Optional Extras:

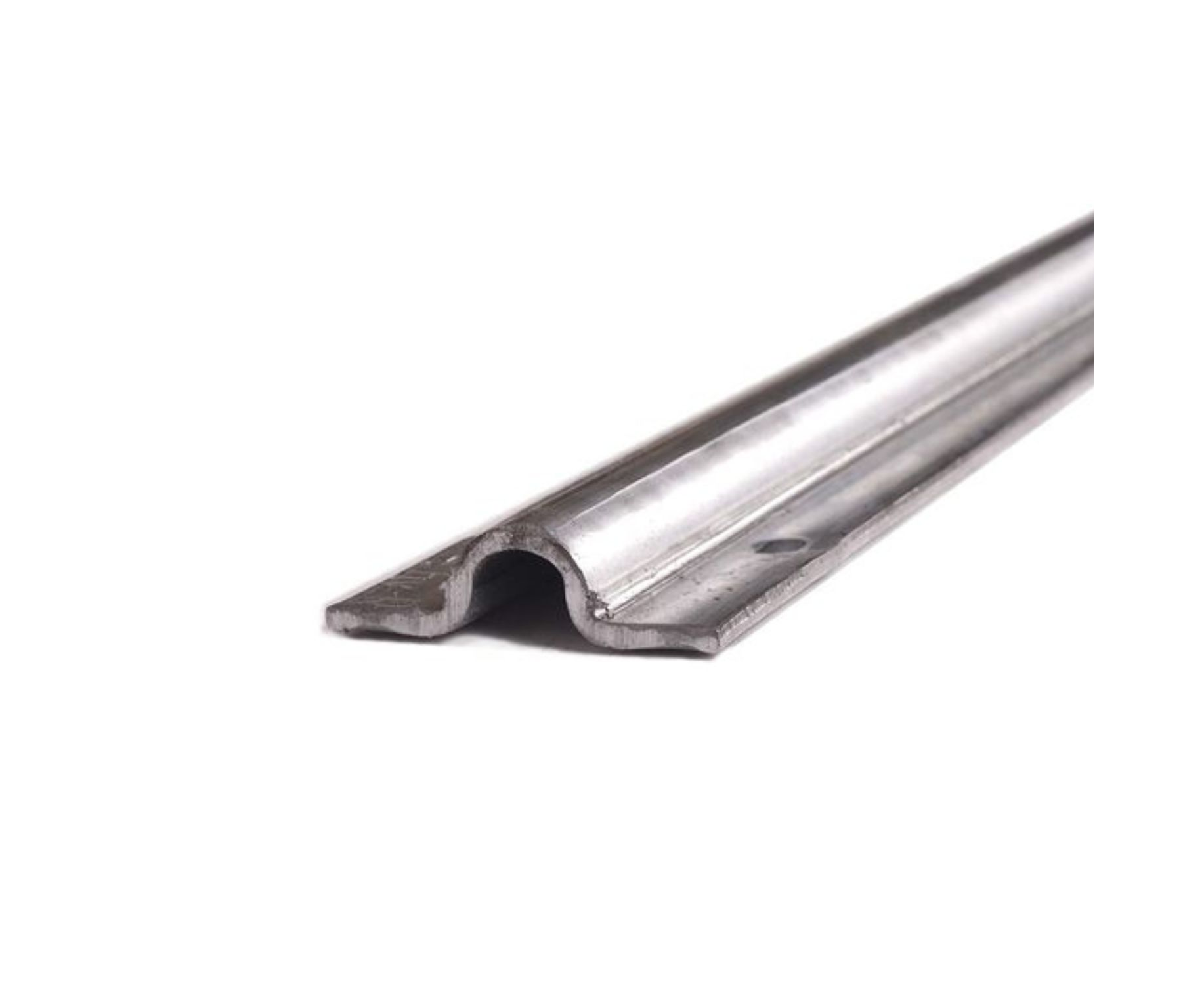

[7] 4m Steel or Nylon Rack
Electric Motor Features:
Ideal: For sliding gates up to max. 800-1000 kg.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation and start up due to its simple functions and its height and depth adjustments.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.
Technical Specifications:
Max Gate Weight: 800-1000kg
Power: 24V
Power rating: 200W
Max thrust: 50 - 1000N
The frequency of use: Intensive use
Operating temperature: -20 C° +55 C°
Protection level: IP 43 Stroke:
Manoeuvre speed: 12 m/min (0.20 m/s)
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Operating cycles per day (opening/closing - 24hrs nonstop): 1300 cycles
Limit switch: Mechanical
Reductor Type: Irreversible
