Roger Technology SMARTY4/HS 36v BRUSHLESS Electric Gate Kit - Double
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
.jpg)
The Brushless SMARTY 4 industrial motors are the largest electromechanical actuators in the Roger Technology high-speed range. Boasting features such as low voltage & super intensive use, an onboard native encoder, irreversible swing and are suitable for gate leafs up to 4m length!
The HIGH SPEED motor is capable of opening a 4m gate to 90° in just 15-25 seconds.
The SMARTY motors are the ideal replacement for hydraulic motors on large gates, bringing the next generation of an onboard safety features. The Edge 1 control board brings features like separate motor power on open and close, and it will run a magnetic lock straight from the board.

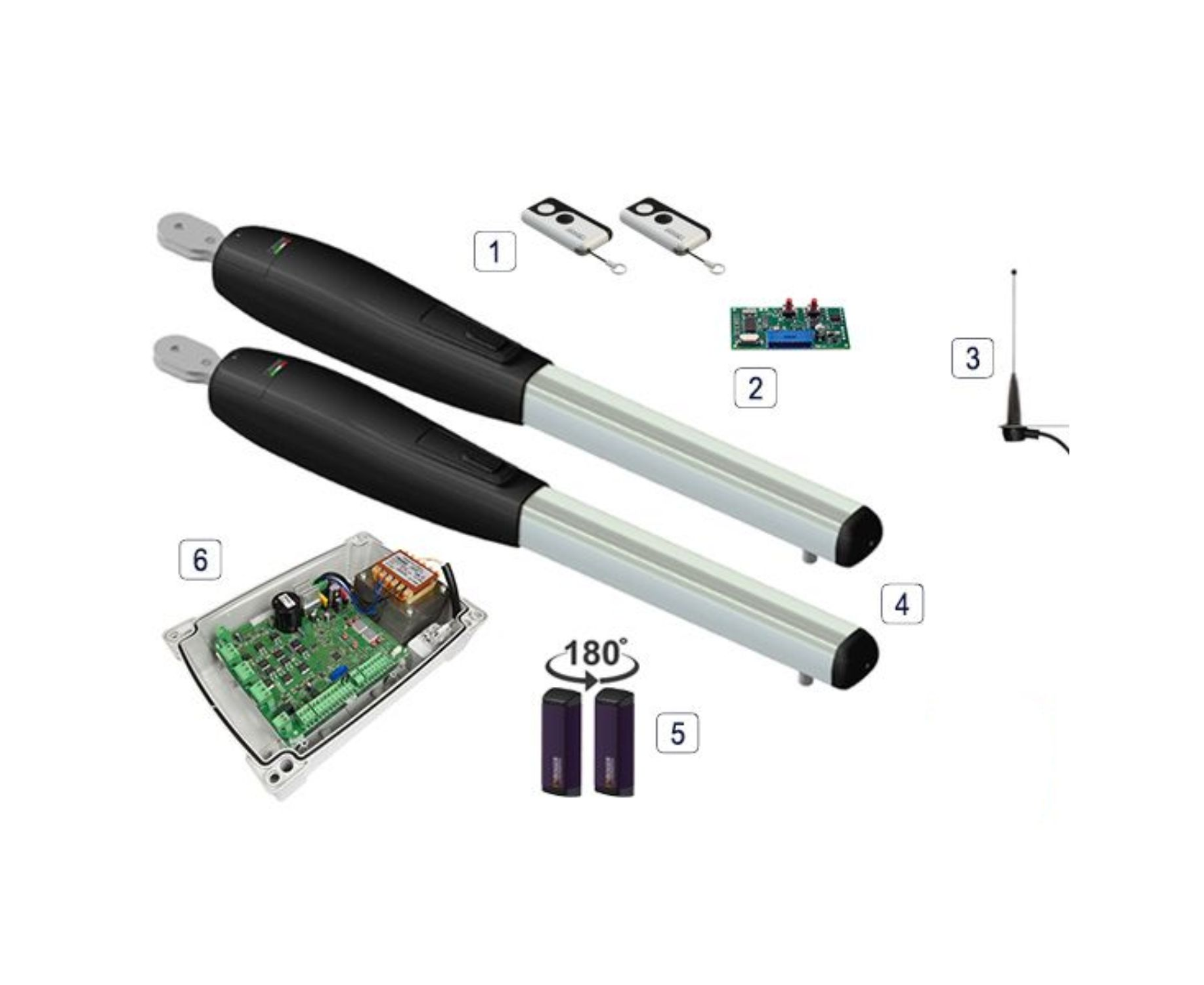

Electric Gate Kit Contents:
[1] SYNUS Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial/Antenna
[4] SMARTY4/HS Super Intensive Motor (x2)
[5] 180° Roger Technology M90 Photocells
[6] Edge 1 'Digital' Brushless Controller
Optional Extras:

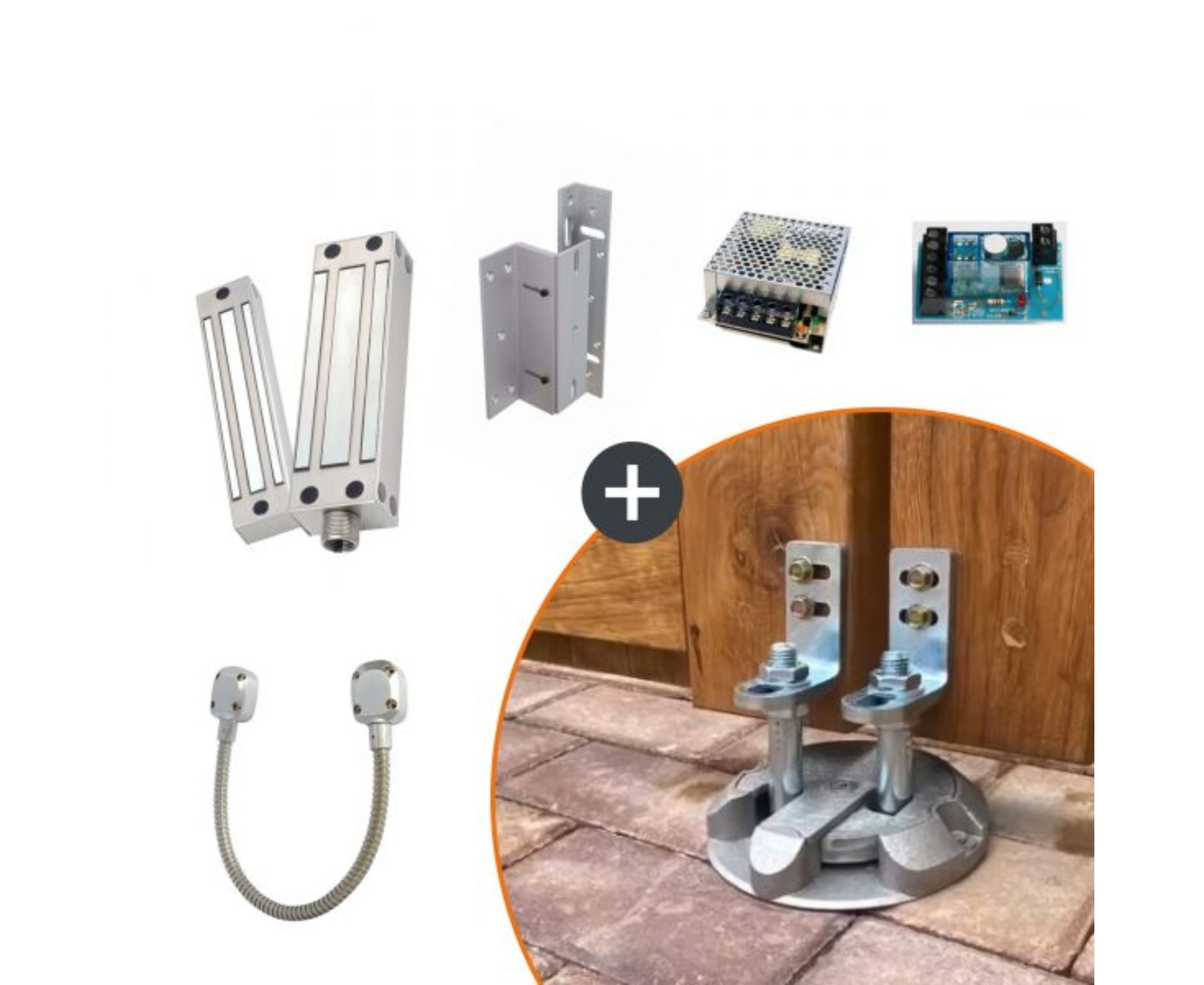

Double Gate Magnetic Lock Kit [A]
Interlocking floor device (left or right)
Adjustable pin and bracket kit (8mm Bracket)
Door Loop
250kg Maglock
Z & L Bracket
VHLR - Relay
2.5amp Lock Power Supply
Features:
Super Intensive Use: Capable of running non-stop.
Twin Heavy Duty Bearings. For swing gates up to 4m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and startup due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate the lock
Convenient: Battery back up available.
Technical Specifications.
Power 230V AC - 50Hz
Power rating 200W
Max thrust 600 - 7000N
Frequency of use Intensive use
Operating temperature -20 C° to 55 C°
Protection level IP 44
Stroke max 370 mm
Manoeuvre speed 1,66 cm/s
Opening time at 90° 15-25 s/90°
Maximum dimension product in mm L1162 x W166 x 137H
Operating cycles per day (opening/closing - 24 hours non-stop) 1000 cycles
Limit switch Mechanical stopper in opening and closing
Always included in the individual product package or kit Kit 3 hinge plates short, to weld.(KT238), 2 mechanical stop (MC782)
Reductor Type Irreversible
.JPG)
