The Brushless SMARTY 4 industrial motors are the largest electromechanical actuators in the Roger Technology high speed range. Boasting features such as low voltage & super intensive use, an on-board native encoder, irreversible swing and are suitable for gate leafs up to 4m length!
The high speed motor is capable of opening a 4m gate to 90° in just 15-25 seconds.
The SMARTY motors are the ideal replacement for hydraulic motors on large gates, bringing the next generation of an on-board safety features.The Edge 1 control board brings features like separate motor power on open and close, and it will connect a magnetic lock from the board.

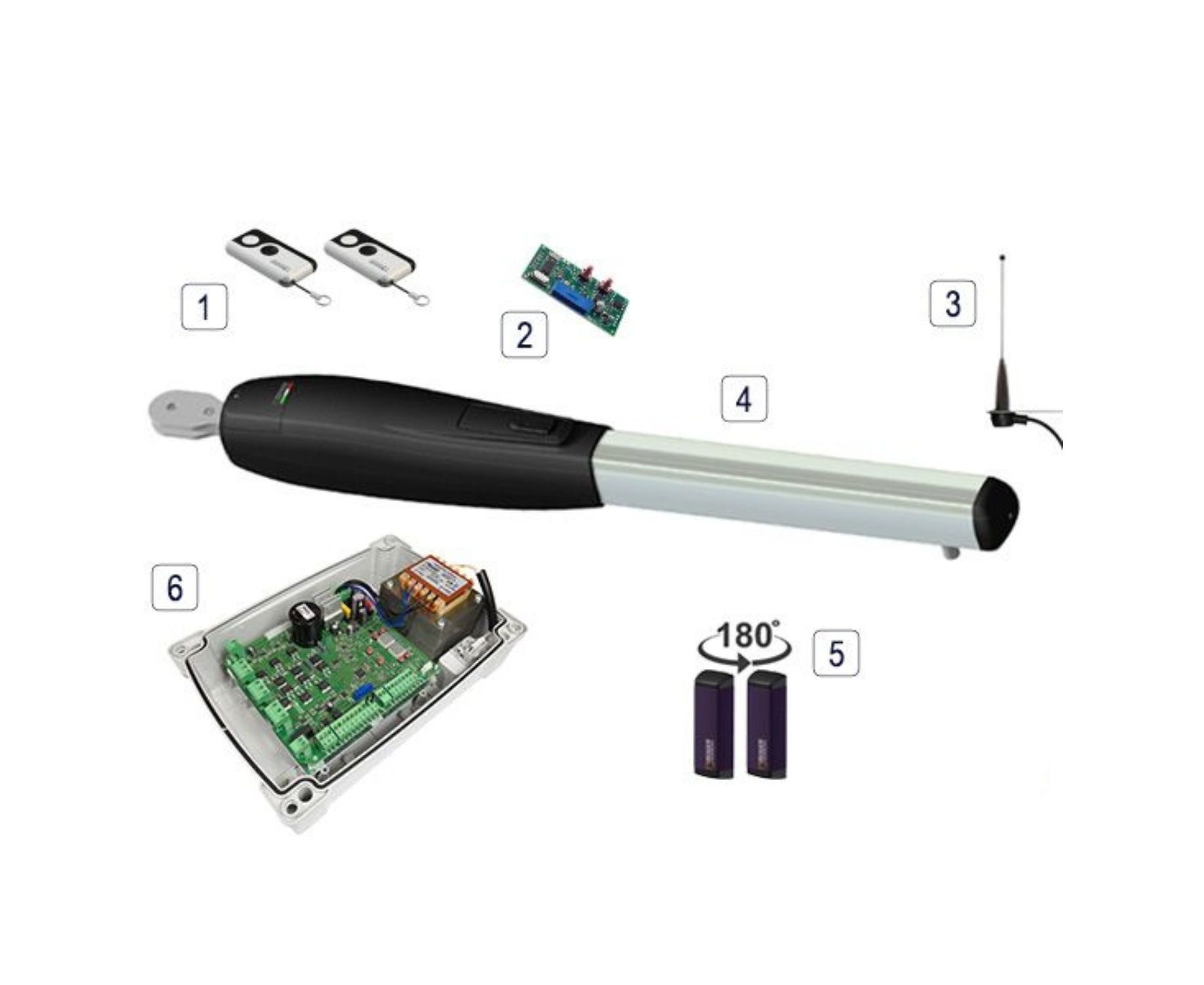

Electric Gate Kit Contents:
[1] SYNUS Remote Control (x2)
[2] H93 Receiver Card
[3] Aerial/Antenna
[4] SMARTY4/HS Super Intensive Motor (x1)
[5] 180° Roger Technology M90 Photocells
[6] Edge 1 'Digital' Brushless Controller

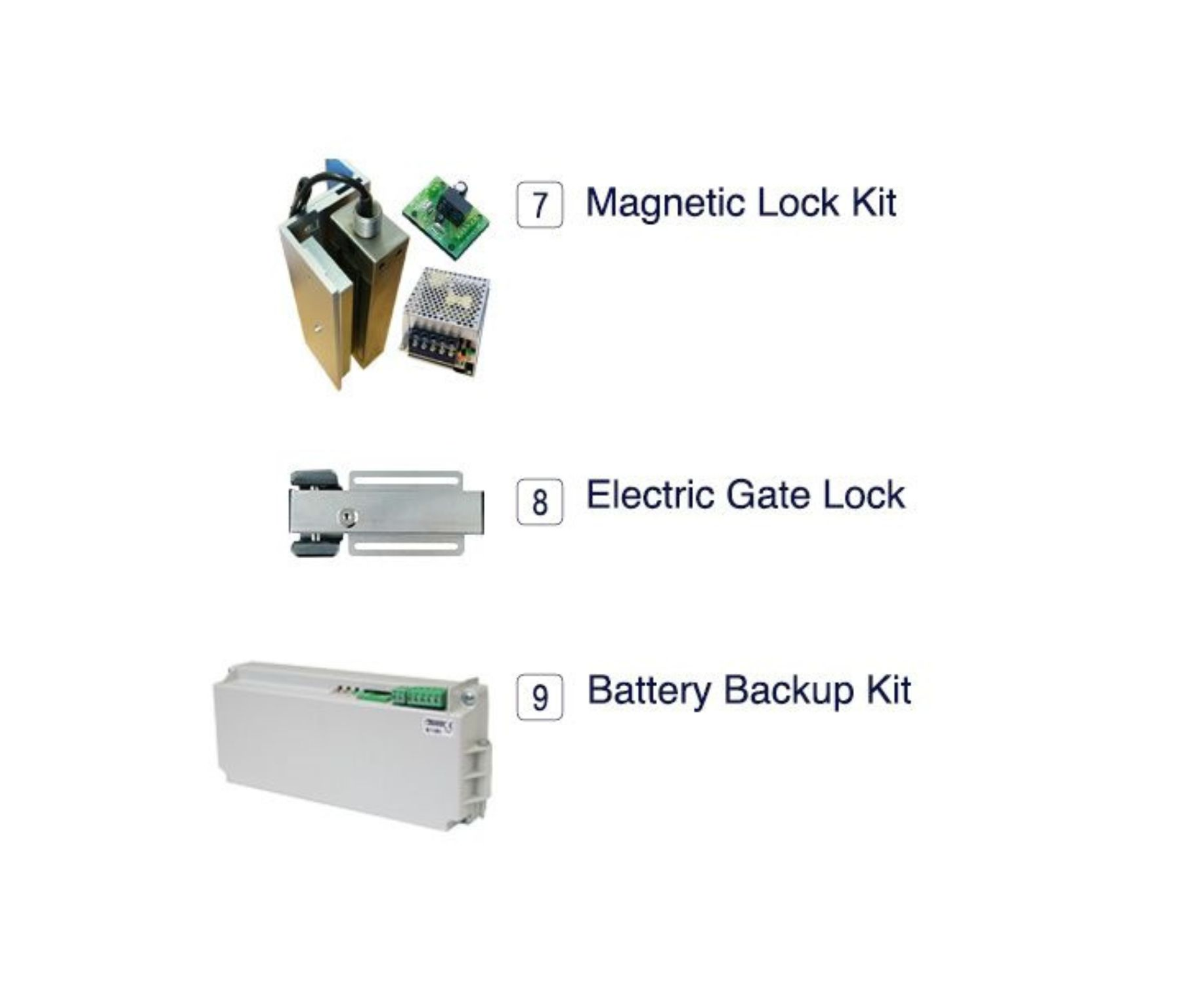

Optional Extras:
[7] Magnetic Lock Kit
[8] Single Electric Gate Lock
[9] B71/BC/INT Battery Backup
Kit Features Include:
Super Intensive Use: Capable of running non-stop.
Twin Heavy Duty Bearings. For swing gates upto 4m per leaf.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation, and start up due to its simple functions.
Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings, equipped with a release lever and an easy to operate lock
Convenient: Battery back up available.
NEW! Roger Brushless SMARTY® Encoder
New encoder for the Smarty series, now available to purchase alongside your kit. See purchasing options below.
Kit Contains:
[1] 2 x E80/TX52R/R Remote Control
[2] H93 Receiver Card
[3] FIFTY Beacon / Antenna
[4] Roger Technology Smarty 4 Brushless 36v High Speed Brushless Motor
[5] Roger Technology EDGE1 Digital Brushless Controller
[6] M90 180° Photocells
[7] Magnetic Lock Kit
[8] Viro V06 Lock
[9] B71/BC/INT Battery Backup
Power 230V AC - 50Hz
Power rating 200W
Max thrust 600 - 7000N
Frequency of use Intensive use
Operating temperature -20 C° to 55 C°
Protection level IP 44
Stroke max 370 mm
Manoeuvre speed 1,66 cm/s
Opening time at 90° 15-25 s/90°
Maximum dimension product in mm L1162 x W166 x 137H
Operating cycles per day (opening/closing - 24 hours non stop) 1000 cycles
Limit switch Mechanical stopper in opening and closing
Always included in the individual product package or kit Kit 3 hinge plates short, to weld.(KT238), 2 mechanical stop (MC782)
Reductor Type Irreversible
A mains filter should be fitted on the supply to the control panel. It reduces mains interference and prolongs the life of the PCB.
If you have wooden gates then we strongly recommend the use of our adjustable bracket set as these commercial grade motors come with standard weld-on brackets.
