TW90 Electric Sliding Gate Automation Kit
TW90 Tower Electric Sliding Gate Automation Kit High Speed Sliding gate motor 600kg with prewired control unit designed for adjustable fitting on the gate post.
Electromechanical BRUSHLESS motor, low voltage, super intensive use, with SENSORED digital magnetic encoder at 4096 PPR, reversible, ideal for sliding gates
up to 800kg with digital controller series B70 in prewired plastic box, without limit switch

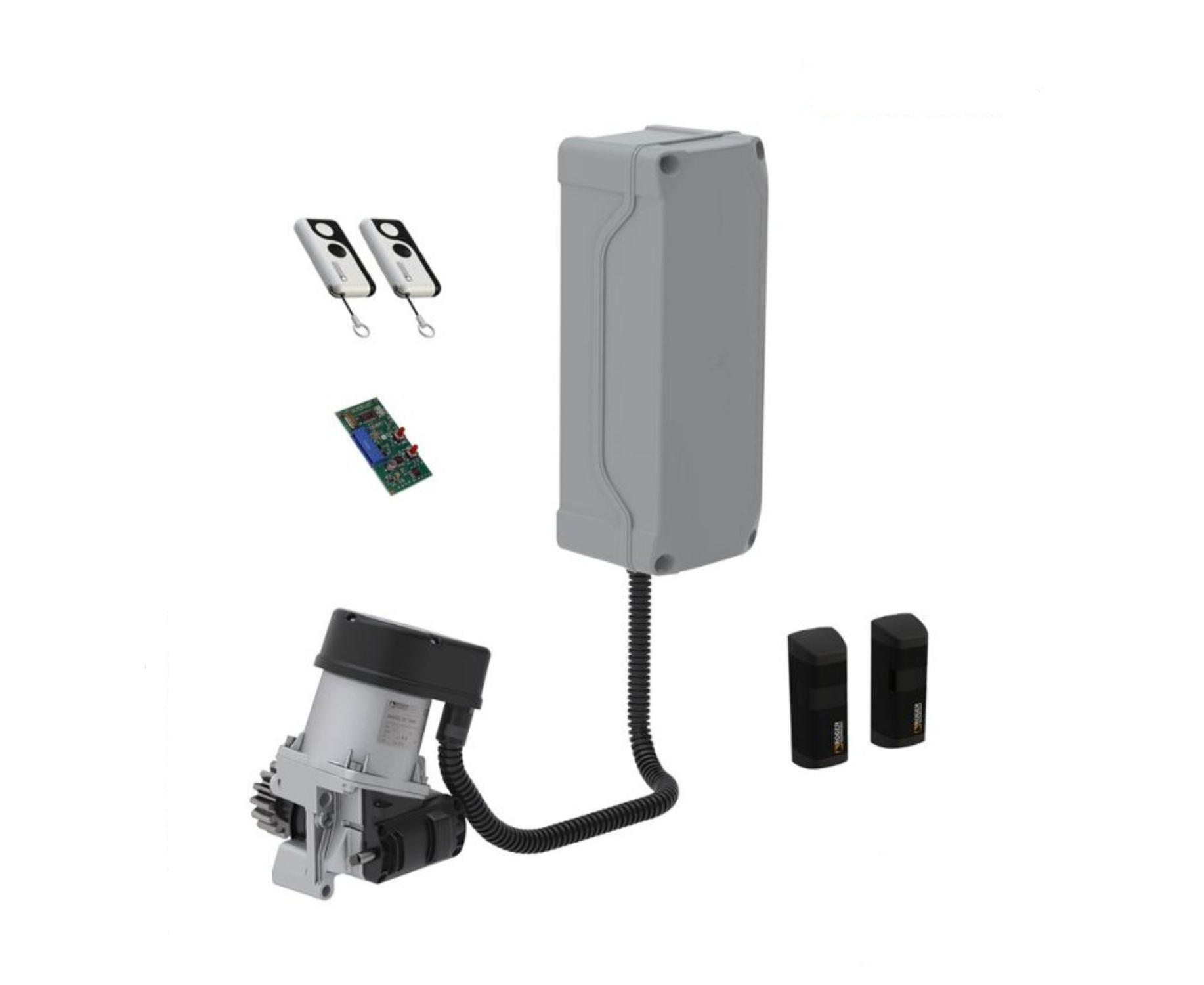

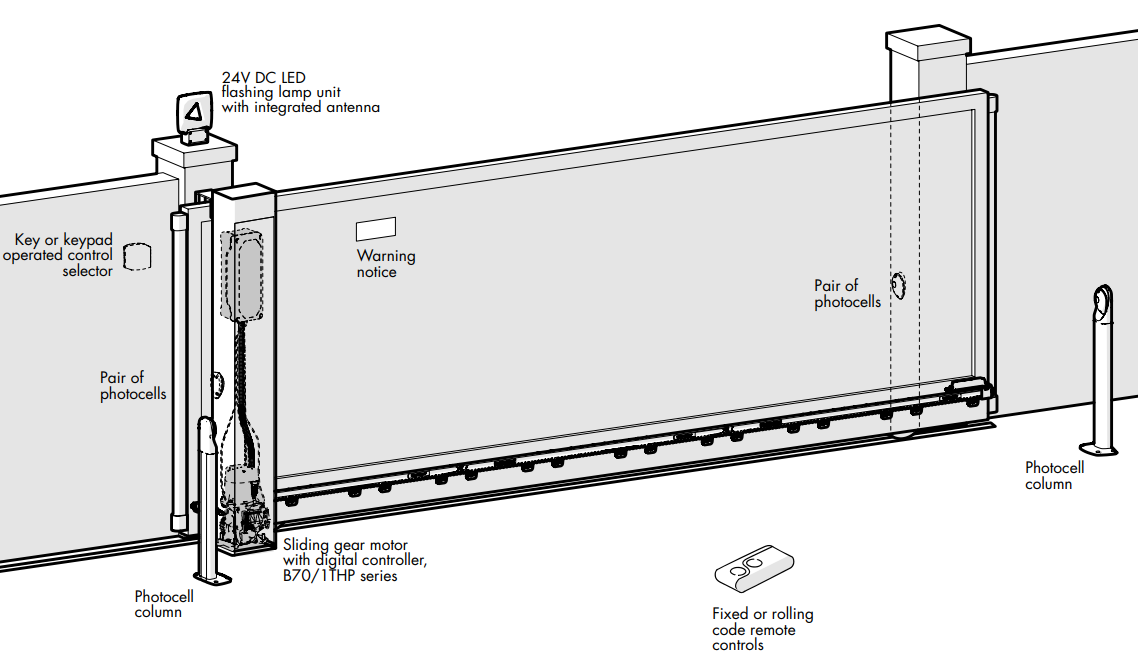

Electric Gate Kit Contents:
Roger Technology TW90/620/HS 600kg High Speed Sliding Gate Motor & PCB Controller
SYNUS Remote (x2)
H93 Receiver Card
180° Roger Technology M90 Photocells
Additional Extras:

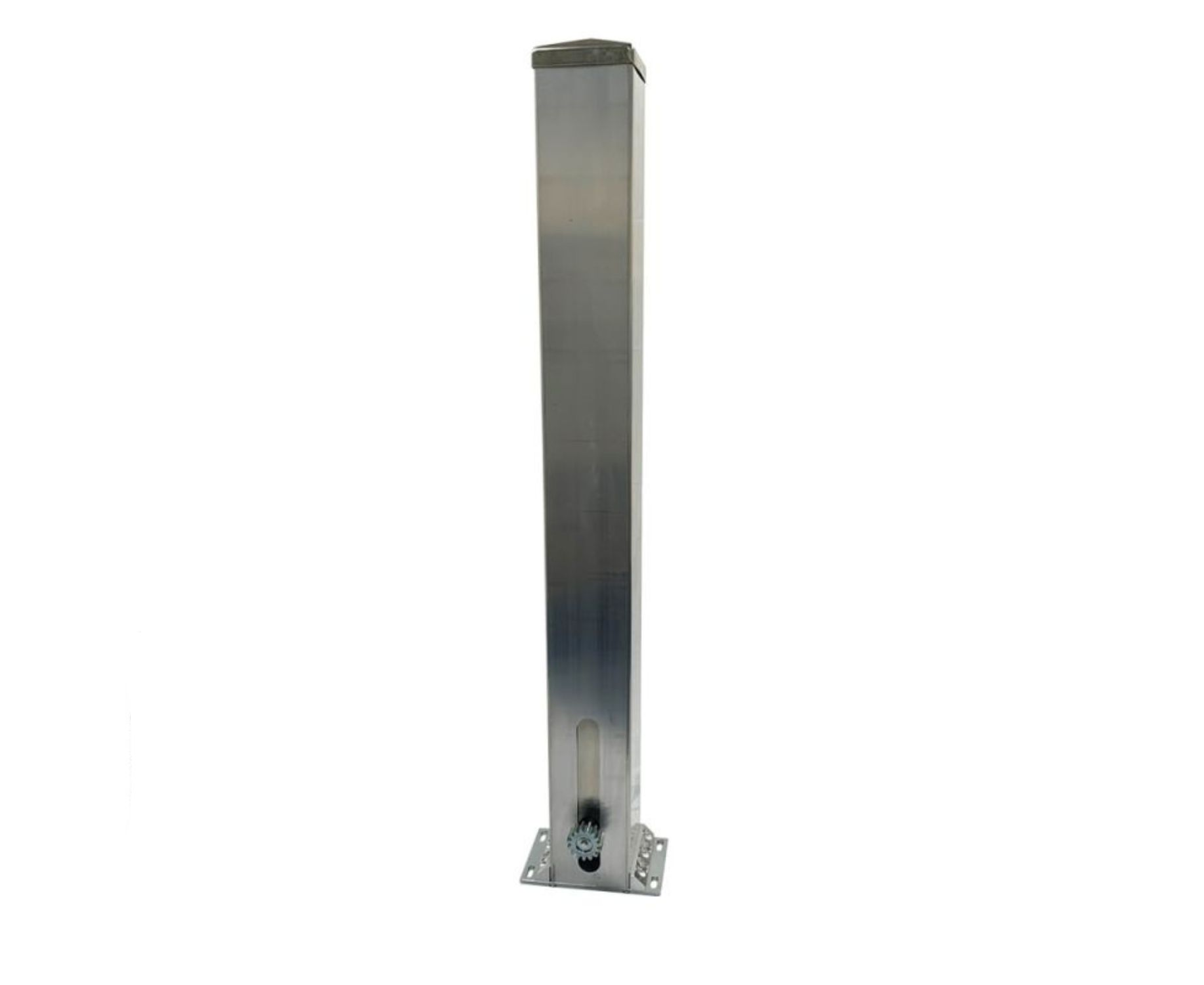

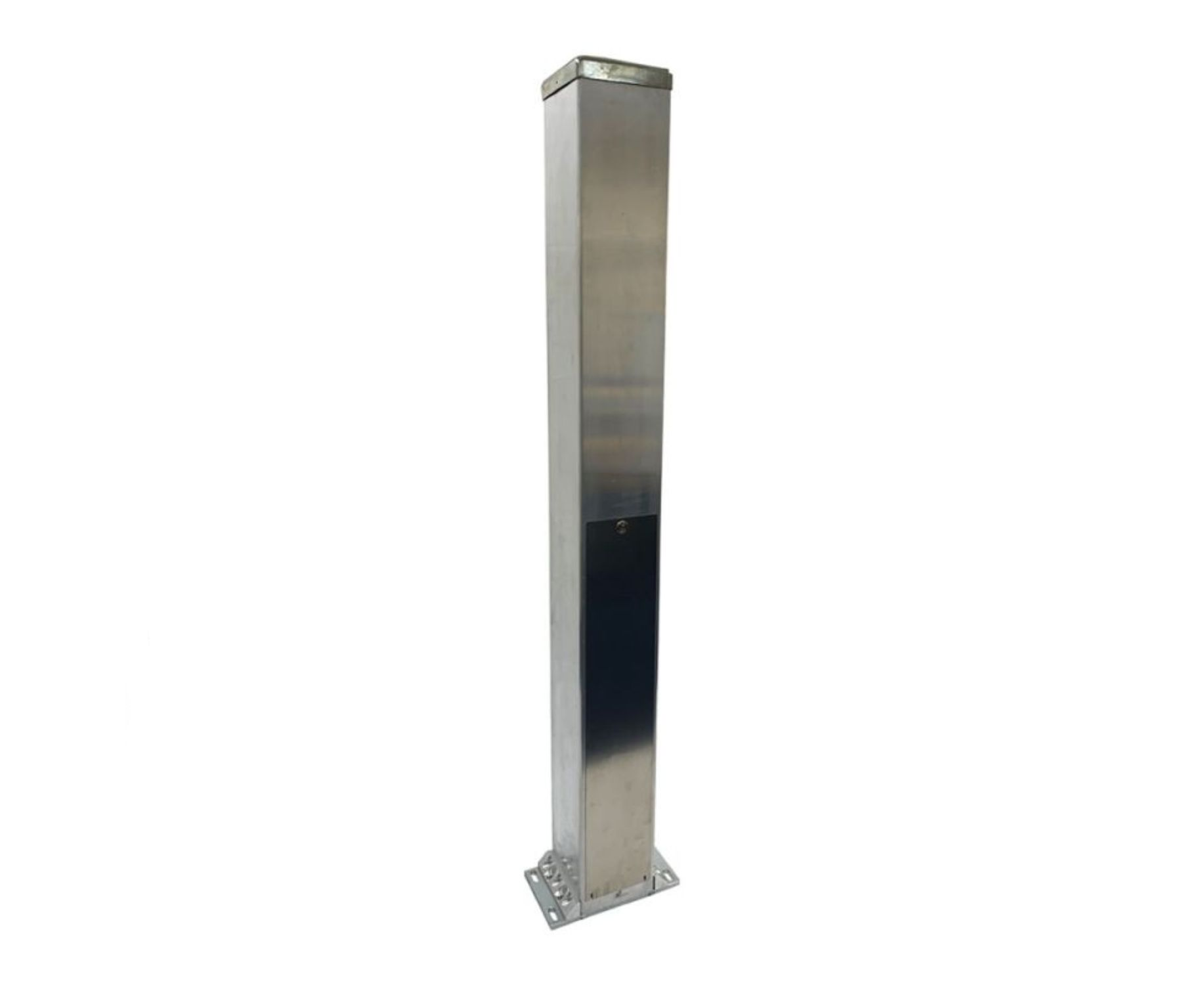

Motor Housing & Support Post
B71/BC-+-BT12V12-Internal-Battery-Backup-Kit
MC789 Magnetic Limit Switch
Aerial/Antenna
Electric Motor Features
Ideal: For sliding gates up to max. 600kg.
Safe: The encoder management allows a precise and safe control of slowdown when opening and closing.
Practical: Automatic programming, via the learning function of the control unit.
Quick: Ease of installation and start up due to its simple functions and its height and depth adjustments.

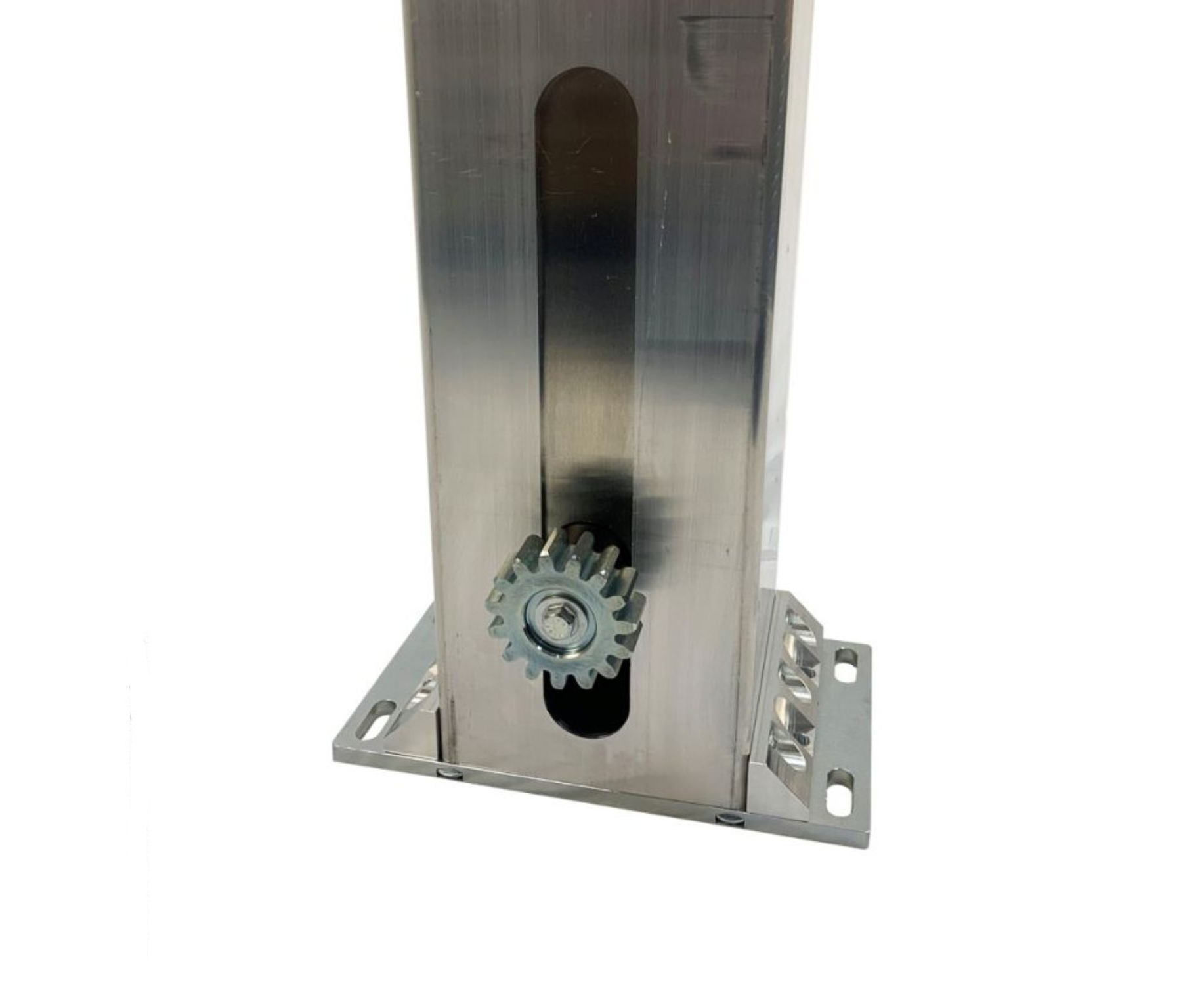

Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor, mounted in dedicated housings and bearings.
Equipped with a release lever and an easy to operate the lock.
Convenient: Battery back up available.

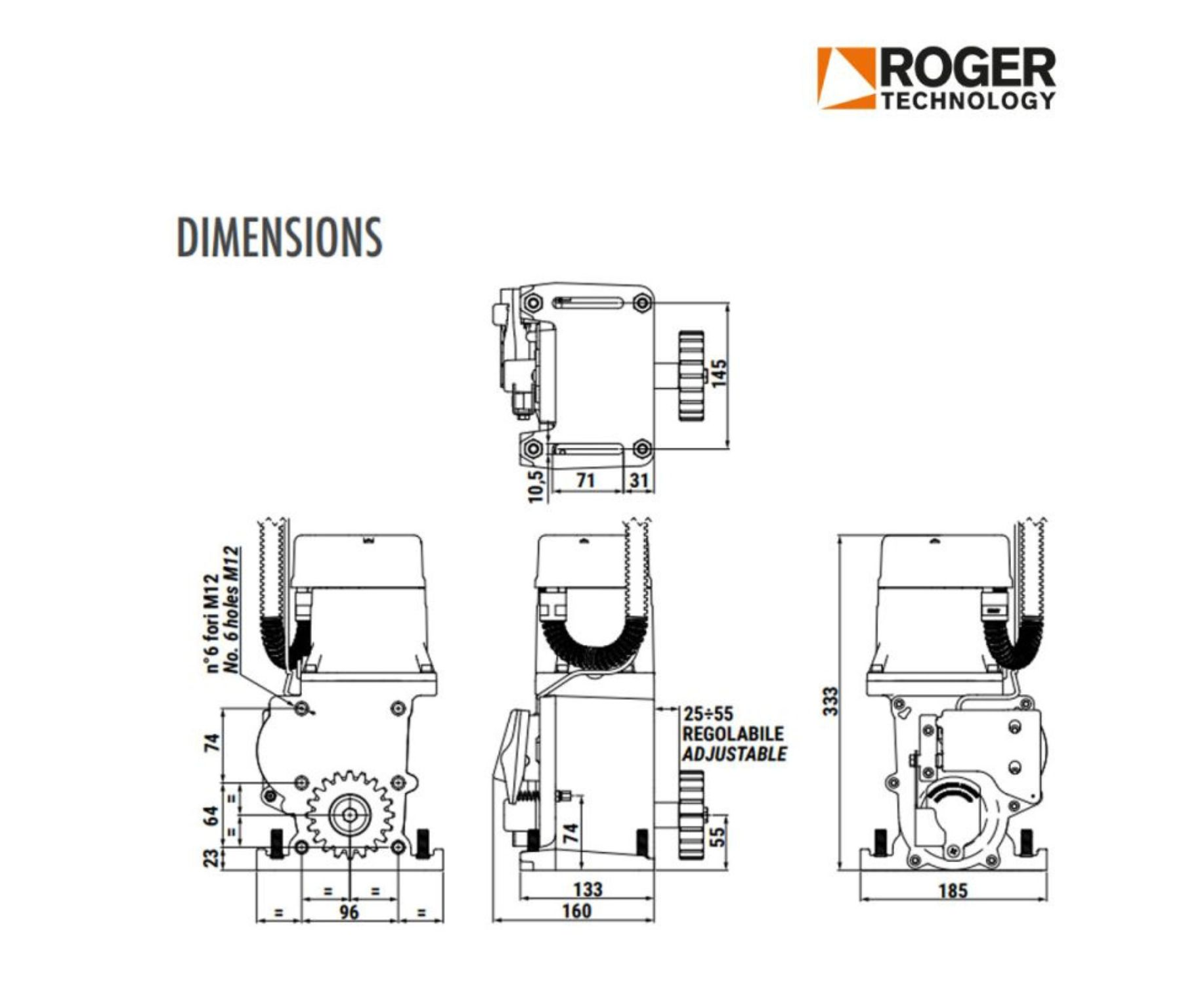

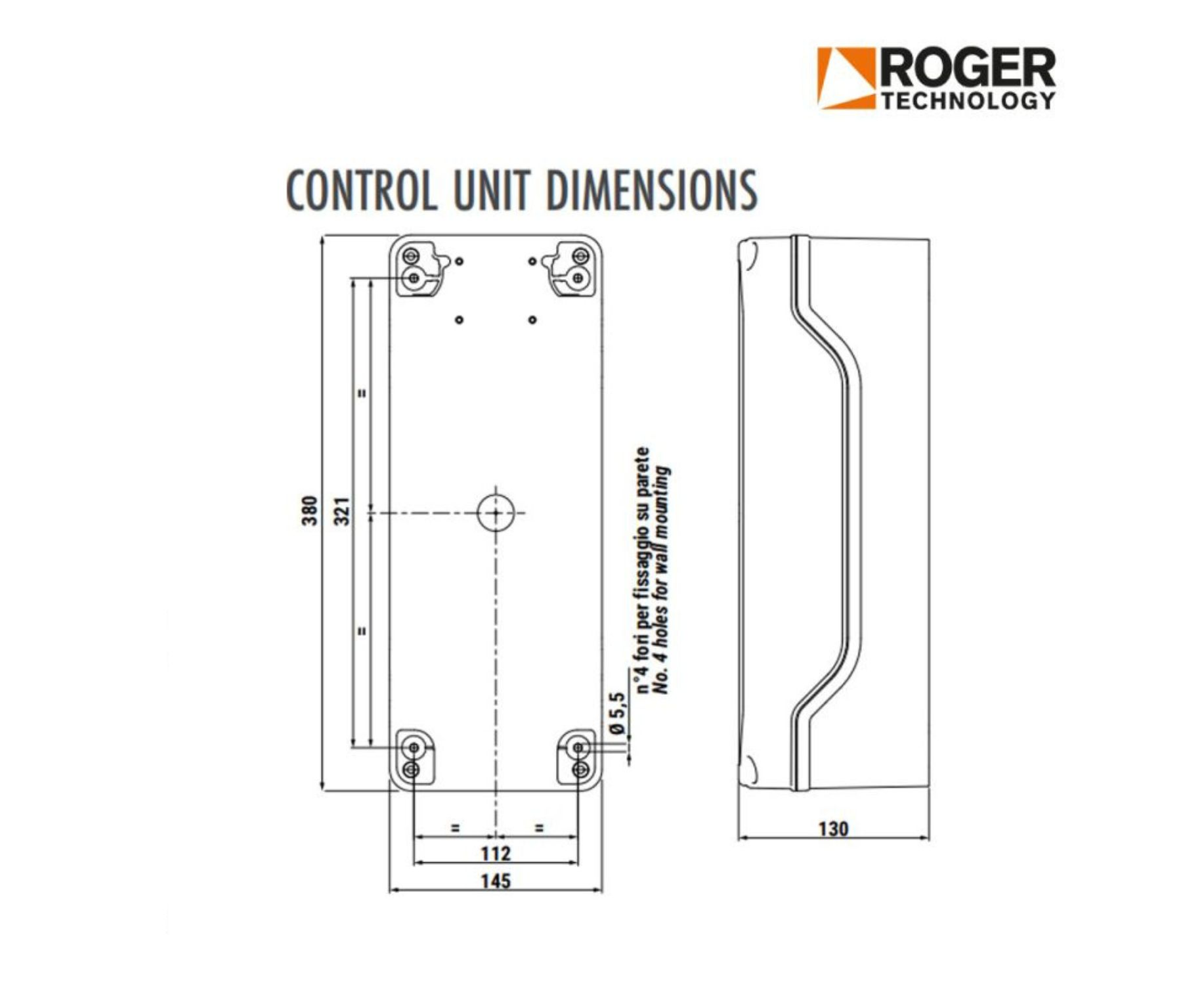

Technical Specifications:
Max Gate Weight: 600kg
Power: 36V
Power rating: 180W
Max thrust: 250 N (@1530 RPM)
The frequency of use: Intensive use
Operating temperature: -20 C° +55 C°
Protection level: IP44
Manoeuvre speed: 25 m/min (0.42 m/s)
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Operating cycles (internally tested): 15,000 cycles
Limit switch: Magnetic
