Ruijie Reyee RG-RAP1201 WiFi 5 Access Point (1.2Gbps AC)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

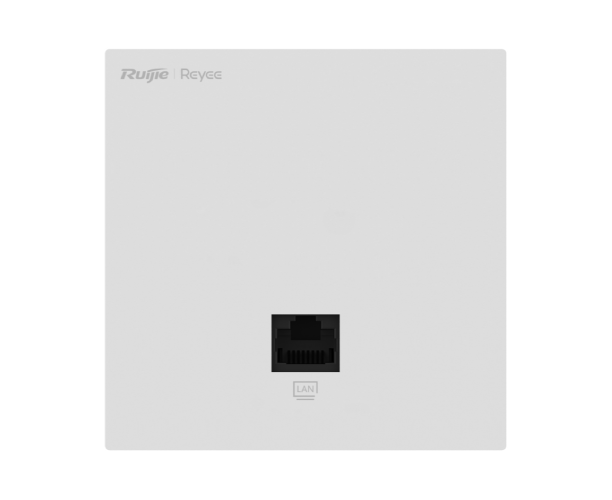

Ruijie Reyee RG-RAP1201 – WiFi 5 Access Point (1.2 Gbps AC)
Product Overview
The Ruijie Reyee RG-RAP1201 is a high-performance WiFi 5 (802.11ac) access point designed to deliver fast and reliable wireless connectivity for homes, offices, and small to medium-sized businesses. With combined speeds of up to 1.2 Gbps across dual bands (2.4 GHz and 5 GHz), it ensures seamless streaming, low-latency gaming, and smooth connectivity for multiple devices simultaneously.
Key Features
-
Dual-Band WiFi 5 (AC) – Provides simultaneous 2.4 GHz (up to 300 Mbps) and 5 GHz (up to 867 Mbps) connectivity for improved network performance.
-
1.2 Gbps Combined Speed – Ensures high-speed wireless connections for multiple devices without congestion.
-
MU-MIMO Technology – Supports multiple devices simultaneously, reducing latency and improving overall network efficiency.
-
Easy Deployment & Management – Supports cloud or local management for simple configuration and monitoring.
-
Flexible Mounting Options – Ceiling or wall mountable for optimal coverage in offices, classrooms, or commercial spaces.
-
Security Features – WPA/WPA2 encryption, guest network isolation, and secure management to protect network data.
-
Energy Efficient & Compact Design – Sleek, low-profile design with low power consumption suitable for modern workspaces.
Ideal Applications
-
Offices and co-working spaces needing reliable high-speed WiFi.
-
Small to medium-sized businesses requiring multiple concurrent device connections.
-
Educational institutions, classrooms, and libraries.
-
Retail environments or hospitality venues providing guest WiFi.
-
Homes with multiple streaming devices, gaming consoles, and smart devices.
Why Choose RG-RAP1201
The RG-RAP1201 combines WiFi 5 performance, MU-MIMO efficiency, and easy management in a compact, energy-efficient access point. It delivers consistent connectivity, fast speeds, and secure wireless networking, making it a cost-effective solution for homes and businesses looking to expand or upgrade their wireless network infrastructure.
