Ruijie RG-EW1200G PRO 1300m Dual Band Gigabit Wireless Router
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

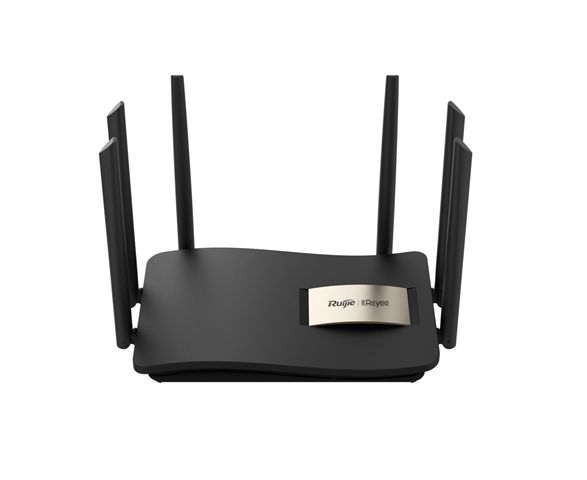

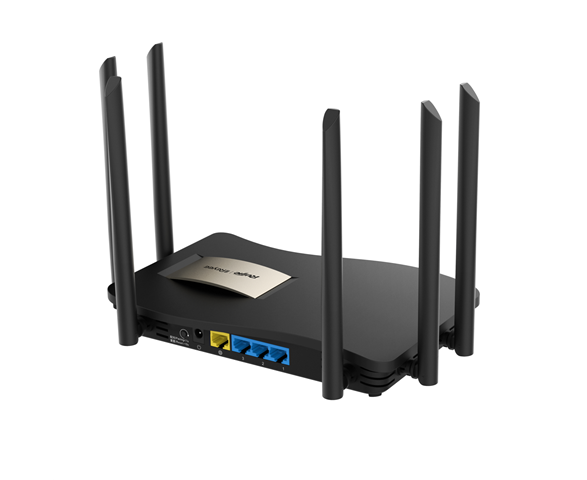

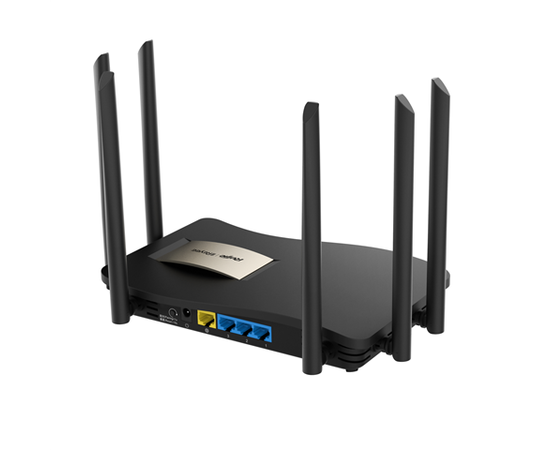

Ruijie Reyee RG-EW1200G PRO is a Gigabit dual-band wireless router designed for all types of scenarios. It comes with the next-generation Wi-Fi standard 802.11ac Wave2 boosting up to 1267Mbps, which enables seamless 4K streaming. With built-in high-power amplifiers and multiple external antennas, additionally, with MU-MIMO technology and beamforming technology, EW1200G PRO brings optimized Wi-Fi coverage throughout all types of space.
RG-EW1200G PRO is also equipped with Ruijie Cloud App to support comprehensive ways of smart management and remote operations.
In addition to Ruijie' s Reyee Mesh Technology, the router also supports network deployment with Ruijie Reyee Series enterprise
gateways and APs for unified management and configuration. No matter which networking method is used, the RF adjustment
algorithm applied to millions of Ruijie enterprise-grade APs can provide seamless roaming between devices and fast switching
between 2.4GHz and SGHz. Users can move around the Wi-Fi coverage area without service interruption thanks to the seamless roaming.
- Supports 802.11ac wave2

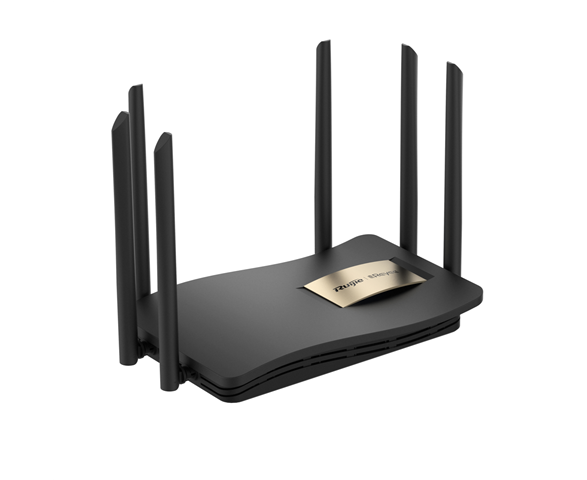

- 6 omnidirectional antennas provide strong wifi signal
- Full coverage, easy setup, seamless roaming
- Parental Control & Health Mode

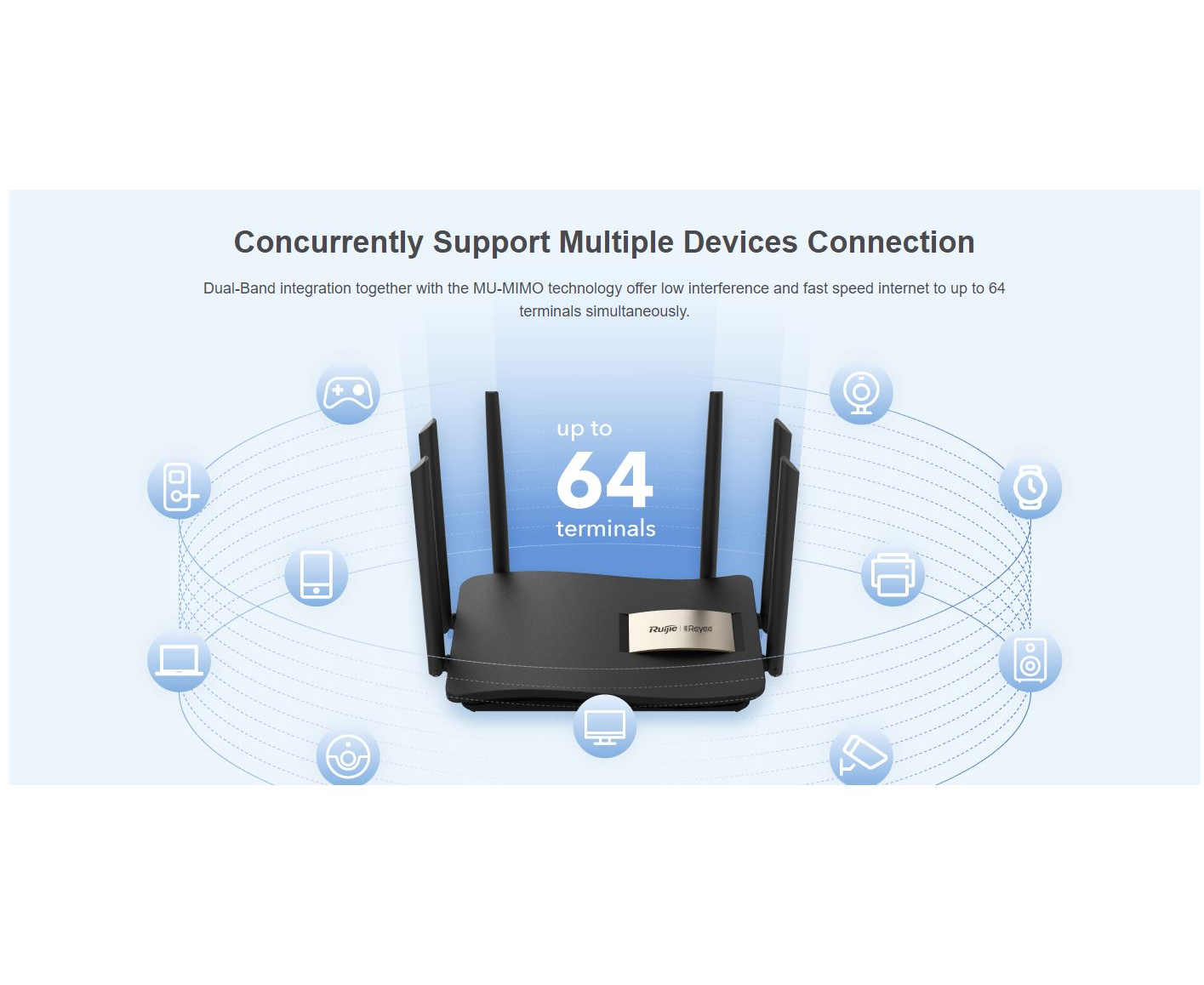

- Concurrently support up to 64 devices connection
- Easy network management at your fingertips with Reyee Router App
