Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Product Description

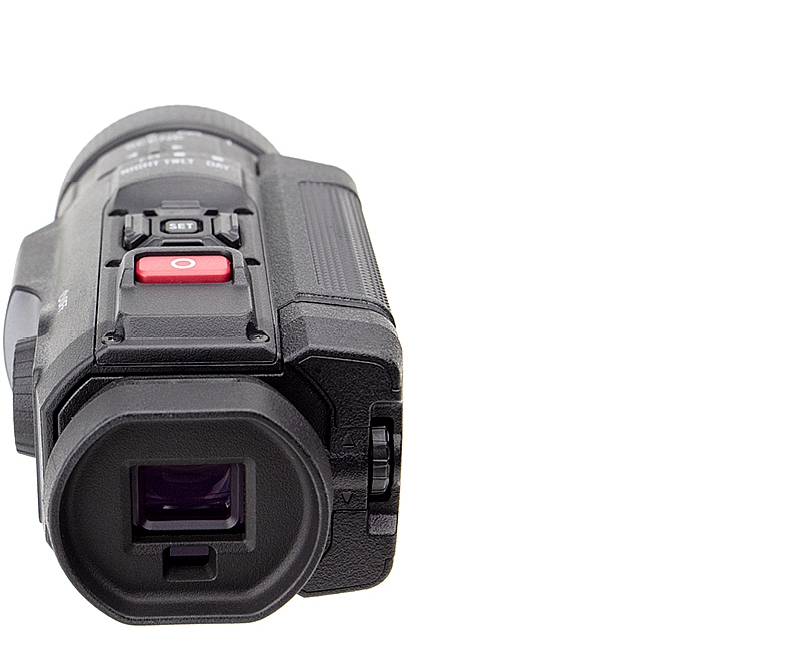

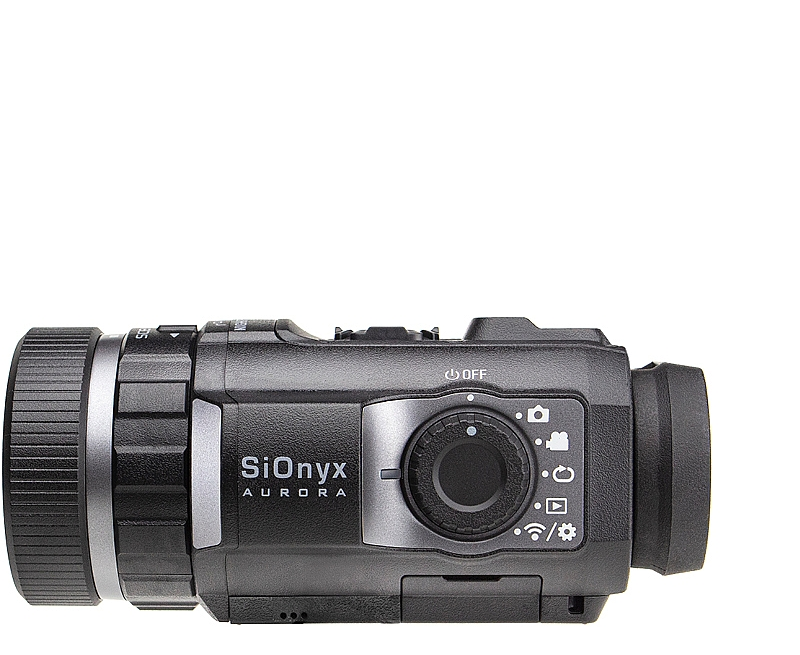

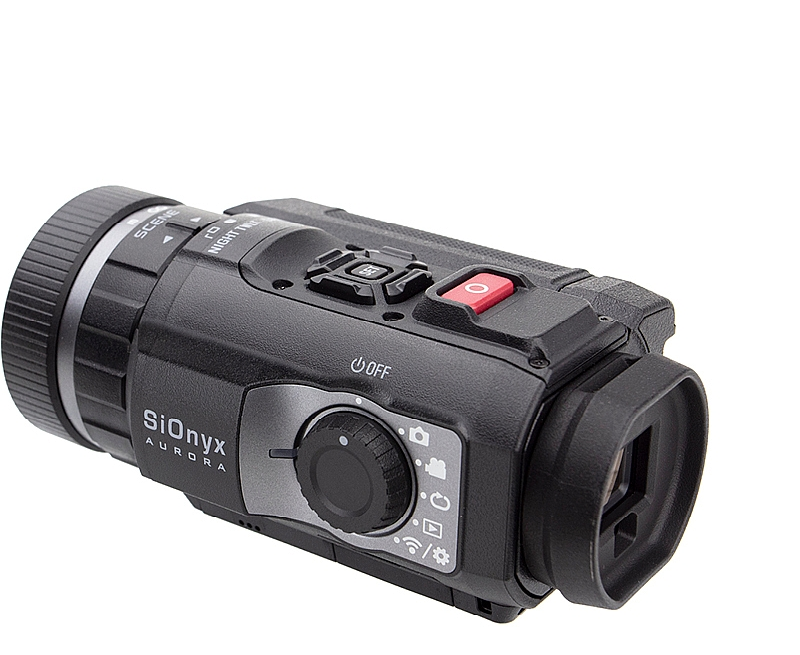

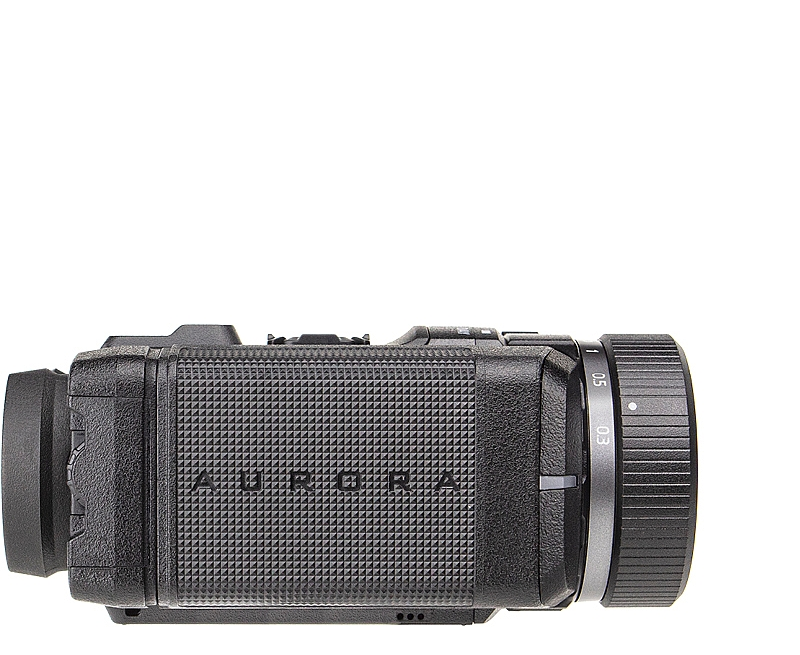

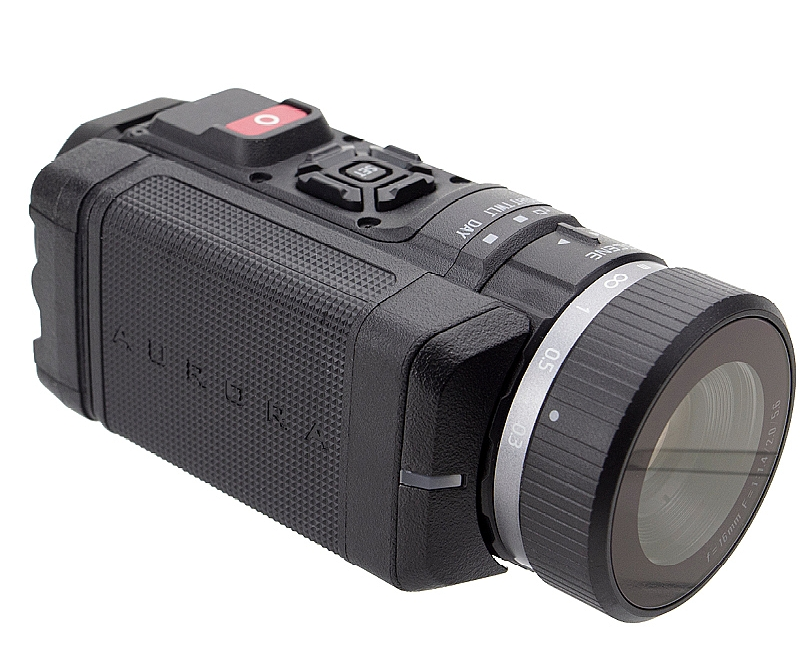

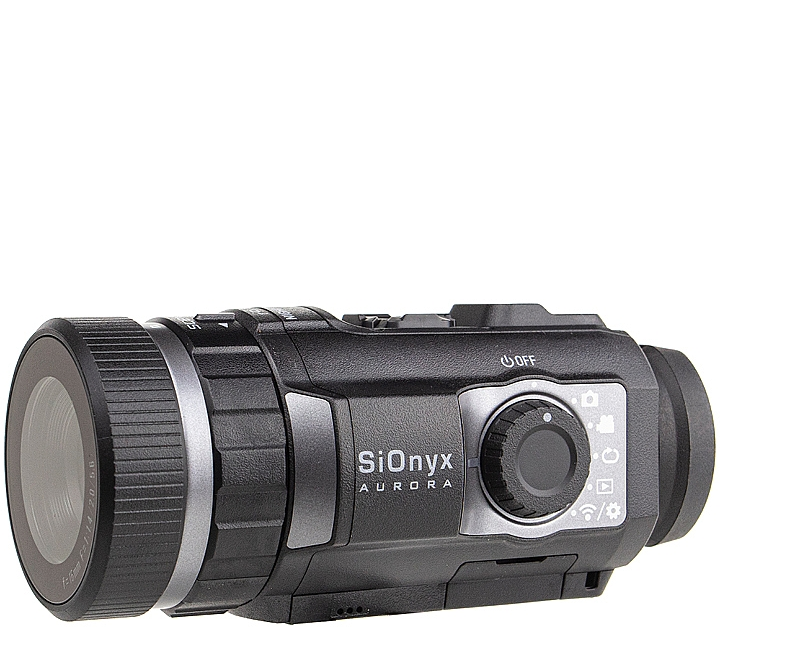

The Aurora Black is a colour night vision camera, capable of day-time, low-light and night-time recording in colour or greyscale through SiOnyx’s own patented Ultra Low-Light Sensor Technology. This technology transforms the viewing experience.
The Aurora Black is designed for fast setting changes, featuring an intuitive switch and dial set-up. The scene ring allows for a custom viewing experience for different times of day and the settings dial allows for fast operating mode changes. Users can also adjust the lens focus and diopter.
The camera has on-board recording, with up to 60 frames a second for video in HD and still photos with shutter speeds up to 1/8000th of a second. The Aurora Black also features Electronic Image Stabilisation (EIS) which helps to minimise blur and compensates for camera shake.
The device includes a variety of camera recording modes, including: burst mode, time-lapse, panoramic view, self-timer, loop mode, slo-mo (shutter control) and HDR (High Dynamic Range).
The device features on-board WiFi, meaning the Aurora Black can be remote-controlled, live-viewed and can share captured images & videos with the SiOnyx App via a smartphone or tablet.
The Aurora Black can be mounted using a Picatinny Mount (Picatinny mount sold separately unless purchasing the Aurora Black Limited Edition). The combination of the Aurora Black with the Quick Release Picatinny Rail Mount, image invert & angle settings and loop mode means you can mount the camera anywhere on your rifle (rail permitting), as well as capture photos & videos without upset.
The Aurora Black’s compact size and robust bodyshell make it the best tool for outdoor action and weighing in at less than 227 grams (under 8 ounces) make it even easier to carry. Perfect for airsoft, outdoor sports and activities, with a built-in lens protector, 6000j shock-resistance and IP67 rating for dust-resistance, splash-proof and water-resistance of up to 3 feet for 30 minutes.
What’s in the box?
- Aurora Black Camera
- USB Charge/Data Cable
- 1x Rechargeable Battery
- QR Picatinny Mount (Aurora Black Limited Edition Only)
Power
- Battery: SX-50 Lithium-Ion
- Battery Life: Up to 2 hours
- Recharge Time: 2 hours
- Recharge Via: USB 2.0 (USB-B)
Optical
- Sensor: Ultra Low-Light CMOS

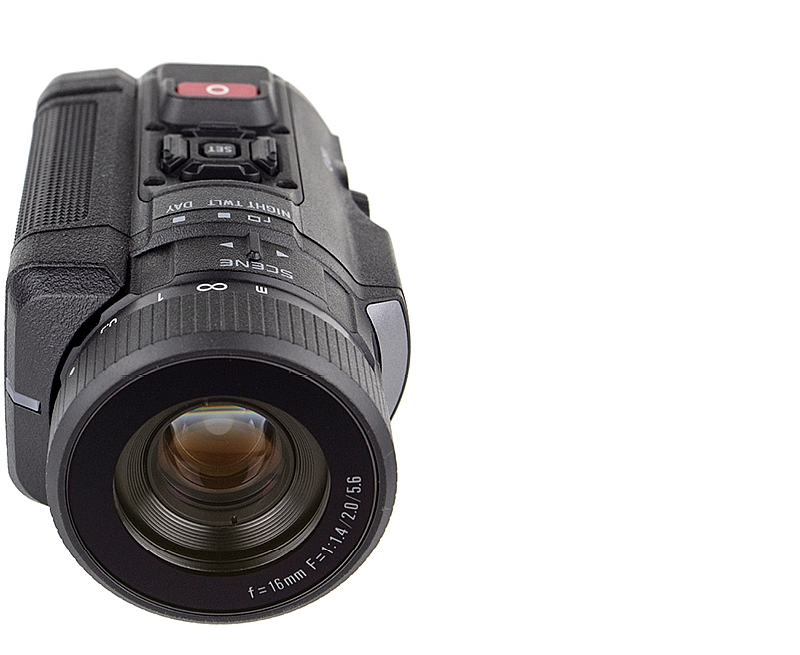

- Lens: 16mm;f/1.4 (night), f/2.0 (twilight), f/5.6(day)
- Focus: Manual & Auto
- Shutter Speed 1.5, 1.0, 1/2, 1/4, 1/7.5, 1/15, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000 & 1/8000 second
- Video Frames Per Second: 7.5, 15, 24, 30, 60
- Photo Resolution: 0.9MP
- Photo Files: Jpeg
- Video Resolution: 720p
- Video Files: .MOV
- Viewfinder: Micro OLED Display
- Display Modes: Colour, Greyscale
- Zoom: 3x
- Image Stabilisation: Yes
- HDR (High Dynamic Range): Yes
- Scene Control: Night, Twilight & Day
- Diopter Control: Yes
- Gain Control: Yes
- White Balance: Auto
Other
- Storage: Micro SD Class 10 or UHS-1; 4-32GB (not included)
- Connectivity: WiFi, USB 2.0
- Recording Modes: Burst, time-lapse, panoramic, self-timer, loop, slo-mo (via shutter speed), HDR (High Dynamic Range)
- Built-In WiFi: Yes
- SiOnyx App: iOS & Android
- Remote Access: Via SiOnyx App (photo & video transfer, live feed, control and alter device settings)
- Audio: Yes
- Date & Time Settings: Yes
- On-Screen Gallery: Yes
- Protection: IP67 (dust-tight, water-resistant: against condensation, droplets, water spray, water jets, immersion up to 3 feet for 30 minutes)
- Shock-Resistance: Tested against 5.56mm & .223 (6000 joules)
- Dimensions: 118.55 x 63.2 x 52.5 mm
- Weight: <227g (<8 oz)
- Operating Temperature: -10℃ to 40℃ at 90% humidity
