USB 2.0 A To MICRO B Data and Charging 24AWG Cable 0.3m 30cm Lead BLACK
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)

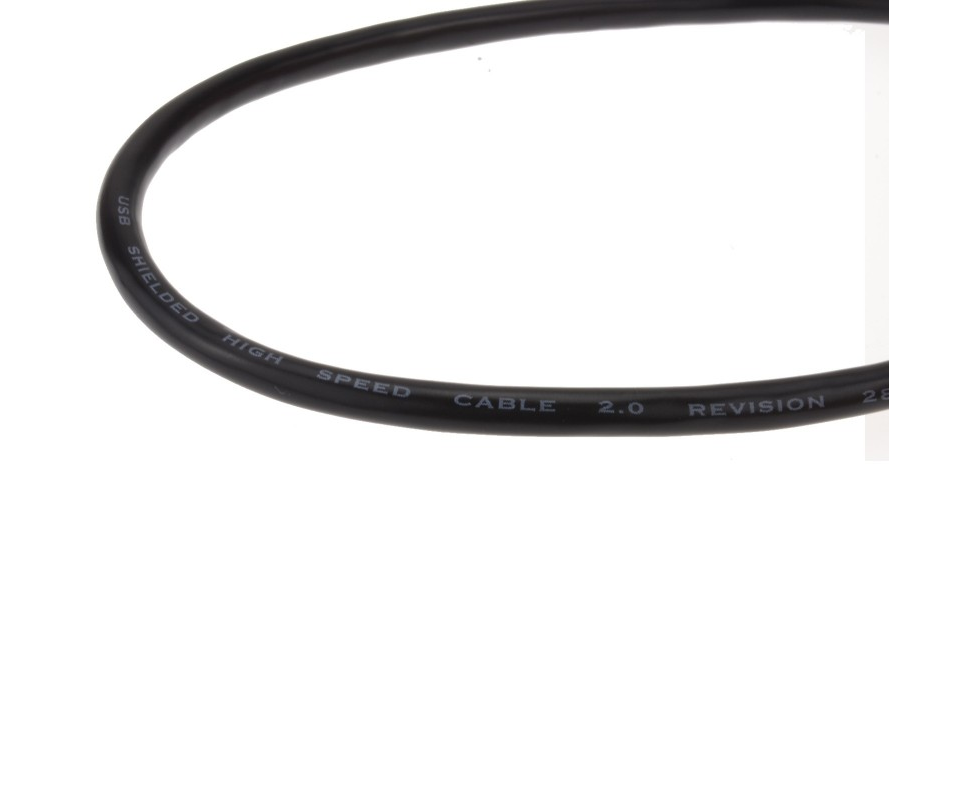

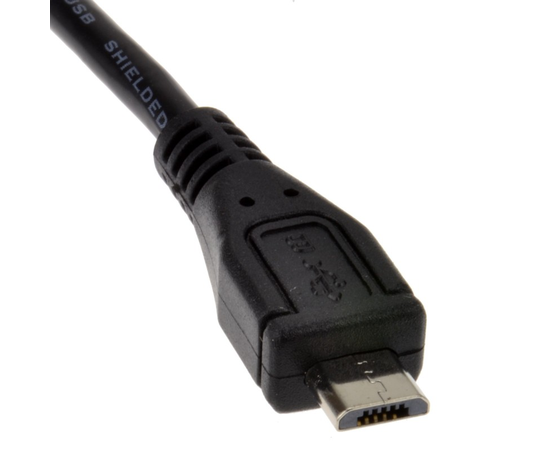

Micro USB has been announced as the new default connection for charging and data transfer method for new phones. Please check your phones compatibility as not all phones will charge with USB - some (usually older models) will only allow data transfer via USB. High quality shielded cable for upto 480Mbps transfers Colour: Black. 1 x Male A Plug to 1x Male Micro B Plug. This cable when used with appropriate software lets you manage the file contents of your cell phone.
You can backup your phone book and contacts organize your pictures and music files download pictures music ring tones and games between your computer and cell phone. Depending your phone service provider and software USB Data Cable can facilitate internet access for your computer synchronize with Microsoft Outlook or other sync applications. Compatible with mobile phones PDAs and devices using micro USB data/charging port including but not limited too: BlackBerry Curve 8900 BlackBerry Storm 9530 9500 BlackBerry Thunder 9500 Kyocera Neo E1100 Kyocera Tempo E2000 Kyocera Melo S1300 Kyocera Mako S4000 LG AX300 LG Swift AX500 LG Rhythm AX585 UX585 LG Glimmer AX830 LG Incite CT810 LG LX400 LG Lotus LX600 LG UX300 LG VX5500 LG Chocolate 3 VX8560 LG Decoy VX8610 LG enV2 VX9100 LG Dare VX9700 Motorola Q 9h Motorola RAZR VE20 Motorola RAZR2 V8 Motorola RAZR2 V9 Motorola RAZR2 V9m Motorola RAZR2 V9x Motorola V750 Adventure Motorola V950 Renegade Motorola Rapture VU30 Motorola ROKR E8 Motorola Z6c Motorola Z9 Motorola Krave ZN4 Motorola ZINE ZN5 Motorola i9 Stature Motorola i576 Motorola i776 Nokia 1606 Nokia 3606 Nokia E63 Nokia E71 Nokia E71x Nokia N78 Nokia N82 Nokia N85 Nokia N96 Samsung M220 / SPH-M220 Samsung M320 / SPH-M320 Samsung Rant SPH-M540 Samsung Highnote SPH-M630 Samsung TwoStep SCH-R470 Amazon Kindle 2
