Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution, frame rate settings, and whether you have H.265 encoding enabled or not to save space (We advise turning it on to double the capacity shown below with ease).
Finally, you can often make your storage space last a lot longer by enabling motion-detected recording rather than continuous, especially if there are long periods of no activity (to perhaps double or more these figures again).
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb, we recommend 2 Terabytes for a 4 x 4/5MP HD camera setup, as this should give you approx 2 weeks using H.265 @ 20fps and that is on continuous, not motion-detected recording.
(You may only require the full 25 frames per second on certain cameras if things are fast-moving - ie above a till)
You can also use the Hikvision online calculator to work out what works best for you specifically: https://tools.hikvision.com/ca...
(All of our hard drives come fitted and are CCTV-specific from one of the major brands)
Product Description

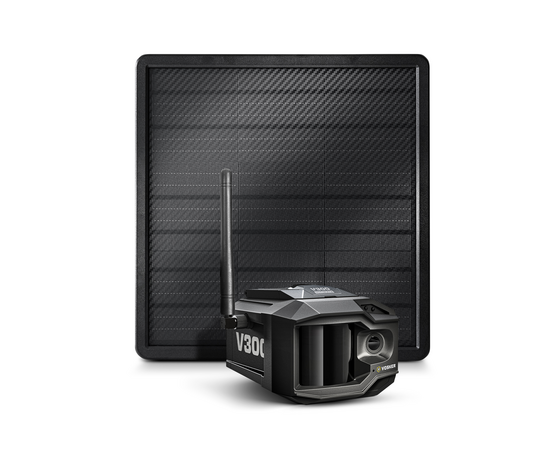

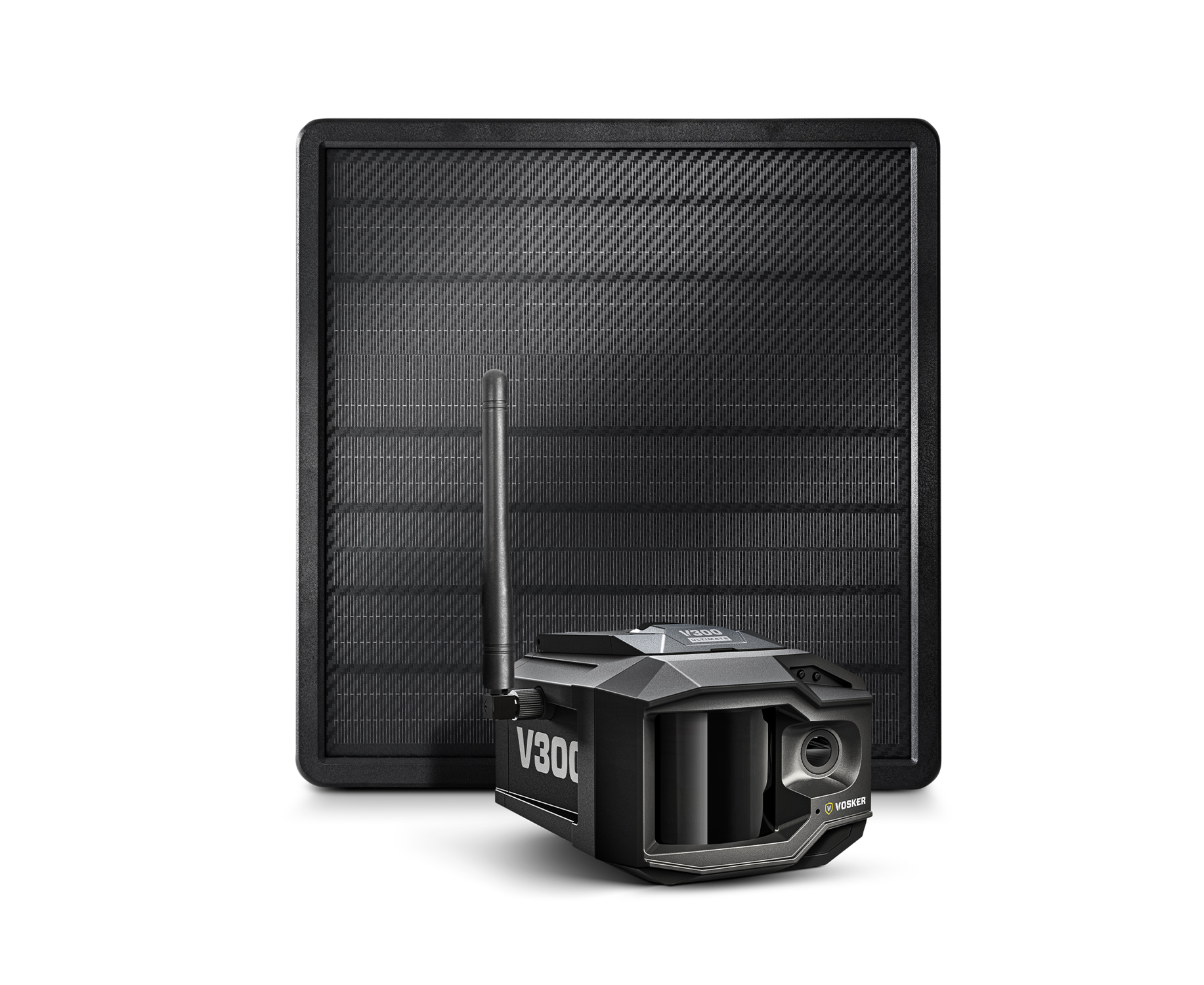

The Vosker V300 Ultimate wireless security camera provides unparalleled surveillance in areas with very little cellular reception, using a reliable 4G LTE connection to send images and videos to a connected smart device the instant the camera is triggered. Plus, with a high-capacity external solar panel included, you needn’t worry about power outages — the V300 will harness the power of the sun to provide year-round surveillance. Built-in AI technology will even differentiate between animal and human/vehicular activity, ensuring you are only informed of movement in your observation area when it really matters.
To receive photos and videos from your Vosker camera to a smartphone/tablet connected to the Vosker app, you will need to purchase a transmission plan.
Wireless Surveillance
The Vosker V300 Ultimate is, as its name suggests, the ultimate solution for those looking to enhance their surveillance capabilities in remote locations. Using reliable 4G LTE connectivity, this wireless security camera will send crystal-clear 1920×1080 images and 1080p Full HD videos to a connected smartphone or tablet the instant the camera is triggered. These images and videos are presented in full colour during the day and in crisp black and white at night.
4G LTE network connectivity works on any available UK network, making this camera ideal for observing construction sites, commercial properties, farms, holiday homes, rural properties, rental properties, car parks, marinas, vacant properties, etc. — sending notifications to your phone whenever, wherever, without using lots of data
Capture Modes
A 100 ft motion detection range and an ultra-wide 90° field of view guarantees more activity is detected and provides peace of mind when it comes to protecting your commercial or residential properties. When motion is detected, the V300 Ultimate will automatically record 1080p Full-HD videos, ensuring any movement is captured and you are always in-the-know when it comes to activity in your observation area.
Easy Activation
Setting up this intuitive wireless security camera is near-effortless and can be achieved in mere minutes. The V300 Ultimate is provided with a pre-activated SIM card to speed this process up even more. A variety of security data plans is also available, and this camera comes with a 7-day free trial of these plans to determine which plan suits your needs best. Find out more about Vosker’s transmission plans here.
Endless Surveillance

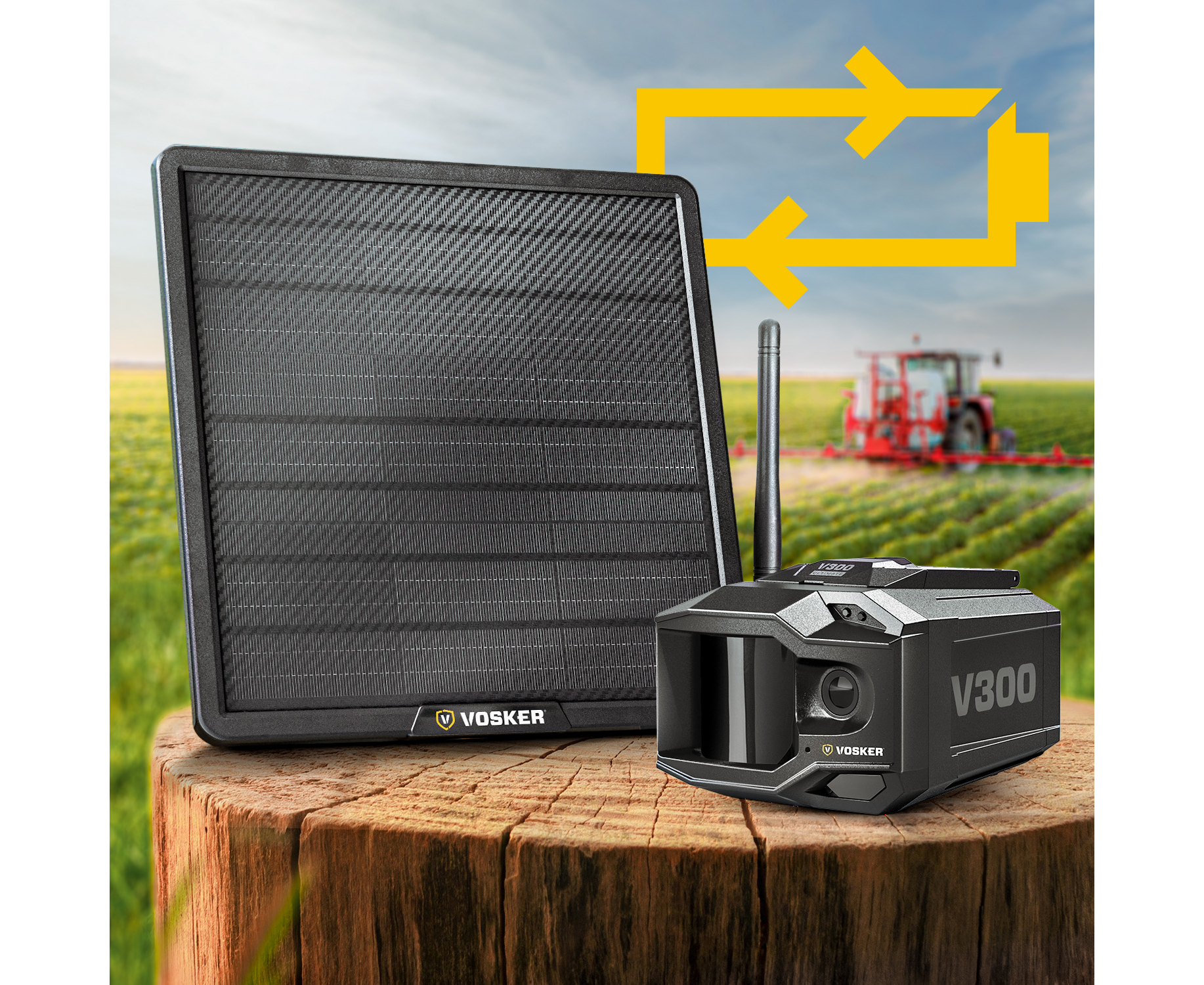

The V300 Ultimate is provided with a large external solar panel, harnessing the power of the sun to charge the internal 14,000 mAh battery and provide near-endless observation opportunities. This solar panel will achieve around 6-12 months of uninterrupted power without the need for recharging or maintenance*.
*Autonomy can vary depending on the use case. Standard seasonal use case of 6 months based on an average daily use of 20 to 25 photo alerts, 1 to 2 Full HD video downloads and 1 to 2 minutes of live streaming in high quality per day.
Vosker App
A range of convenient features to aid in the use of the V300 Ultimate can be found when you download the FREE Vosker app. These features include live view, the ability to view photos captured on the device, customise notifications to receive only the relevant alerts, and manage all devices connected to the app in one place. The app can also be accessed on a desktop or laptop.
Vosker SENSE AI Technology
Adding even more tools to your belt when it comes to surveillance, the Vosker V300 Ultimate features Vosker SENSE AI image recognition technology. Vosker Sense accurately differentiates between human disturbances and instances where wildlife wanders past the field of view, reducing the number of notifications the user will receive and ensuring unwanted alerts are kept to an absolute minimum.
Autonomous Observation
Weather resistant and provided with a new adjustable mounting arm with flat mounting plate or wood screw mounting options, this resilient wireless trail camera provides observation opportunities in hard-to-reach places, remaining unaffected by harsh weather conditions. Rain or shine, the Vosker V300 Ultimate has your back.
Keep Track of Your Camera
A built-in GPS tracker is included, so you can rest easy knowing the exact location of your V300 Ultimate in instances where the camera has been misplaced or stolen.
The Vosker V300 Ultimate Features:
- Live Audio-Video Streaming
- VOSKER SIM Card Included
- 100% Wire-Free, no Wi-Fi or Electricity
- VOSKER Data Plan Required (7-Day Free Trial)
- 1080p FULL HD Videos
- 90° Ultra-wide Angle View
- High-Capacity External Solar Panel
- Motion-Activated and Live Streaming Mode
- 4G-LTE Cellular Network
- Built-in GPS Tracker
- Removable Battery Pack (14000 mAh)
- 100 ft Motion Detection
- Weather-Resistant
- VOSKER SENSE AI Image Recognition
- Solar Charging Feature
- Outputs 12V/2A, 9V/2.6A, 6V/4A Fast Charge USB
- Built-in Battery (15000 mAh)
- Universal: charges smartphones, tablets and more
- Weather-Resistant
- Max Power: 10 Watts
| Cellular Connectivity | 4G LTE |
| GPS Tracker | Yes |
| Preactivated SIM Card | Yes |
| Power | 14,000 mAh removeable rechargeable V-LIT-B3 battery and external 15,000 mAh solar power bank. |
| External Power | USB-C |
| Vosker App | 7-day free trial of transmission plans. Vosker SENSE AI technology. Smart mobile alerts. Schedule control. |
| Video Resolution | Full HD 1080p, 15 fps |
| Live Streaming Mode | Yes |
| Video Length | 10 s |
| Photo Resolution | 1920×1080 (local), 640×360 preview resolution in app |
| Field of View | 90° |
| Date, Time & Temp. (°C/°F) Stamp | Yes (video) |

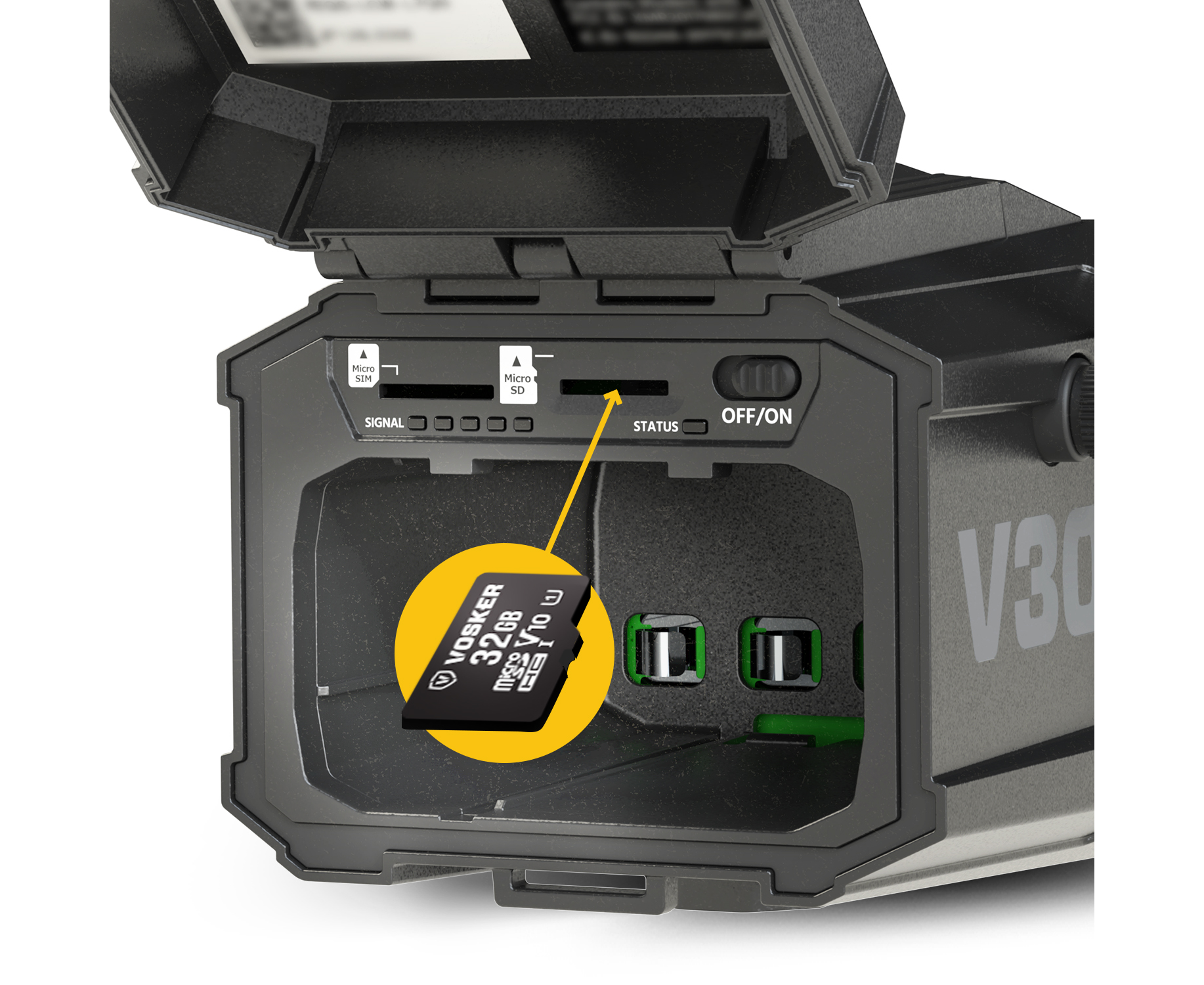

| Memory | MicroSD card 32GB (included) |
| Motion Detection Range | 30 m / <100 ft |
| Night Vision Range | 30 m / 100 ft |
| Weather Resistant | Yes |

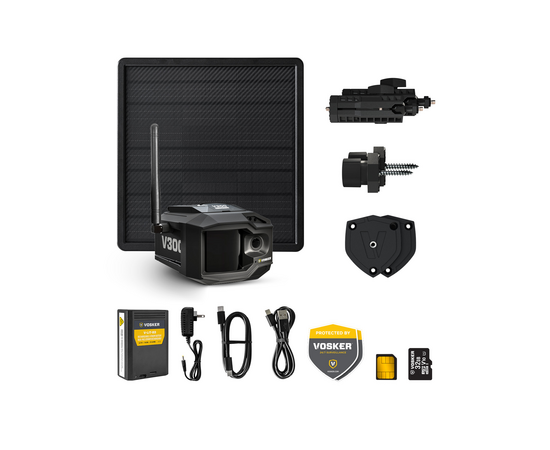

| Mounting | Mounting Arm + flat mounting plate + wood screw mounting option included. Standard 1/4″-20 tripod mount |
| Dimensions (Camera) | 3.7″ W × 5.4″ D × 3.1″ H |
| Dimensions (Solar Panel) | 10″ W × 2.2″ D × 10.6″ H |
No posts found

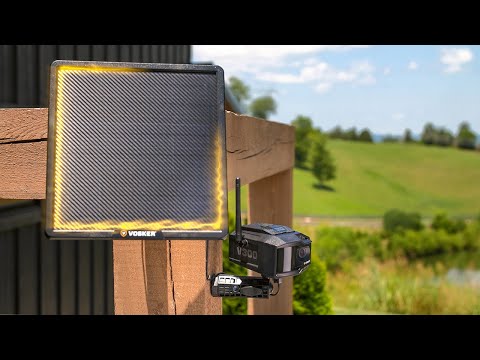

Experience the ultimate outdoor surveillance solution

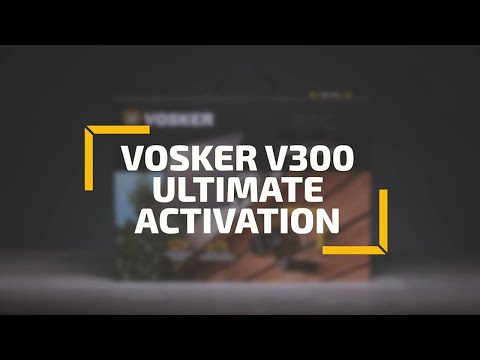

VOSKER V300 Ultimate - How to ACTIVATE and INSTALL your new outdoor cellular security camera
